• Operation Procedure Fig. 3B164 Menus for Editing (Provided with Multi-Layer T ray Feeder 2) The tab sheet may look different, depending on which options are selected. Addition of "Fdr . No." (1) When the [Add…
*2 Fdr. No.
Shown under this title are the feeder Nos.
Refer to "• Operation Procedure" (described later) for the
detailed information on how to add or delete feeder Nos.
(Fdr. Nos.).
*3 Component ID.
Displayed are the currently allocated component IDs.
Refer to "4.3.2 "Component ID List" Window" for how to
enter or delete a component ID.
*4 C, Comment, Feeder Fixed, Feeder Alternate, Fdr No.

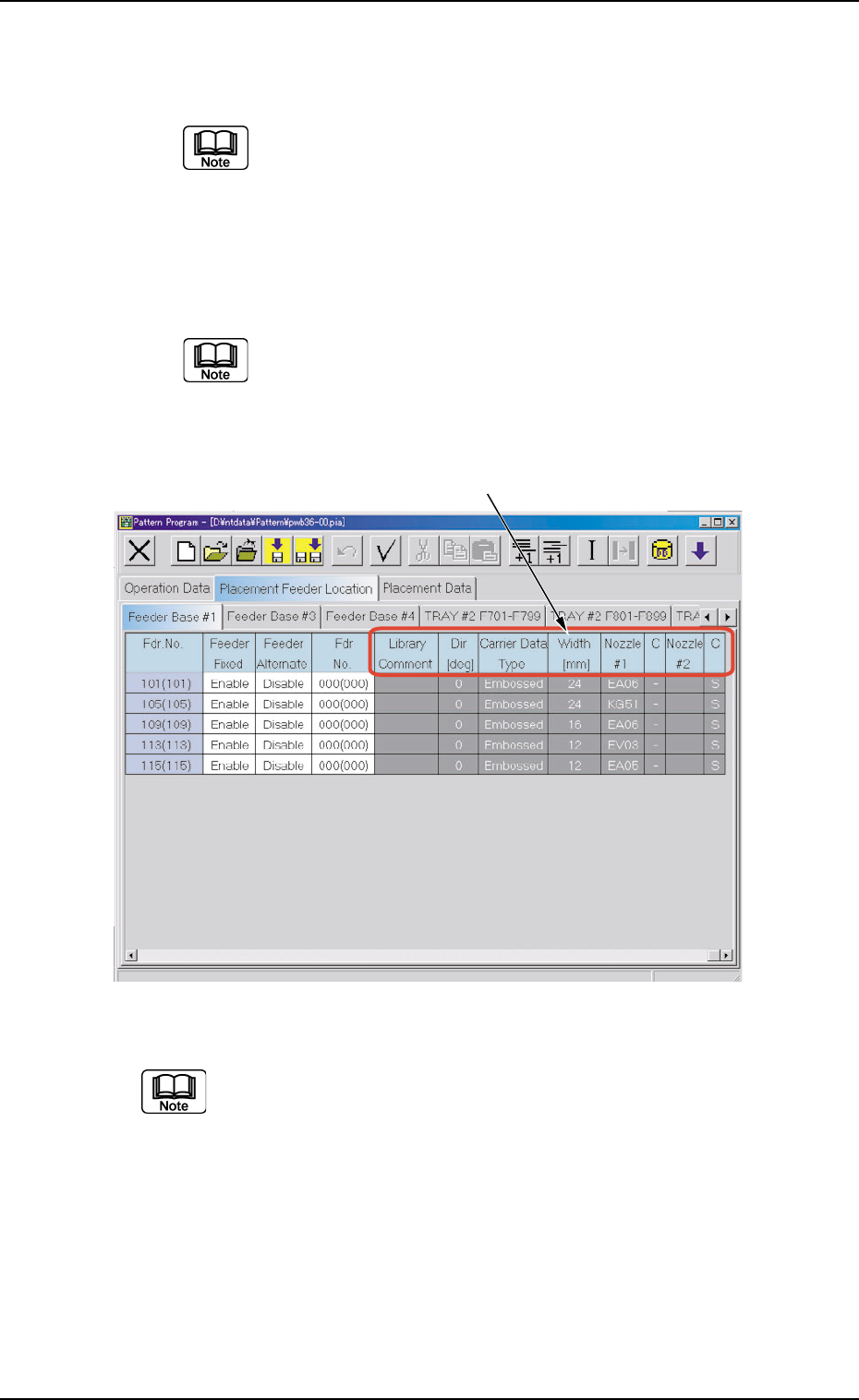

Fig. 3B163 "Feeder Base #1" Tab Sheet (Provided with Multi-Layer Tray Feeder 2)
The tab sheet may look different, depending on which options
are selected.
*5 Library Comment, Dir [deg], Carrier Data Type, Width [mm],
Nozzle #1, C, Nozzle #2, and C
Displayed are the parameters specified in the component library.
*5
0308-002 2-97 AHB01EDTP
4.3 "Placement Feeder Location" Tab
• Operation Procedure

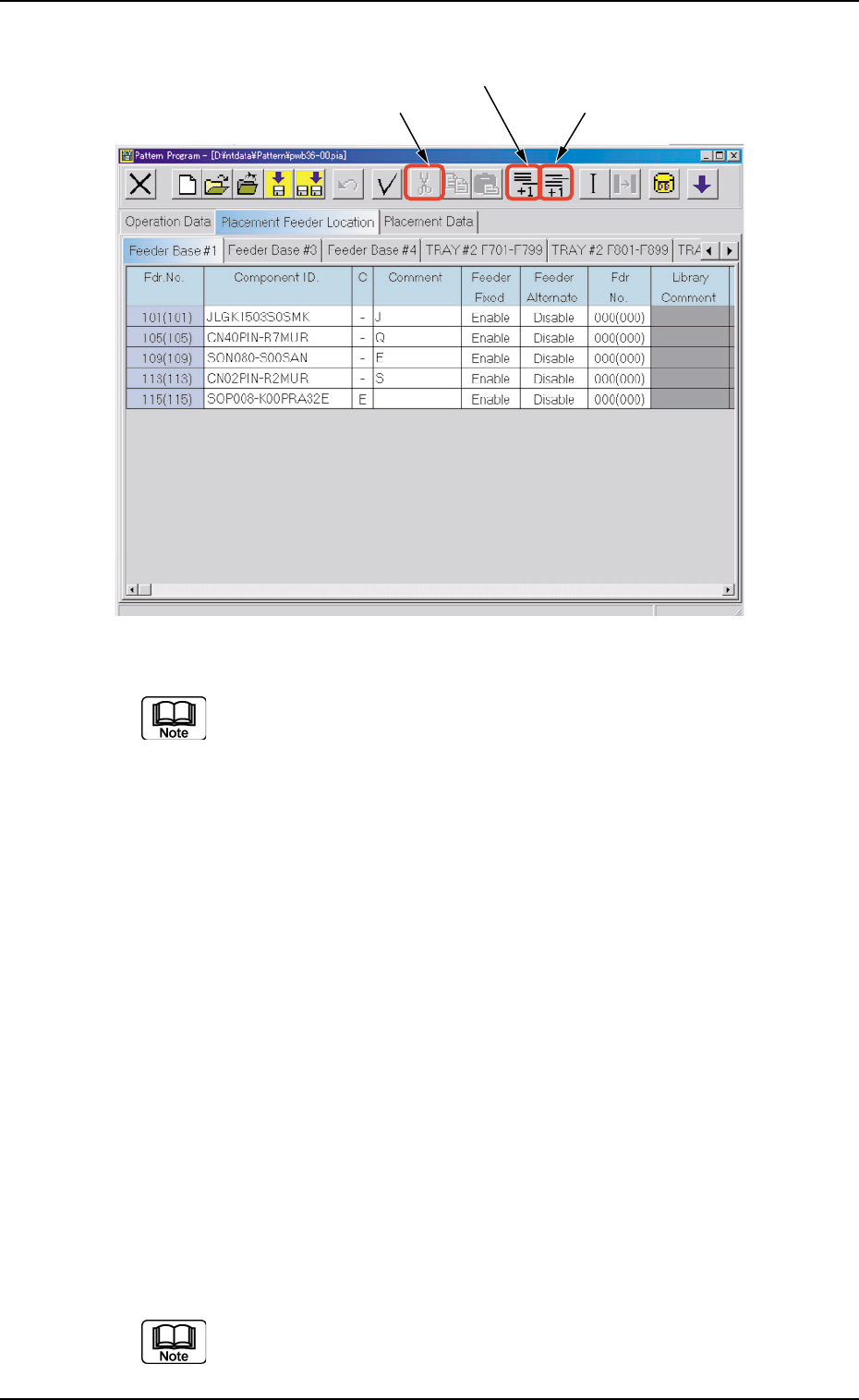

Fig. 3B164 Menus for Editing (Provided with Multi-Layer Tray Feeder 2)
The tab sheet may look different, depending on which options
are selected.
Addition of "Fdr. No."
(1) When the [Add One Line] icon is selected, a new "Fdr. No." is added
to the last line (last Fdr. No.).
Insertion of "Fdr. No."
(1) Select the position where an Fdr. No. should be inserted with the
touch screen or the pointing device.
The selected line (Fdr. No.) turns blue, indicating that it is selected.
(2) Select the [Insert One Line] icon.
A new line (Fdr. No.) is inserted at the selected line and the subse-
quent lines (Fdr. Nos.) are shifted down.
Deletion of "Fdr. No."
(1) Select the Fdr. No. to be deleted with the touch screen or the point-
ing device.
The selected line (Fdr. No.) turns blue, indicating that it is selected.
(2) Select the [Cut] icon.
The selected line (Fdr. No.) is deleted and the subsequent lines (Fdr.
Nos.) are shifted up.
Do not set any parameters for the feeder bases that are not
used. Otherwise, a data error occurs.
If parameters are set, be sure to delete them.
[Add One Line] Icon
[Cut] Icon
[Insert One Line] Icon
0308-002 2-98 AHB01EDTP
4.3 "Placement Feeder Location" Tab
4.3.2 "Component ID List" Window
• Window Layout
When the [Component ID List] icon (
) is pressed in the "Pattern
Program" window, the "Component ID List" dialog box opens.

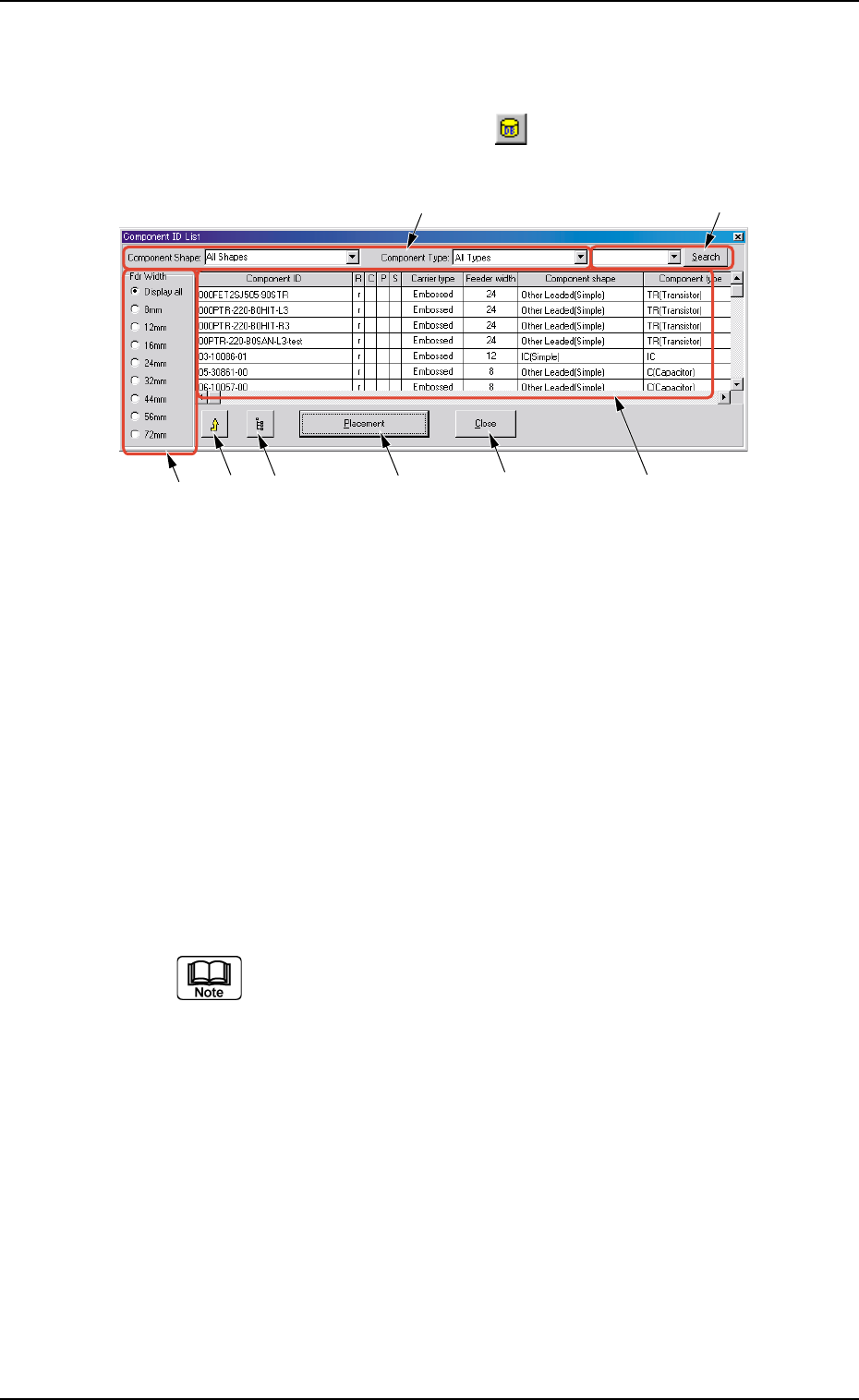

Fig. 3B165 "Component ID List" Window
• Sheet Composition
*1 Component Shape, Component Type
Enter parameters in these text boxes.
When parameters are set in the text boxes, a list of the correspond-
ing component types appears in "*6".
*2 "Fdr Width" Group Box
Select the desired option button to specify the feeder width.
*3 "Component Library" Edit Button
When pressed, this button opens the "Component Library" edit win-
dow, making it possible to edit the component library data.
Refer to "Section 3 Component Library" for the detailed in-
formation on how to edit the component library data.
*4 [Link ID Tree View] Button
Link and root IDs are arranged side by side and displayed in the
hierarchical (tree) file system.
*5 [Placement] Button
When this button is pressed, the component selected from the list
of component IDs is set in the placement feeder location data.
*6 [Close] Button
When this button is pressed, the "Component ID List" window closes.
*7 List of Component IDs
A list of component IDs is displayed.
*5 *6
*2
*3
*1
*8
*4 *7
0308-002 2-99 AHB01EDTP
