3.2.3 "Edge Data" Tab
The corresponding tab sheet appears when "Deform (Simple)" is se-
lected in the "Component shape" text box.
••
••
• Sheet Layout
When the "Edge Data" tab is pressed in the "Shape Data" tab sheet,
the following tab sheet appears.

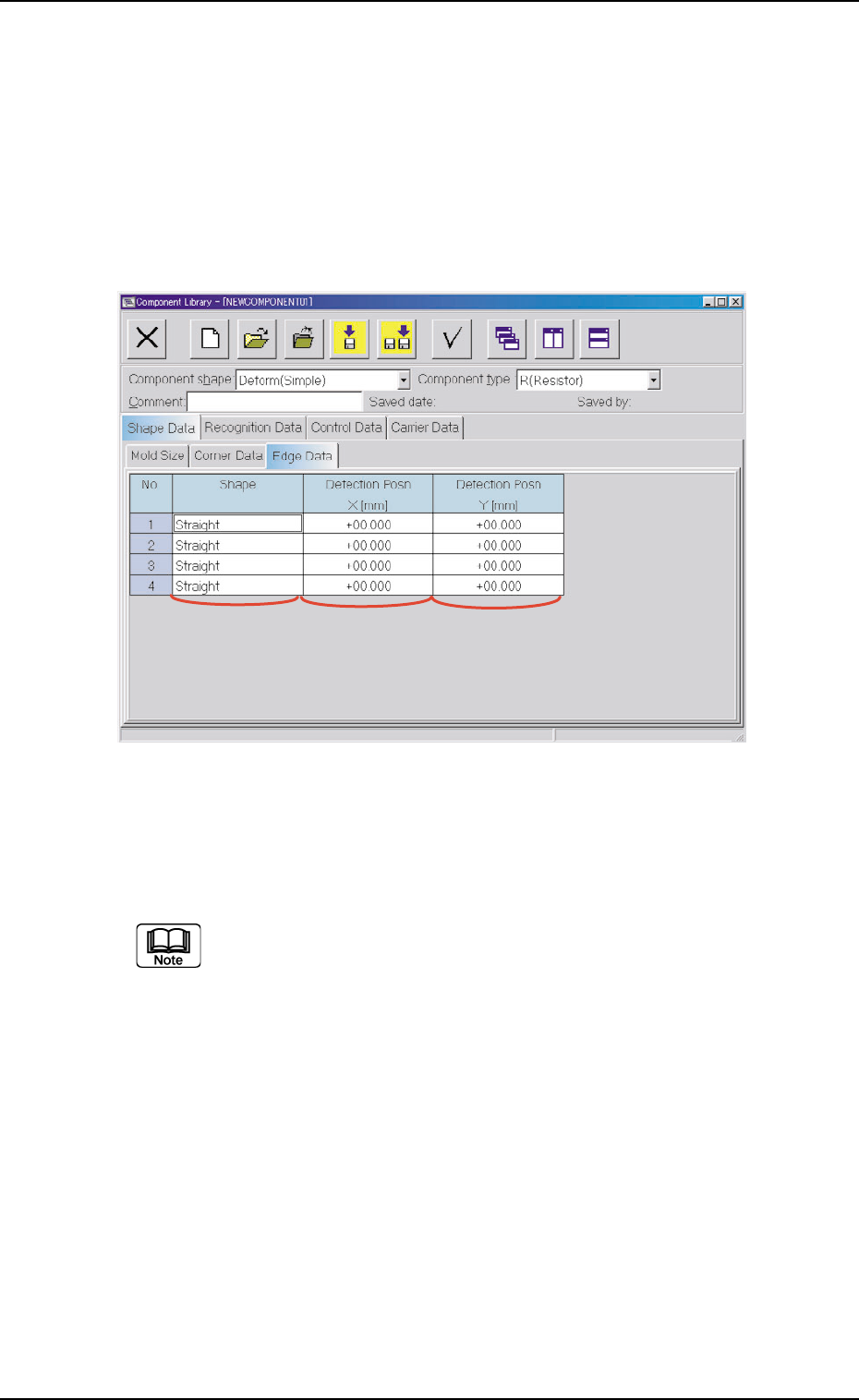

Fig. 3C15 "Edge Data" Tab Sheet ("Deform (Simple)" Selected)
••
••
• Sheet Composition
Each parameter is displayed or can be entered.
Refer to "4.1.3 Basic Usage of Text Boxes" in "Section 2" for the
detailed information on how to enter parameters.
*1 Shape, *2 Detection Posn X [mm], *3 Detection Posn Y [mm]
0206-003 3-19
3.2 "Shape Data" Tab
*1
*2
*3
AHB01EDTP
3.2.4 "Linear Edge Data" Tab
The corresponding tab sheet appears when "Deform (Complex)" is se-
lected in the "Component shape" text box.
••
••
• Sheet Layout
When the "Linear Edge Data" tab is pressed in the "Shape Data" tab
sheet, the following tab sheet appears.

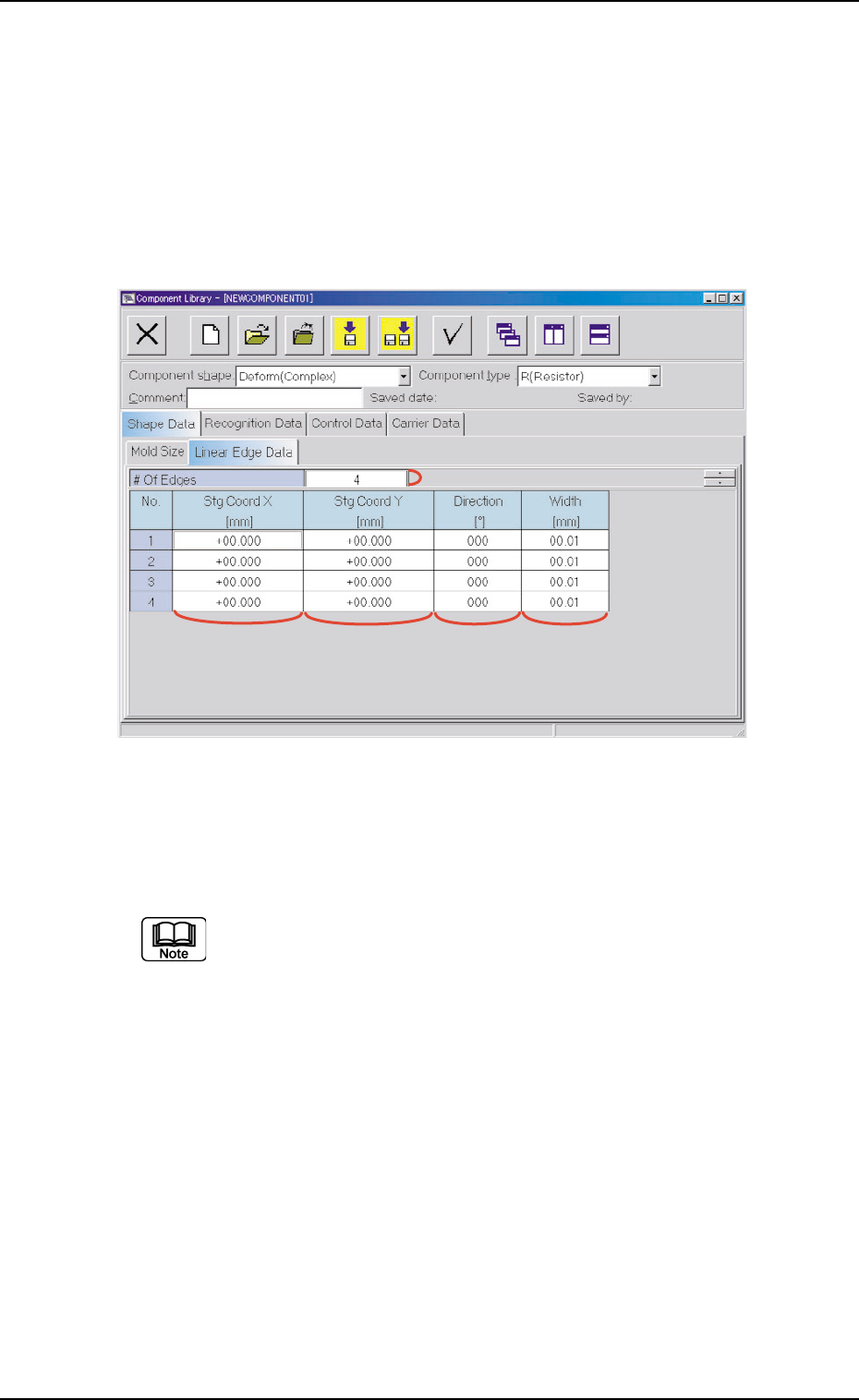

Fig. 3C16 "Linear Edge Data" Tab Sheet ("Deform (Complex)" Selected)
••
••
• Sheet Composition
Each parameter is displayed or can be entered.
Refer to "4.1.3 Basic Usage of Text Boxes" in "Section 2" for the
detailed information on how to enter parameters.
*1 # of Edges, *2 Stg Coord X [mm], *3 Stg Coord Y [mm],
*4 Direction [
°°
°°
°], *5 Width [mm]
0206-003 3-20
3.2 "Shape Data" Tab
*1
*2
*3
*4
*5
AHB01EDTP
3.2.5 "Lead Data" Tab (Simple Shape)
The corresponding tab sheet appears when "IC (Simple)", "Connector
(Simple)", or "Other Leaded (Simple)" is selected in the "Component
shape" text box.
••
••
• Sheet Layout
When the "Lead Data" tab is pressed in the "Shape Data" tab sheet,
the following tab sheet appears.

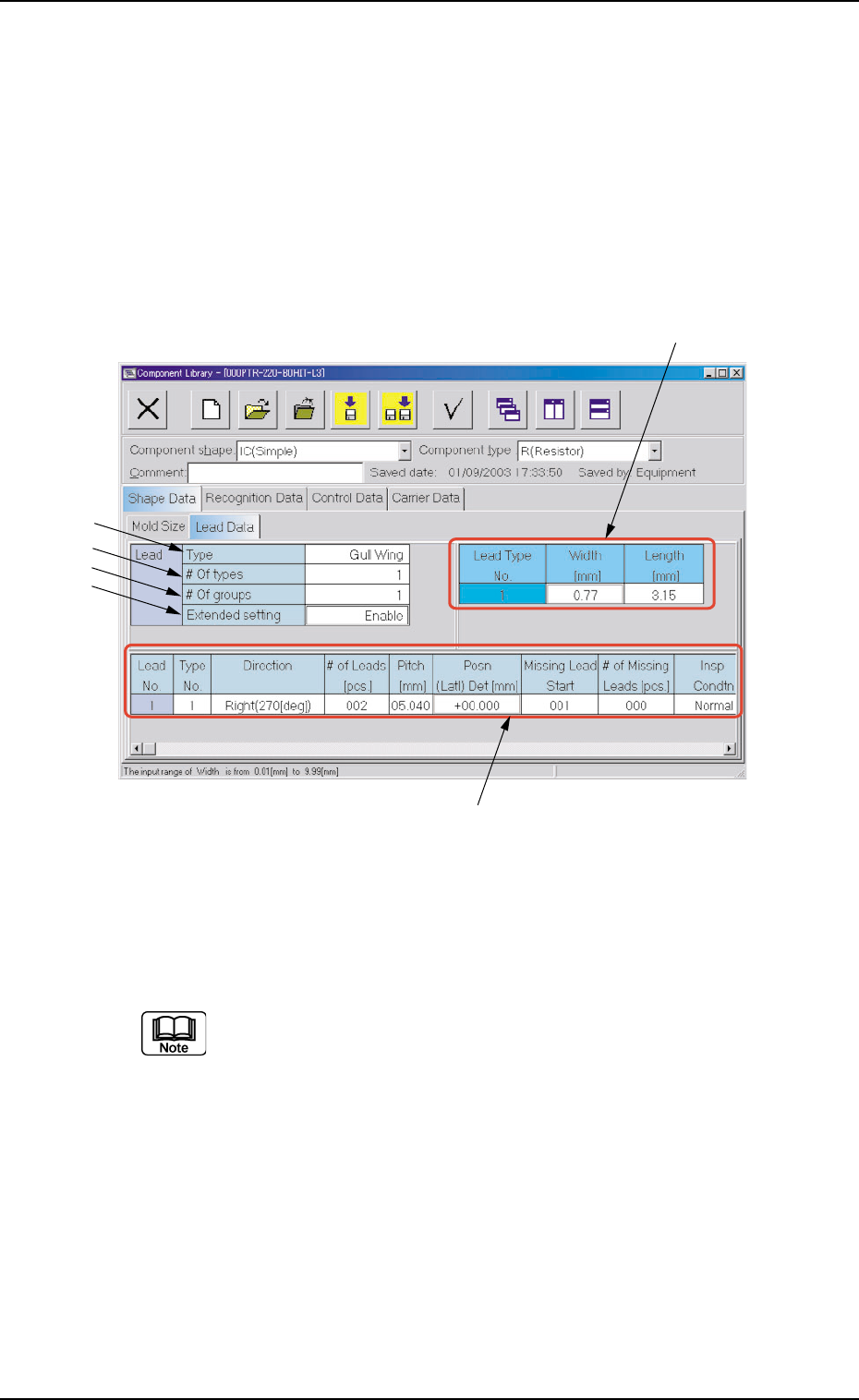

Fig. 3C17 "Lead Data" Tab Sheet ("IC (Simple)" Selected)
••
••
• Sheet Composition
Each parameter is displayed or can be entered.
Refer to "4.1.3 Basic Usage of Text Boxes" in "Section 2" for the
detailed information on how to enter parameters.
0308-003 3-21
