AHB01EDTP
0308-003 3-26
3.2 "Shape Data" Tab
(2) Component shape : Connector (Complex)
*1 Type
Different items will be displayed in "*5", depending on which type is
selected in this text box.
Standard
"Width [mm]" and "Length [mm]" appear in "*5".
Electd
"Shape", "Width [mm]", and "Length [mm]" appear in "*5".
Others
"Width [mm]", "Length [mm]", and "Full Length [mm]" appear in "*5".
*2 # of Types, *3 # of Groups
*4 Extended setting
Different items will be displayed in "*6", depending on which param-
eter ("Disable" or "Enable") is set in this text box.
Disable
"Type No.", "Direction [deg]", "# of Leads [pcs.]", "Pitch [mm]", "Center
Posn (Latl) Det [mm]", and "Top Posn (Long) Det [mm]" appear in
"*6".
Enable
"Type No.", "Direction [deg]", "# of Leads [pcs.]", "Pitch [mm]", "Center
Posn (Latl) Det [mm]", "Top Posn (Long) Det [mm]", "Missing Lead
Start", "# of Missing Leads [pcs.]", and "Insp Condtn" appear in "*6".
*5 Lead Type Data
Shape, Width [mm], Length [mm], Full Length [mm]
*6 Lead Group Data
Type No., Direction [deg], # of Leads [pcs.], Pitch [mm], Cen-
ter Posn (Latl) Det [mm], Top Posn (Long) Det [mm], Missing
Lead Start, # of Missing Leads [pcs.], and Insp Condtn
AHB01EDTP
0308-004 3-27
3.2 "Shape Data" Tab
(3) Component shape: Other Leaded (Complex)
*1 Type
Different items will be displayed in "*5", depending on which type is
selected in this text box.
Standard
"Width [mm]" and "Length [mm]" appear in "*5".
Electd
"Shape", "Width [mm]", and "Length [mm]" appear in "*5".
Others
"Width [mm]", "Length [mm]", and "Full Length [mm]" appear in "*5".
*2 # of Types, *3 # of Groups
*4 Extended setting
Different items will be displayed in "*6", depending on which param-
eter ("Disable" or "Enable") is set in this text box.
Disable
"Type No.", "Direction [deg]", "# of Leads [pcs.]", "Pitch [mm]", "Center
Posn (Latl) Det [mm]", and "Top Posn (Long) Det [mm]" appear in
"*6".
Enable
"Type No.", "Direction [deg]", "# of Leads [pcs.]", "Pitch [mm]", "Center
Posn (Latl) Det [mm]", "Top Posn (Long) Det [mm]", "Missing Lead
Start", "# of Missing Leads [pcs.]", and "Insp Condtn" appear in "*6".
*5 Lead Type Data
Shape, Width [mm], Length [mm], Full Length [mm]
*6 Lead Group Data
Type No., Direction [deg], # of Leads [pcs.], Pitch [mm], Cen-
ter Posn (Latl) Det [mm], Top Posn (Long) Det [mm], Missing
Lead Start, # of Missing Leads [pcs.], and Insp Condtn
AHB01EDTP
3.2.7 "Electrical Contact Data" Tab
The corresponding tab sheet appears when "BGA/CSP" is selected in
the "Component shape" text box.
••
••
• Sheet Layout
When the "Electrical Contact Data" tab is pressed in the "Shape Data"
tab sheet, the following tab sheet appears.

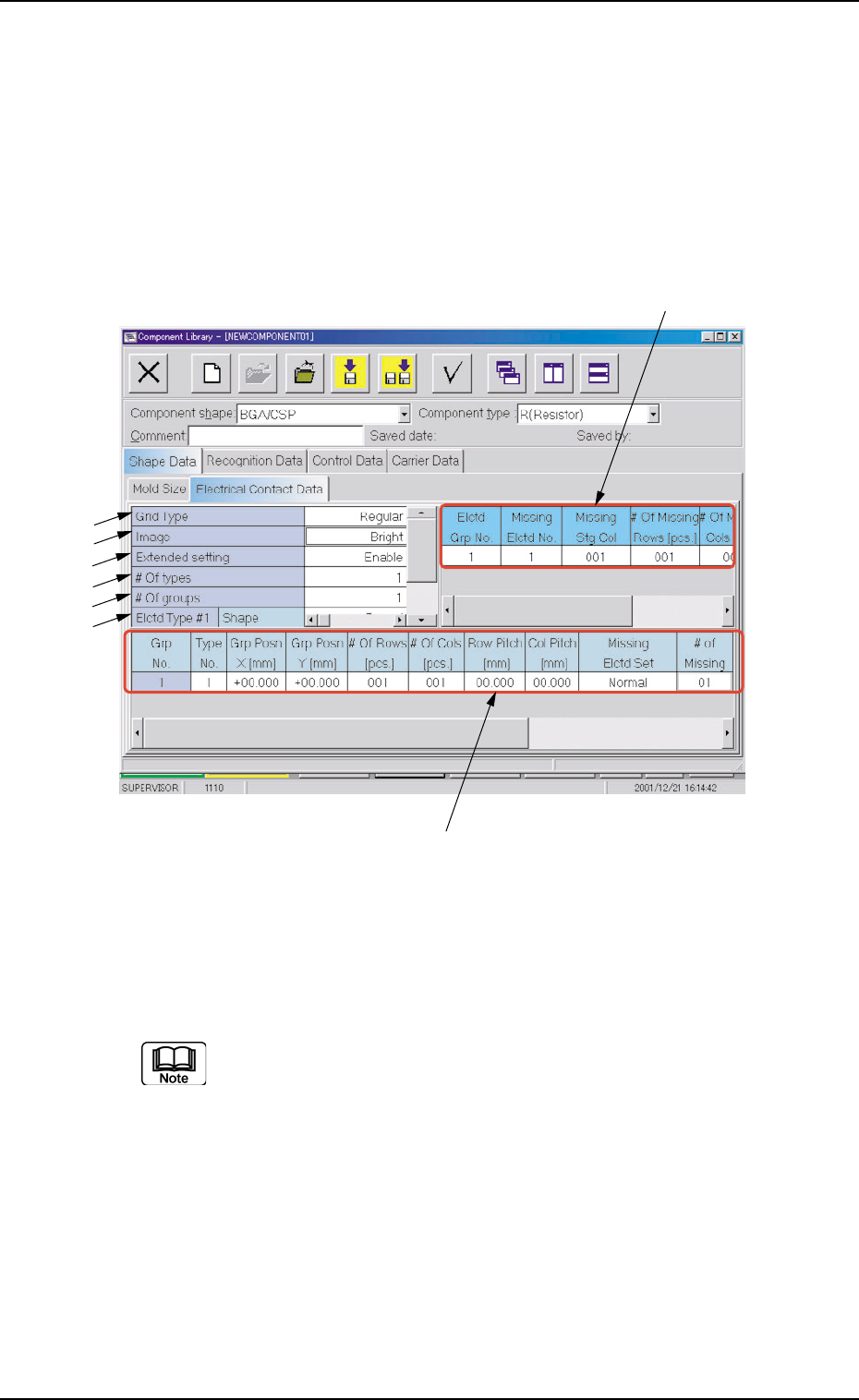

Fig. 3C19 "Electrical Contact Data" Tab Sheet ("BGA/CSP" Selected)
••
••
• Sheet Composition
Each parameter is displayed or can be entered.
Refer to "4.1.3 Basic Usage of Text Boxes" in "Section 2" for the
detailed information on how to enter parameters.
*1 Grid Type, *2 Image
0206-002 3-28
3.2 "Shape Data" Tab
*8
*7
*1
*2
*3
*4
*5
*6
