2.1.4.2 "Head Offset" Tab

• Sheet Layout

When the "Head Offset" tab is pressed in the "Head" tab sheet, the

following tab sheet appears.

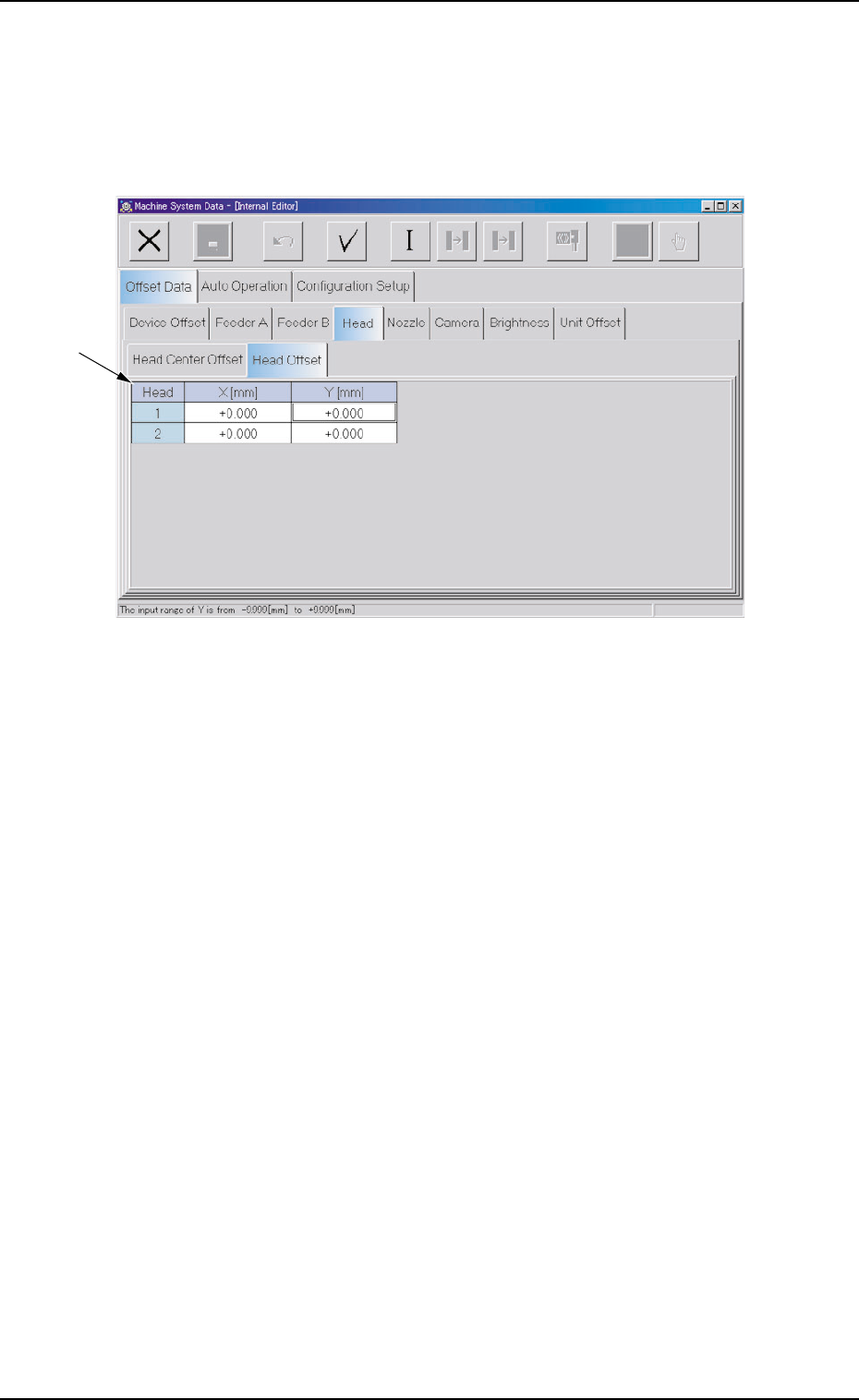

Fig. 3E36 "Head Offset" Tab Sheet

• Sheet Composition

*1 Offset Items

Set the following offset values.

Fixed camera A1 Head (1 and 2)

X [mm] (Horizontal) and Y [mm] (Vertical)

This offset data is used to adjust the positional deviations compared

with the design dimensions representing the center of the compo-

nent recognition camera viewed from the P.C.B. positioning X coor-

dinate.

2.1 "Offset Data" Tab

0308-004 5-35 AHB01EDTP

2.1.5 "Nozzle" Tab

• Sheet Layout

When the "Nozzle" tab is pressed in the "Offset Data" tab sheet, the

following tab sheet appears.

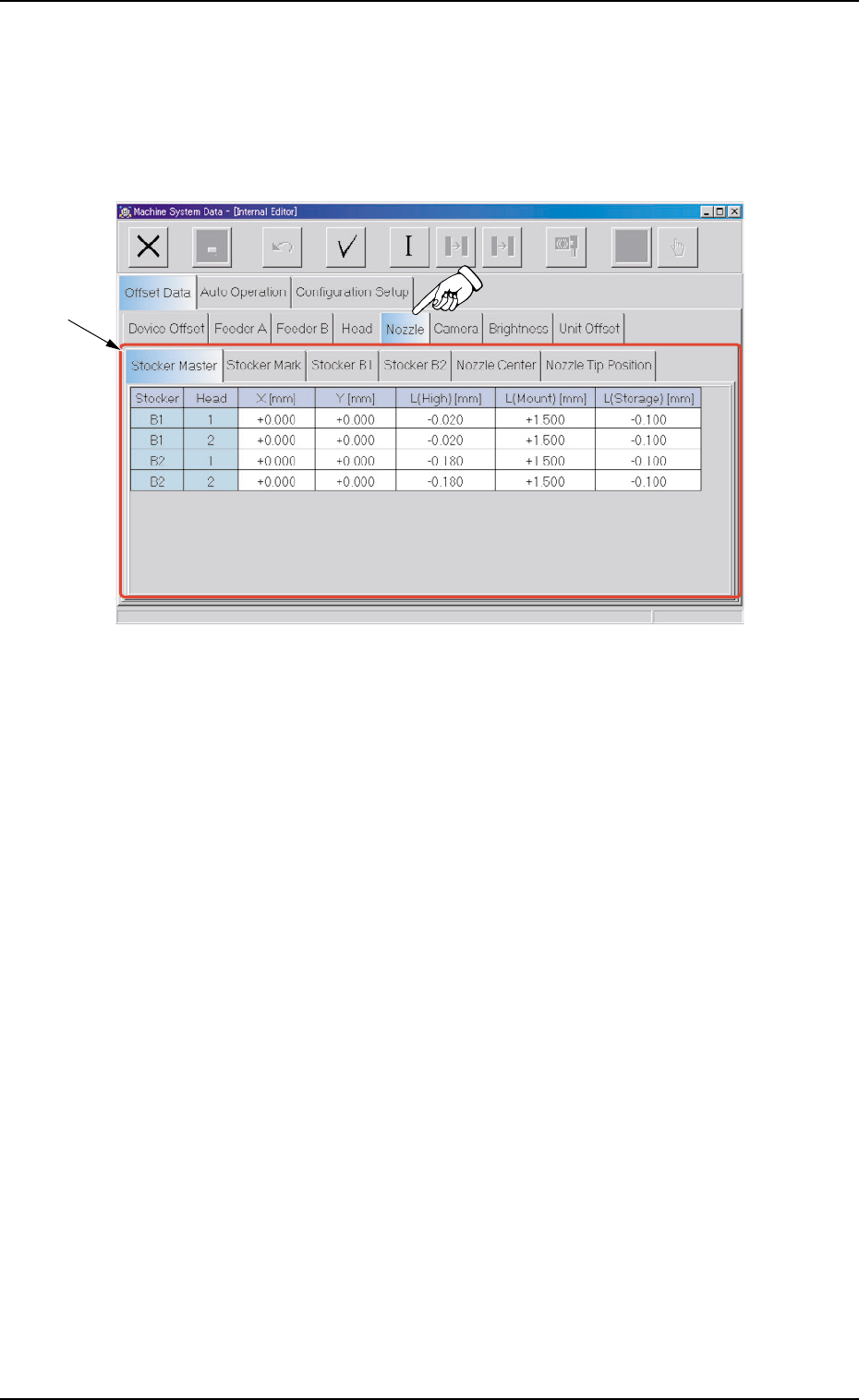

Fig. 3E37 "Nozzle" Tab Sheet

• Sheet Composition

*1 Tabs and Tab Sheets

The "Nozzle" tab sheet is provided with the following 6 tabs. When

each tab is pressed, the corresponding tab sheet appears.

2.1 "Offset Data" Tab

0308-004 5-36 AHB01EDTP

Table 3E7

Tabs Description

Stocker Master (Not Available)

The corresponding tab sheet enables the operator to set the offset

data for adjustment of positional deviations compared with the design

dimensions of the nozzle stocker unit position (viewed from the P.C.B.

positioning reference).

Stocker Mark The corresponding tab sheet enables the operator to calculate the

positional deviations compared with the design dimensions of the

nozzle stocker unit position (viewed from the P.C.B. positioning refer-

ence) through recognition operations on Marks #1 and #2 on the up-

per surface of the nozzle stocker bases.

Stocker B1 The corresponding tab sheet enables the operator to set the offset

Stocker B2 data for adjustment of the positional deviations compared with the

design dimensions (viewed from the P.C.B. positioning reference) for

each individual addresses (1 through 10) of Stocker B1 or B2.

Nozzle Center The corresponding tab sheet enables the operator to set the offset

data for adjustment of the deviations between the head rotational center

and the nozzle ends (the center of the diffusion plate).

Nozzle Tip Position The corresponding tab sheet enables the operator to set the offset

data for adjustment of the positional deviations between the nozzle

tips (nozzles #1 through #6) on Heads #1 and #2 and the head rota-

tional centers.

0206-003 5-37 AHB01EDTP
