2. Pattern Program
2.1 Types of P.C.B.’s and Required Data
The following shows typical examples (applications) of each data.
Refer to the examples for creation of a pattern program.
Marks in "Required Data"
: This means that you must refer to the description of the
pattern program data and create the data correctly.
: This means that you must refer to the description of the
pattern program data and set "Disable" for the pertinent
functions.

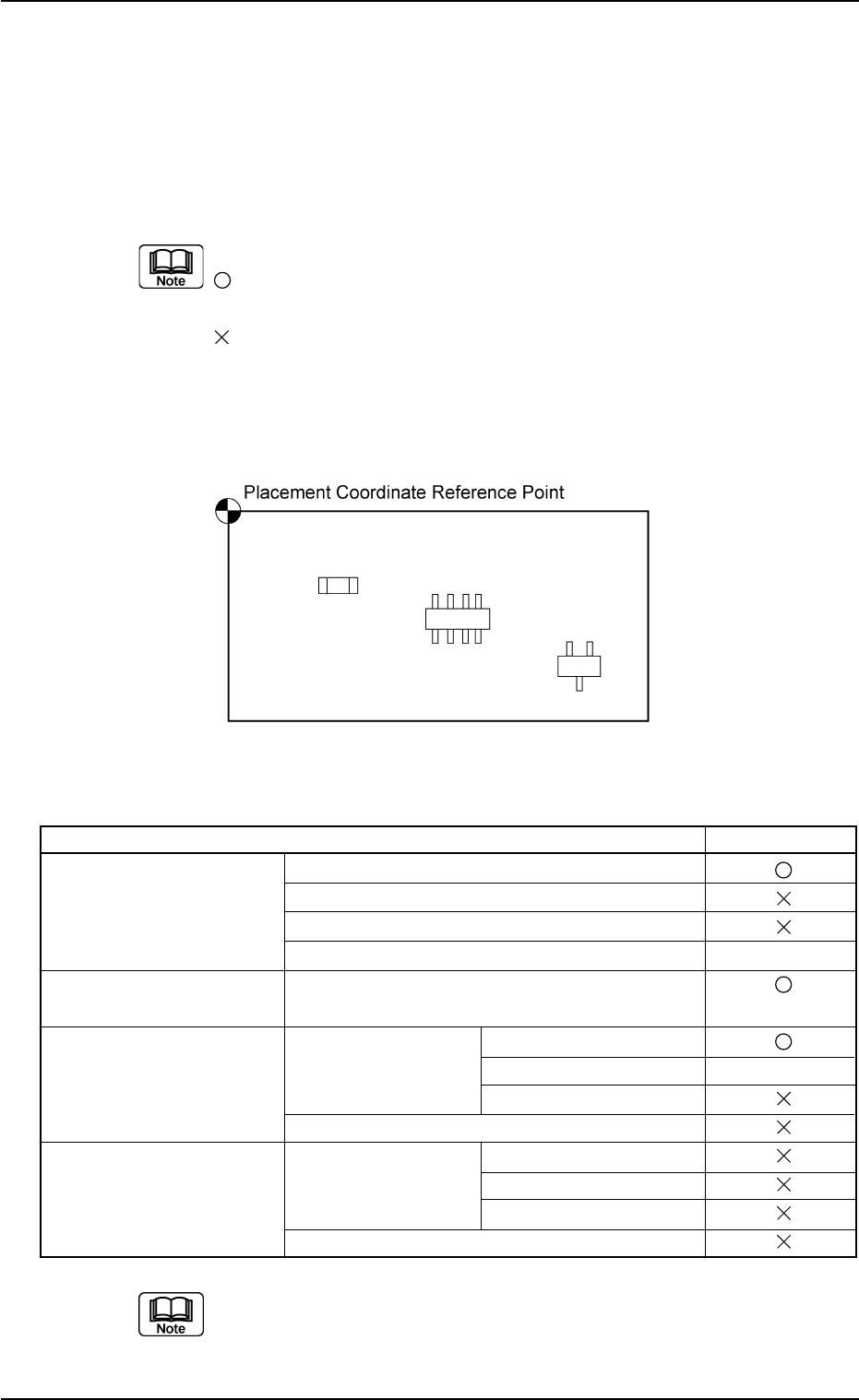

(1) Single Pattern
Fig. 3B2
List of Required Data Table 3B10
Pattern Program Required Data
Operation Data P.C.B. Data
P.C.B. Recognition Data
P.C.B. Recognition Mark Data
Setup Data Note (a)
Placement Feeder Base #1, #3, #4,
Feeder Location Vibratory Stick #1, #2, #3
Placement Data U1 Placement Data (P) Placement Data (P)
Unit Control Note (b)
Unit P.C.B. B.B.R.
Placement Data (O)
Placement Data Un Placement Data (P) Placement Data (P)
Unit Control
Unit P.C.B. B.B.R.
Placement Data (O)
(a) Specify these parameters (data) for automatic adjustment
of the conveyor width.
(b) Specify these parameters (data) according to the situational
changes.
0206-002 2-6 AHB01EDTP
2. Pattern Program

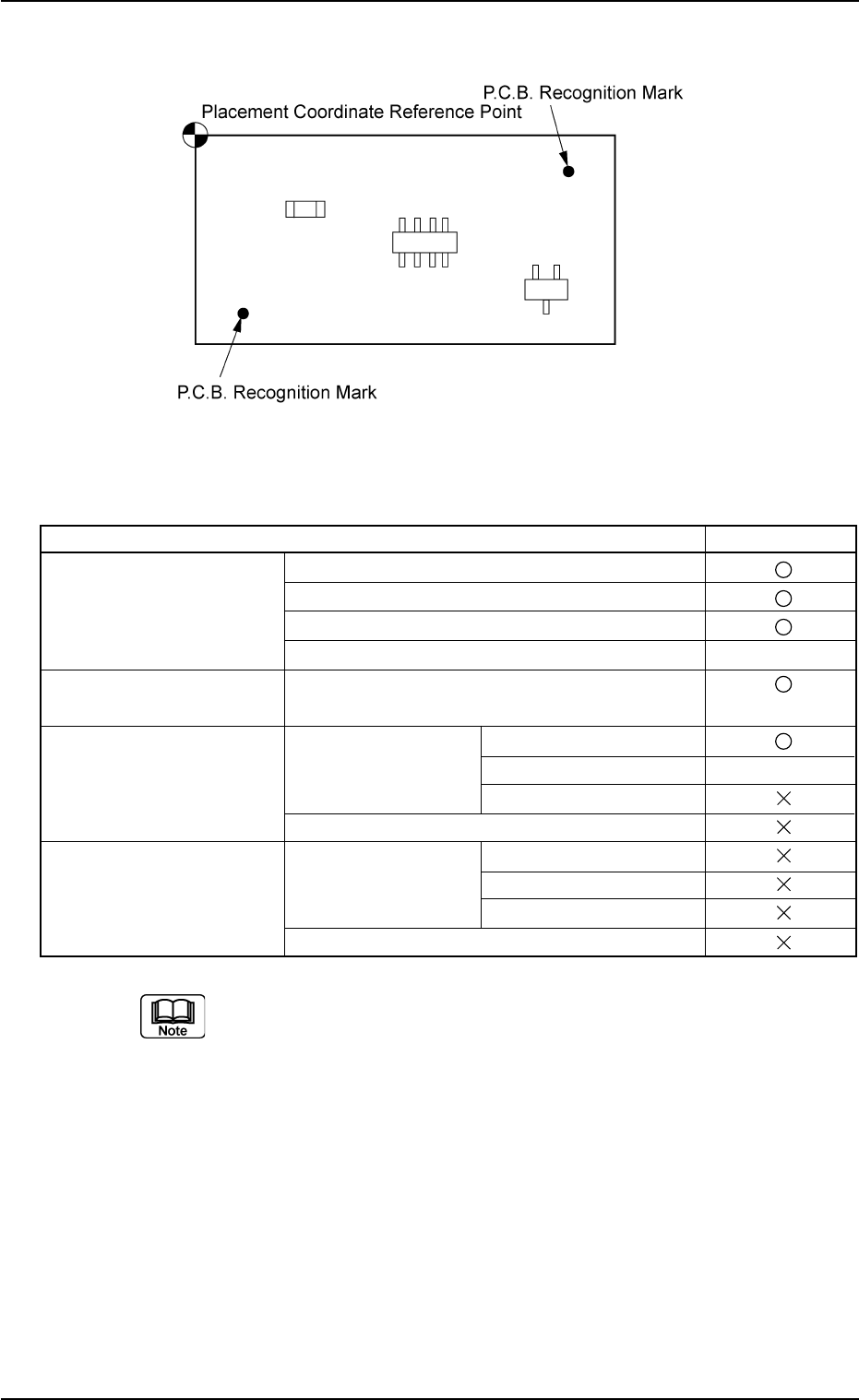

(2) Single Pattern (P.E.C. Recognition mode Global)
Fig. 3B3
List of Required Data Table 3B11
Pattern Program Required Data
Operation Data P.C.B. Data
P.E.C. Recognition Data
P.E.C. Recognition Mark Data
Setup Data Note (a)
Placement Feeder Base #1, #3, #4,
Feeder Location Vibratory Stick #1, #2, #3
Placement Data U1 Placement Data (P) Placement Data (P)
Unit Control Note (b)
Unit P.C.B. B.B.R.
Placement Data (O)
Placement Data Un Placement Data (P) Placement Data (P)
Unit Control
Unit P.C.B. B.B.R.
Placement Data (O)
(a) Specify these parameters (data) for automatic adjustment
of the conveyor width.
(b) Specify these parameters (data) according to the situational
changes.
0206-002 2-7 AHB01EDTP
2.1 Types of P.C.B.’s and Required Data
(3) Repetitive Pattern
Fig. 3B4
List of Required Data Table 3B12
Pattern Program Required Data
Operation Data P.C.B. Data
P.E.C. Recognition Data
P.E.C. Recognition Mark Data
Setup Data Note (a)
Placement Feeder Base #1, #3, #4,
Feeder Location Vibratory Stick #1, #2, #3
Placement Data U1 Placement Data (P) Placement Data (P)
Unit Control Note (b)
Unit P.C.B. B.B.R.
Placement Data (O)
Placement Data Un Placement Data (P) Placement Data (P)
Unit Control
Unit P.C.B. B.B.R.
Placement Data (O)
(a) Specify these parameters (data) for automatic adjustment
of the conveyor width.
(b) Specify these parameters (data) according to the situational
changes.
0206-002 2-8
AHB01EDTP
