2 . 2 "Patt. Prgm Manage. Dt" T ab The corresponding tab sheet enables the operator to view the summed pattern program management data related to each individual pattern programs. • Sheet Layout When the "…
2.1 "Manage Dt." Tab
01 12-001 4-5 AHB01EDTP
*5 [Comment] Button
The "Comment" window opens.
A comment can be entered for "Type #2"
*6 "File Information (Type #2)" Pane
This pane displays the clear date & time and the comment of "Man-
agement Data (Type #2)".
*7 [Clear] Button
When this button is pressed, all data of "Management Data (Type
#2)" is cleared and the clear date & time is updated.
*8 [Close] Button
When this button is pressed, the "Management Data" window closes.
2.2 "Patt. Prgm Manage. Dt" Tab
The corresponding tab sheet enables the operator to view the summed
pattern program management data related to each individual pattern
programs.
• Sheet Layout
When the "Patt. Prgm Manage. Dt." tab is pressed in the "Management
Data" window, the following tab sheet appears.

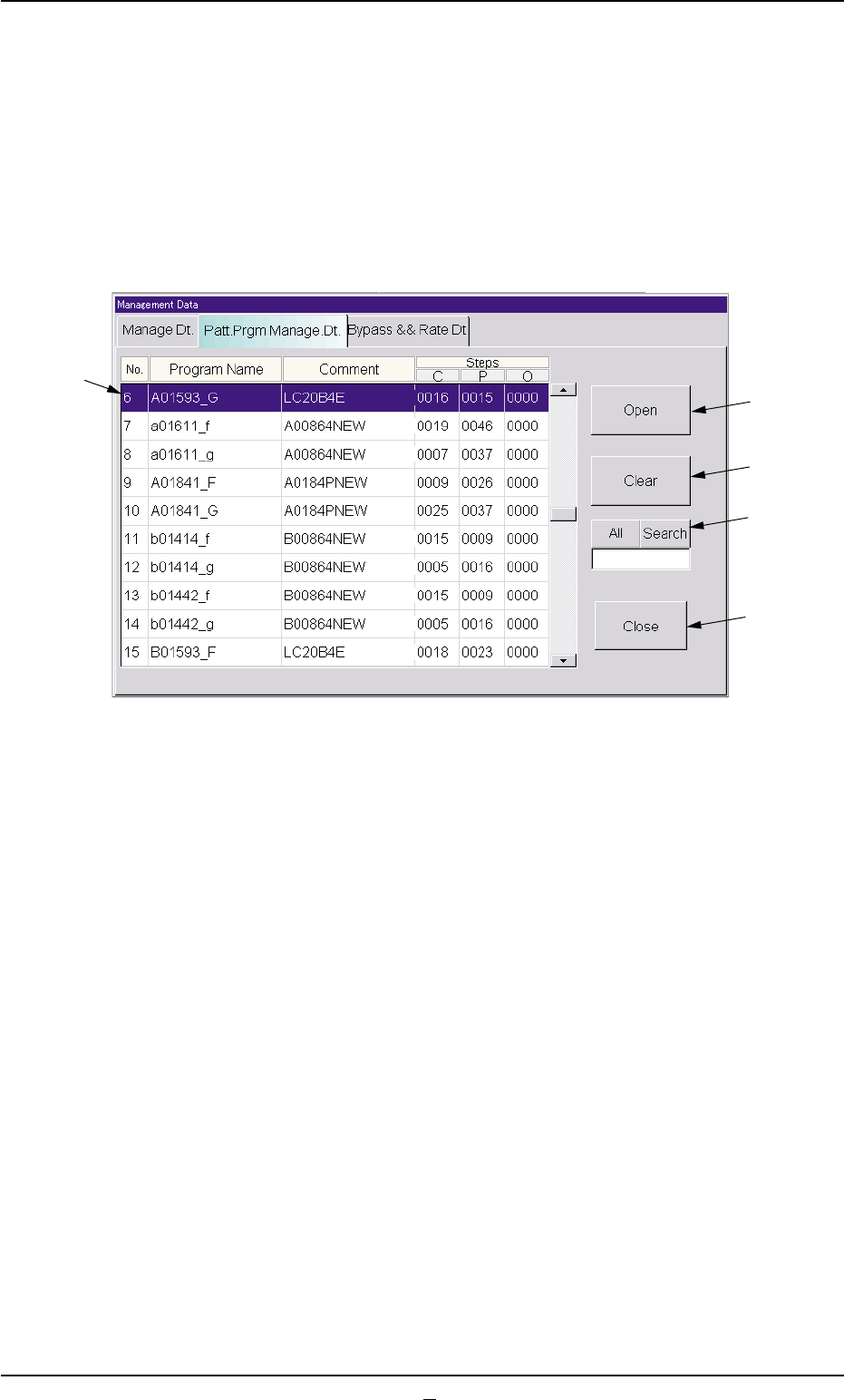

Fig. 3D3 "Patt. Prgm Manage. Dt." Tab Sheet
• Sheet Composition
*1 List of Model Names
Listed are the registered model names (pattern program names).
*2 [Open] Button
When this button is pressed after a pattern program (model) is se-
lected from the list of model names (*1), the "Pattern Program Man-
agement Data" window opens, enabling you to view the manage-
ment data.
Refer to "4. "Pattern Program Management Data" Window" for de-
tails.
*3 [Clear] Button
When this button is pressed after a pattern program (model) to be
deleted is selected from the list of model names (*1), the manage-
ment data of the selected pattern program is deleted and the clear
date is updated.
2.2 "Patt. Prgm Manage. Dt" Tab
0308-002 4-6 AHB01EDTP
*3
*2
*5
*1
*4
2.2 "Patt. Prgm Manage. Dt" Tab
*4 [All] and [Search] Buttons
When pressed, these buttons make it possible to search a program
name.
Enter characters in the text box under the [All] and [Search] buttons
and press the [Search] button. The program names which start with
the entered characters are displayed in the "Program Name" pane.
abc* : The search function retrieves the program names which
start with "abc".
a?c : The search function retrieves the program names which
start with "a" and contain "c" as the third character.
When the [All] button is pressed, all program names appear.
*5 [Close] Button
When this button is pressed, the "Management Data" window closes.
