AHB01EDTP 0206-002 3-12 Check Boxes : The check box is marked, indicating that the function is used or enabled. When " " is pressed, it changes to " ". : The check box is not marked, indicating that t…
AHB01EDTP
2.3.7 Property of Component ID
(1) Select the component ID to view its property.
The selected component ID turns blue, indicating that it is selected.
(2) Press the [Property...] button.
The "Property" dialog box appears.

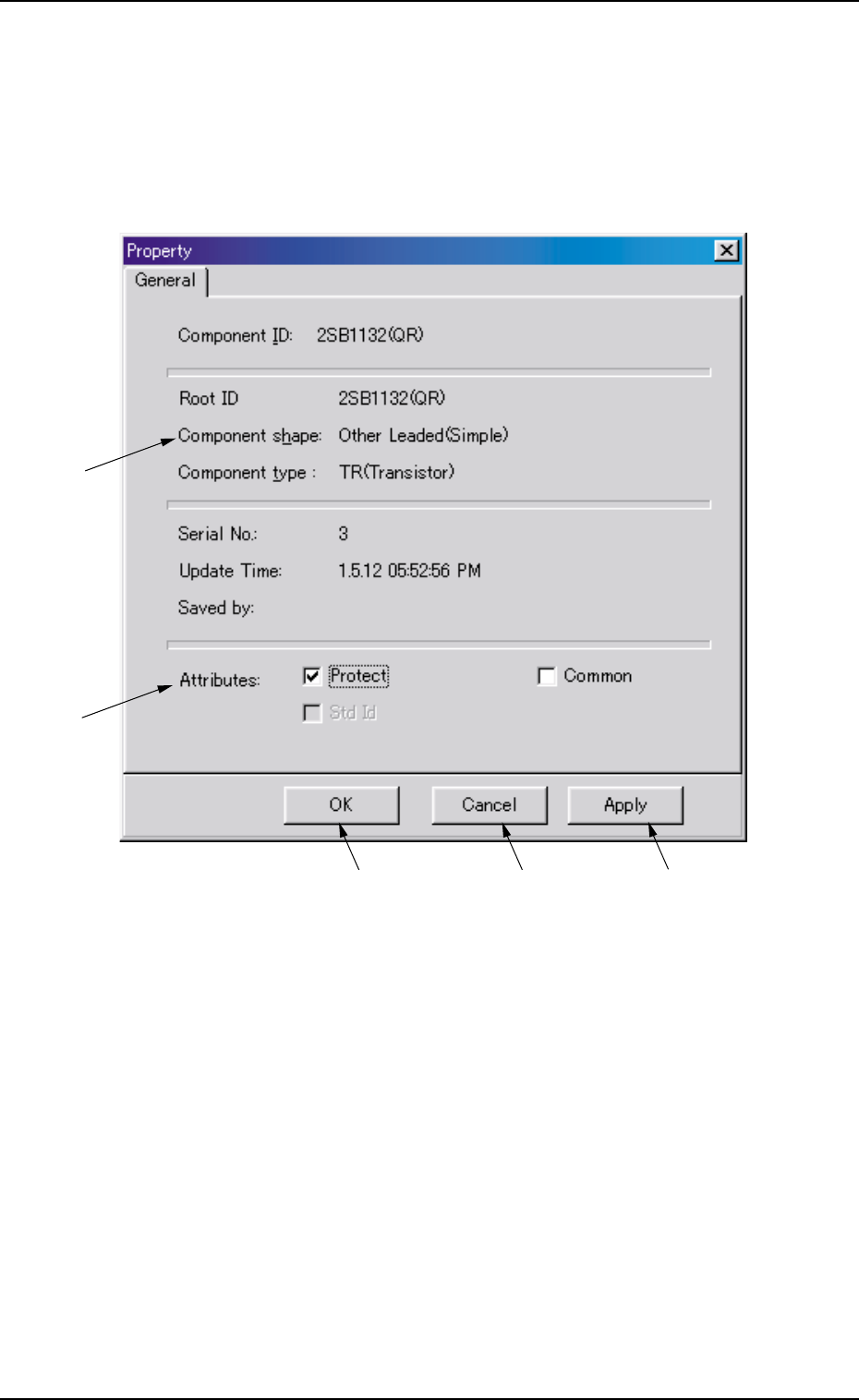

Fig. 3C11 "Property" Dialog Box
••
••
• Composition of "Property" Dialog Box
*1 Component ID, Root ID, Component shape, Component type,
Serial No., Update Time, Saved by
The property of the component ID is displayed.
*2 Protect, Common, Std Id
The attributes of the component ID are displayed. The check boxes
enable the operator to change the corresponding attributes.
*1
*2
*3
*4
*5
0206-003 3-11
2.3 Basic Usage of "Selection of component ID" Window
AHB01EDTP
0206-002 3-12
Check Boxes
: The check box is marked, indicating that the function is used
or enabled.
When " " is pressed, it changes to " ".
: The check box is not marked, indicating that the function is not
used or disabled.
When " " is pressed, it changes to " ".
"Protect"
When this check box is turned on (checked), this component ID is
specified as "Protected", making it impossible to edit the data of the
component ID.
"Common"
When this check box is turned on (checked), this component ID is
specified as "Common".
"Std Id"
When this check box is turned on (checked), this component ID is
specified as "Standard ID".
*3 [OK] Button
When this button is pressed, the changed attributes are applied if
any and the "Property" sheet closes.
*4 [Cancel] Button
The changed attributes are not applied and the "Property" sheet
closes.
*5 [Apply] Button
The changed attributes are applied.
2.3 Basic Usage of "Selection of component ID" Window
AHB01EDTP
3. "Component Library" Edit Window
3.1 Toolbar and Icons
This session describes the toolbar and icons in the "Component Li-
brary" edit window.

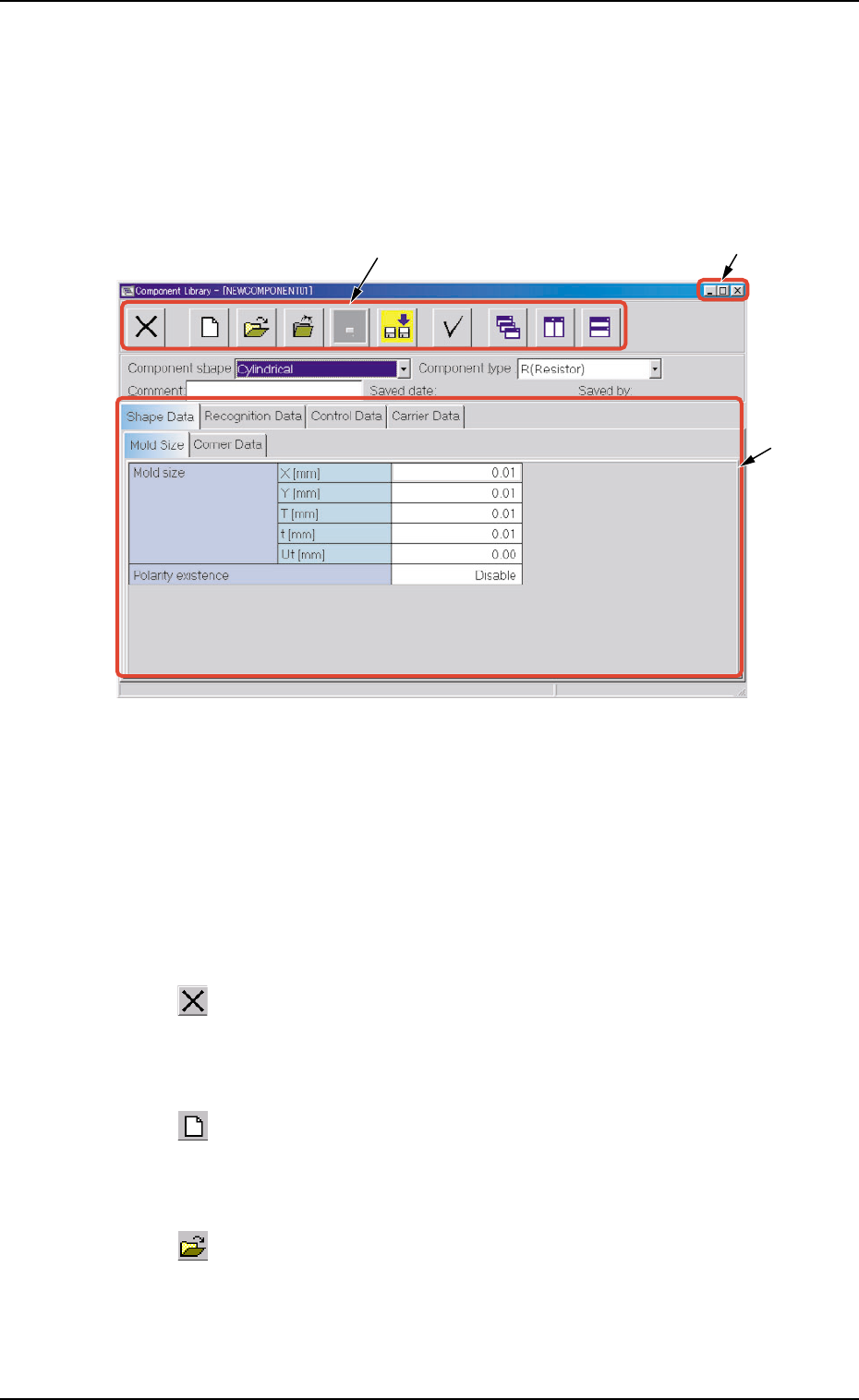

Fig. 3C7 "Component Library" Edit Window
••
••
• Composition of "Component Library" Edit Window
*1 Toolbar
This toolbar is provided with a collection of icons that can be imple-
mented as operation commands in the "Component Library" edit
window.
: Exit
When pressed, this closes the "Component Library" edit
window.
: New
When pressed, this creates a new component ID, using
the data for the component ID in the list.
: Open File
When pressed, this opens the "Selection of component ID"
window.
0206-002 3-13
3.1 Toolbar and Icons
*1
*2
*3
