Fig. 3E22 0206-003 5-22 AHB01EDTP P .C.B. Origin: P0 Y -Axis Linear Guide Beam (X1 and X2 Axes) Y -Axis Linear Guide Y(+) X(+) 2.1 "Offset Data" T ab
2.1.1.4 "Y-Axis" Tab
• Sheet Layout
When the "Y-Axis" tab is pressed in the "Device Offset" tab sheet,
the following tab sheet appears.

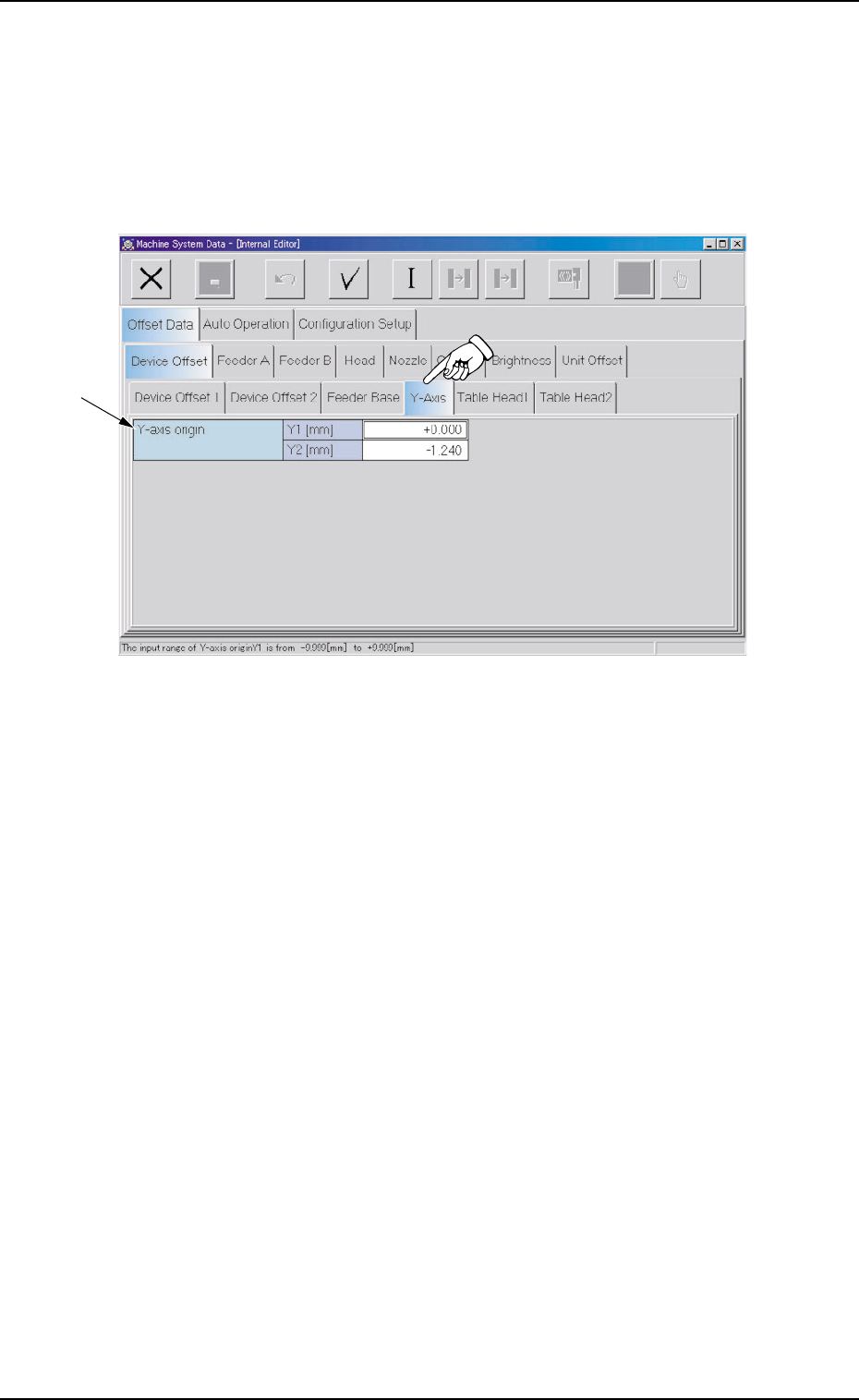

Fig. 3E21 "Y-Axis" Tab Sheet
• Sheet Composition
*1 Offset Items
Set the following offset values.
Y-axis origin Y1 [mm] and Y2 [mm]
This offset data is used to adjust the parallelism between the P.C.B.
positioning chute and the beam (X1 and X2 axes) when the Y axis is
zeroed.
0308-004 5-21
AHB01EDTP
*1
2.1 "Offset Data" Tab

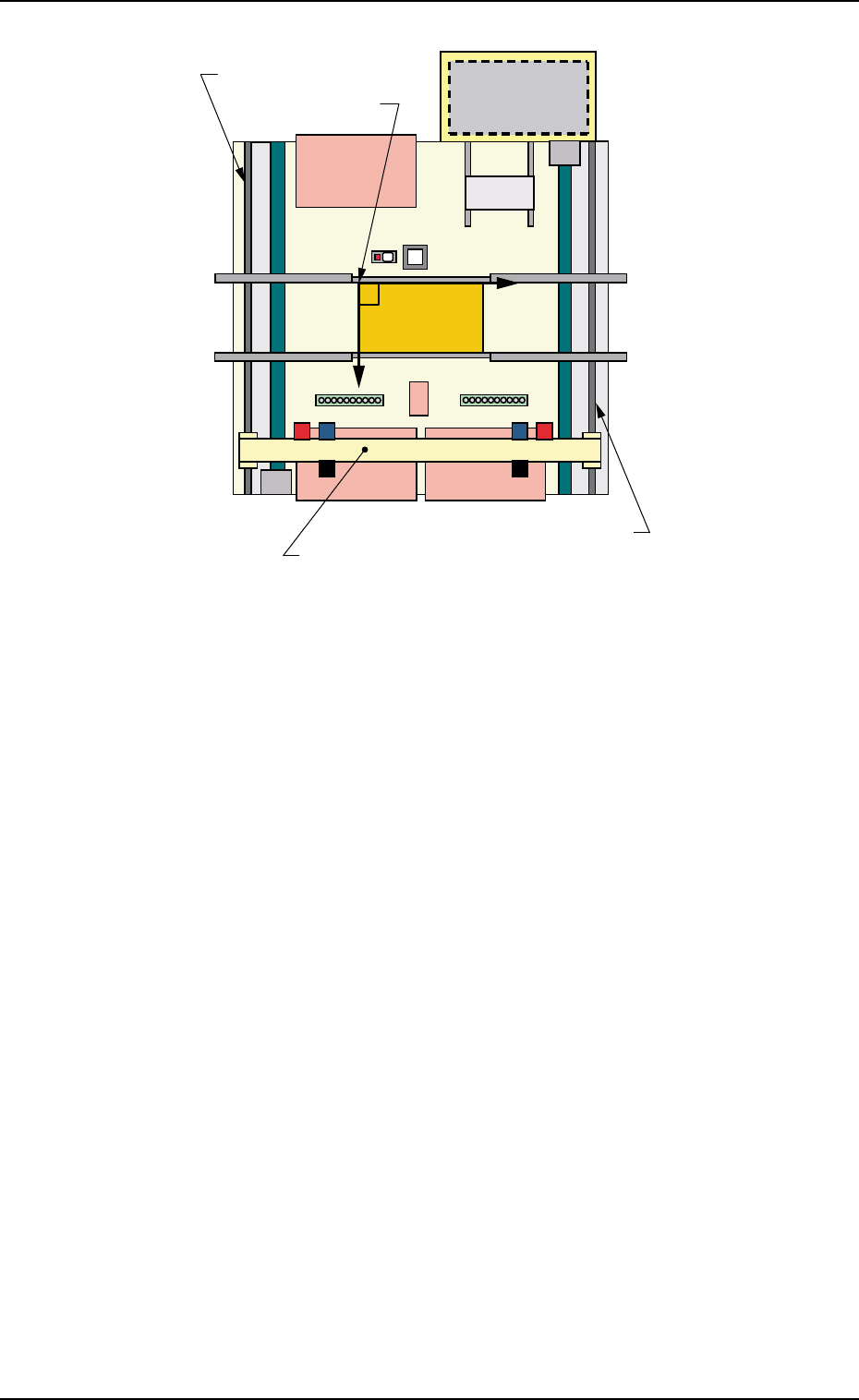

Fig. 3E22
0206-003 5-22
AHB01EDTP
P.C.B. Origin:
P0
Y-Axis Linear Guide
Beam (X1 and X2 Axes)
Y-Axis Linear Guide
Y(+)
X(+)
2.1 "Offset Data" Tab
2.1.1.5 "Table Head1" and "Table Head2" Tabs
Almost the same items as "Table Head1" are displayed in the
"Table Head2" tab sheet and the navigations similar to those
through the "Table Head1" tab sheet can be followed through
the "Table Head2" tab sheet.
• Sheet Layout
When the "Table Head1" or the "Table Head2" tab is pressed in the
"Device Offset" tab sheet, the following tab sheet appears.

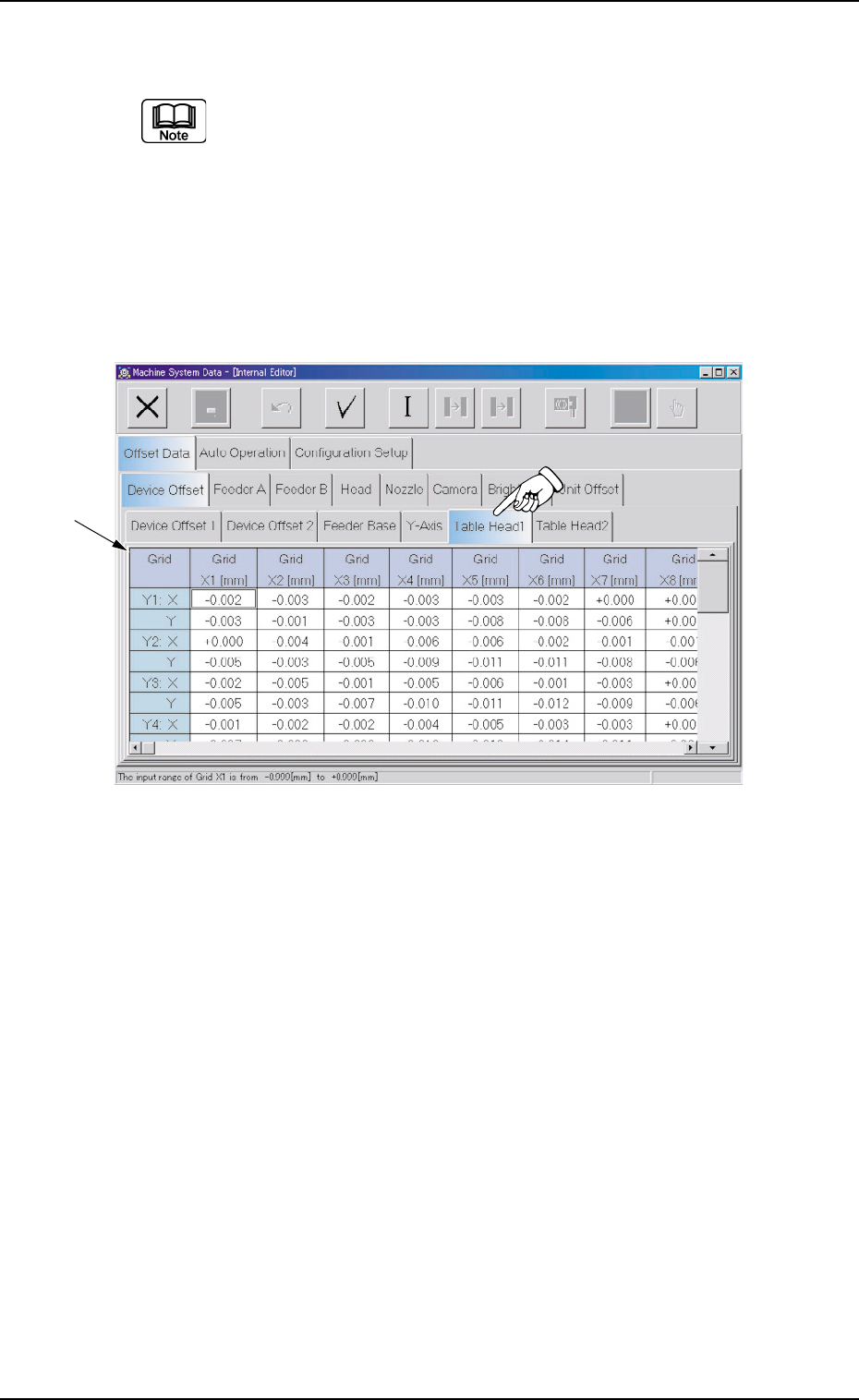

Fig. 3E23 "Table Head1" Tab Sheet
• Sheet Composition
*1 Offset Items
Set the following offset values.
Grid
Enter the deviations (based on the specified distance) that will be
caused when Head #1 has moved by the specified distance from
the P.C.B. positioning reference to each grid (X Direction: X1 through
X23, Y Direction: Y1 through Y15).
These values are automatically calculated through teaching opera-
tions and entered in each text box.
0308-004 5-23
AHB01EDTP
*1
2.1 "Offset Data" Tab
