Z=theta Set the offset value for component placement angle. The set value is added to the "Z=theta" of all components in the placement data (P data). T o correct the angle of component placement counterclock- w…
(A01_03) P.C.B. origin offset
X [mm] , Y [mm]
Set the offset values to correct the difference between the
placement coordinate reference point (N
0
) and the P.C.B.
origin (P
0
).
Unit: mm
"Plus" or "Minus" can be set in both X and Y coordinates in
the direction of the correction.
Fig. 3B13 Example "+" (Plus) Direction for Correction
Data Input Range
X: -99.999 to +99.999 Y: -99.999 to +99.999
0206-002 2-13
AHB01EDTP
2.3 Operation Data
X
[mm]
Y [mm]
+00.000
+00.000
Fig. 3B12
Z=theta
Set the offset value for component placement angle.
The set value is added to the "Z=theta" of all components in
the placement data (P data).
To correct the angle of component placement counterclock-
wise, a parameter must be entered with a "+" (plus) sign.
Put a "-" (minus) sign to correct it clockwise.
Unit: ° (degrees)
Fig. 3B15
Data Input Range
-359.99 to +359.99
0308-003 2-14
AHB01EDTP
2.3 Operation Data
Z=theta
Fig. 3B14
+0.00
0°
+.°
-.°
(A01_04) P.C.B. height offset [mm]
Set an offset value as a nozzle descending distance based
on the upper surface reference of the P.C.B. in the compo-
nent placement section.
This offset value applies to all components in the pattern
program.
Unit: mm
Normal Cases
Set "0.00 mm" (zero) in the text box.

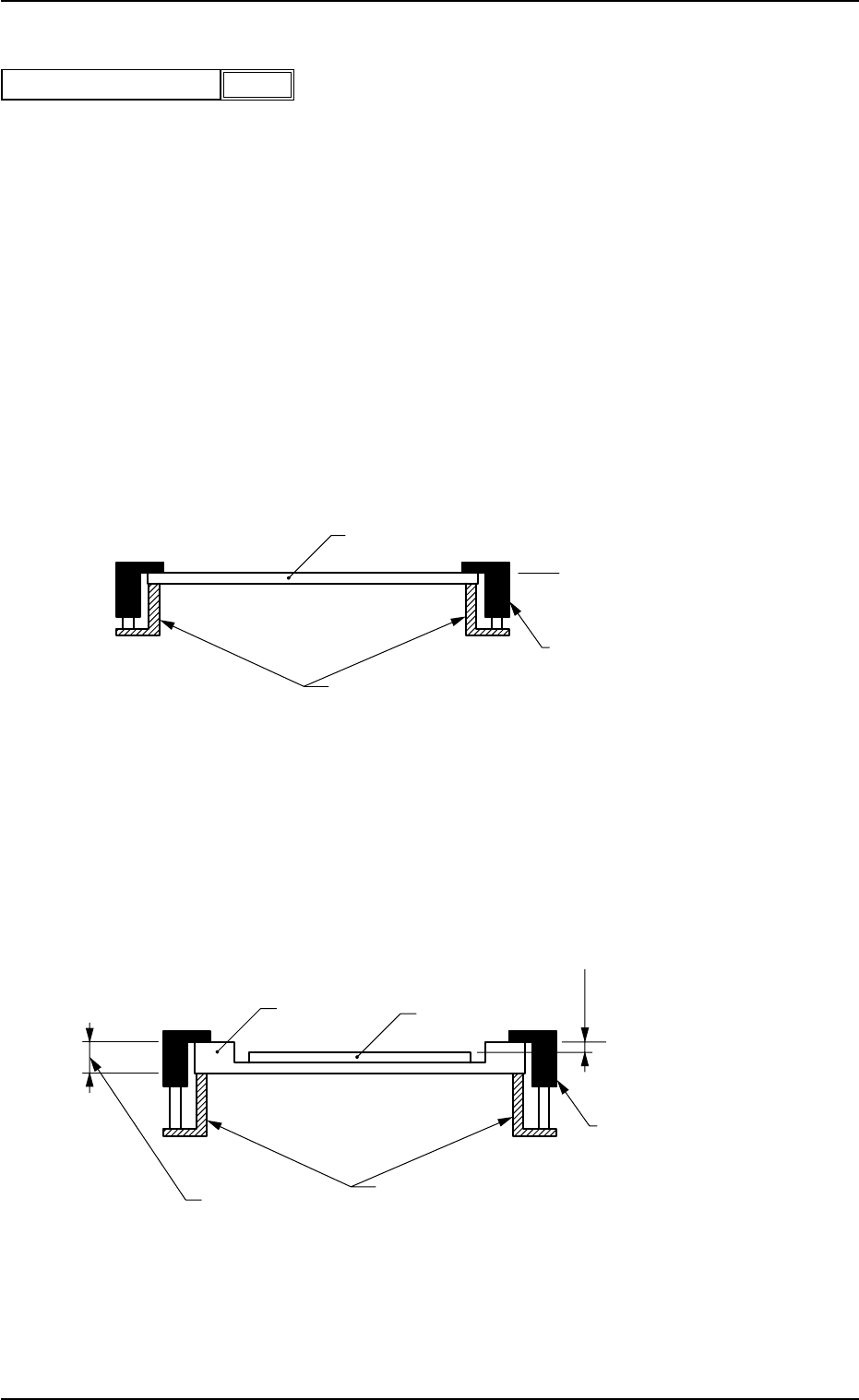

The figure below shows that the upper surface of a P.C.B. is
maintained by the P.C.B. support pins at the P.C.B. upper
surface reference.
Fig. 3B17
Example of Jig P.C.B. Usage
The figure below shows that the upper surface of a P.C.B. is
lower than the P.C.B. upper surface reference.
If "+a mm" is set as an offset value at this time, components
can be placed correctly on the P.C.B.
Fig. 3B18
Data Input Range
-9.99 to +9.99
0206-002 2-15
AHB01EDTP
2.3 Operation Data
+0.00P.C.B. height offset
[mm]
Fig. 3B16
a mm
Clamp Plates
T (Thickness)
Chute
P.C.B. Upper Surface
Reference
P.C.B.
Jig P.C.B.
Clamp Plates
Chute
P.C.B. Upper Surface
Reference
P.C.B.
