4. "Pattern Program Management Data" Window This window enables the operator to check the management data of the models that correspond to each individual pattern programs. • Window Layout When the [Open] butto…
*C: vacuum sensor error
Shown is the number of components judged "NG" (No Good) by
the vacuum sensor although the components are judged "OK"
through component recognition operation.
*D: component recognition
Shown is the number of components judged "NG" (No Good)
through recognition operation.
(2) Component chuck
[((*total cmpnt-(*A+*B+*C))/*Total cmpntX100](%): Value (%) de-
termined by the following formula
(# of Picks - (Counts in *A + Counts in *B + Counts in *C))/# of
Picks x 100
(3) Component placement
[((*total cmpnt-(*A+*B+*C+*D))/*Total cmpnt)X100](%):Value (%)
determined by the following formula
(# of Picks - (Counts in *A + Counts in *B + Counts in *C + Counts
in *D))/# of Picks x 100
Counting of "A: Component missing [sensor]" and "B:
Component missing [recognition]"
Although the machine stops in an error condition according to
the number of times (the number of continuous component
missing errors to be counted to stop the machine in an error
condition) set in the "1" text box of the label "Error process" in
the "Component Library" window, the number of component
missing errors is not added to the number of picks and the num-
ber of pick-up errors.
3.7 "Handling/Placement Data" Tab
0206-002 4-27 AHB01EDTP
4. "Pattern Program Management Data" Window
This window enables the operator to check the management data of
the models that correspond to each individual pattern programs.
• Window Layout
When the [Open] button is pressed after the desired model (program
name) is selected in the "Patt. Prgm Manage. Dt." tab sheet ("Man-
agement Data" window), the "Pattern Program Management Data"
window for the selected model opens.

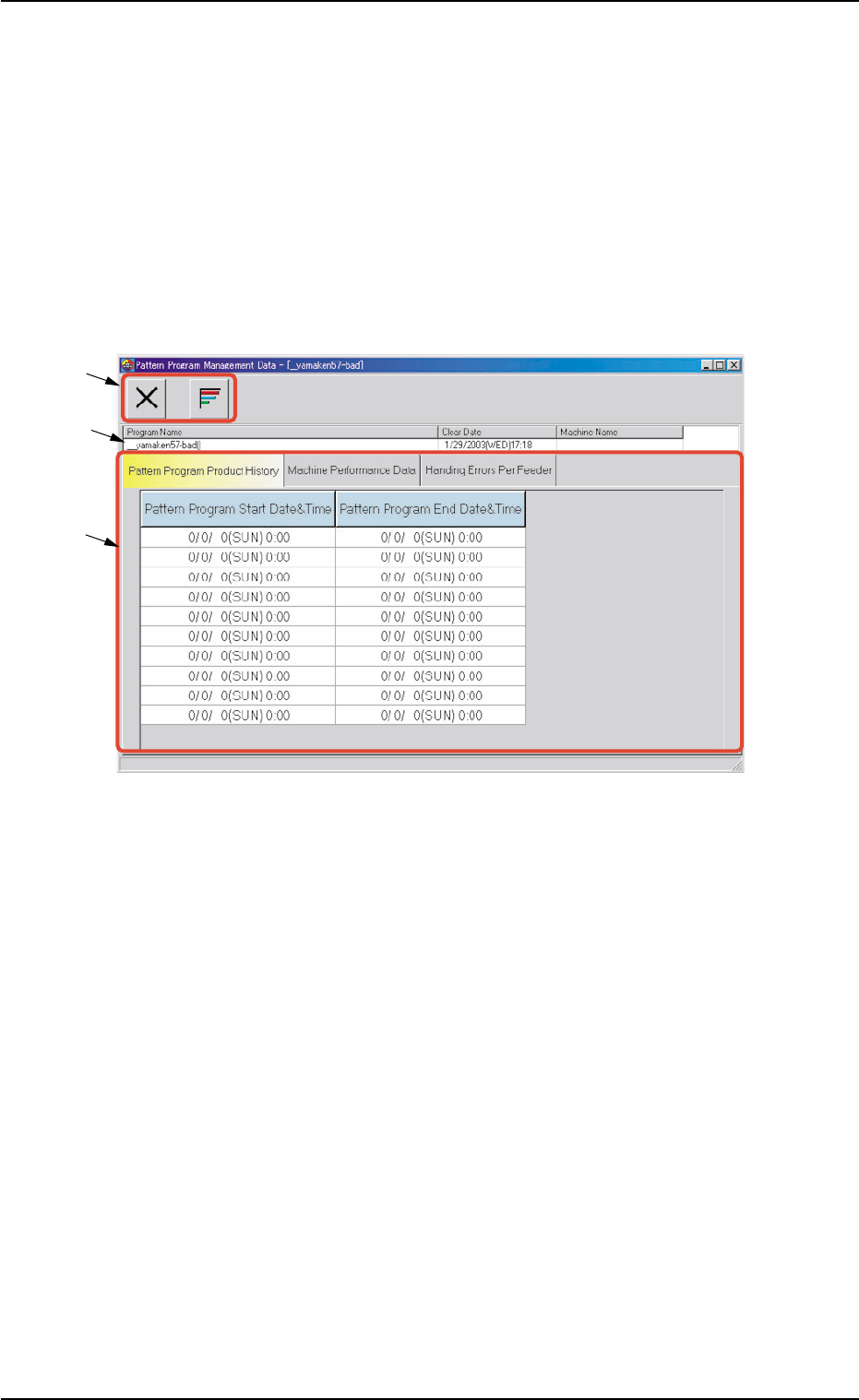

Fig. 3D16 "Pattern Program Management Data" Window
• Window Composition
*1 Toolbar
The following icons are arranged.
[Close] Icon
When this is pressed, the "Pattern Program Management Data"
window closes.
[Chart] Button
When pressed, this button shows a chart.
*2 Program Name
Displayed are the pattern program name (comment), the clear date,
and the machine name related to the pattern program management
data.
*3 Tabs and Tab Sheets
The "Pattern Program Management Data" window is provided with
the following three tab sheets. When a tab is pressed, the corre-
sponding tab sheet appears inside the window.
0308-002 4-28
AHB01EDTP
4. "Pattern Program Management Data" Window
*1
*2
*3
Table 3D5
Tabs Description
Pattern Program Displayed are "Pattern Program Start Date & Time" and "Pattern
Product History Program End Date & Time".
Machine Performance Listed is the machine performance data such as "P.C.B. counter",
Data "Product P.C.B.", "Passed P.C.B.", "Product P.C.B. (B.B.R.) (option)",
"Total components", "Total handling errors", "Rate of handling errors
(%)", "Power on time", "Maintenance time", "Test mode time", "Total
handling errors/Total components", etc.
Handling Errors Per This tab sheet is provided with the four tabs - "Feeder Base #1",
Feeder "Feeder Base #3", "Feeder Base #4", and "Tray #2". Each tab sheet
displays a list of "Total Components", "Number of Errors (classified
by error types)", "Total Errors", "Rate of Error (%)", and "Shortage of
Cmpnt", "Component ID.", "Type", and "Width (mm)" for each feeder
No. (actual feeder No.).
0206-002 4-29 AHB01EDTP
