AHB01EDTP 0308-004 3-17 3.2 "Shape Data" T ab (2) Component Shape : Deform (Simple) *1 Component type, *2 Mold size, *3 Outward length, *4 Polarity existence (3) Component shape : Deform (Complex), IC (Simple),…
AHB01EDTP
3.2 "Shape Data" Tab
3.2.1 "Mold Size" Tab
The corresponding tab sheet appears when "Cylindrical", "Square", "De-
form (Simple)", "Deform (Complex)", "IC (Simple)", "IC (Complex)", "Con-
nector (Simple)", "Connector (Complex)", "Other Leaded (Simple)",
"Other Leaded (Complex)", or "BGA/CSP" is selected in the "Compo-
nent shape" text box.
••
••
• Sheet Layout
When the "Mold Size" tab is pressed in the "Shape Data" tab sheet,
the following tab sheet appears.

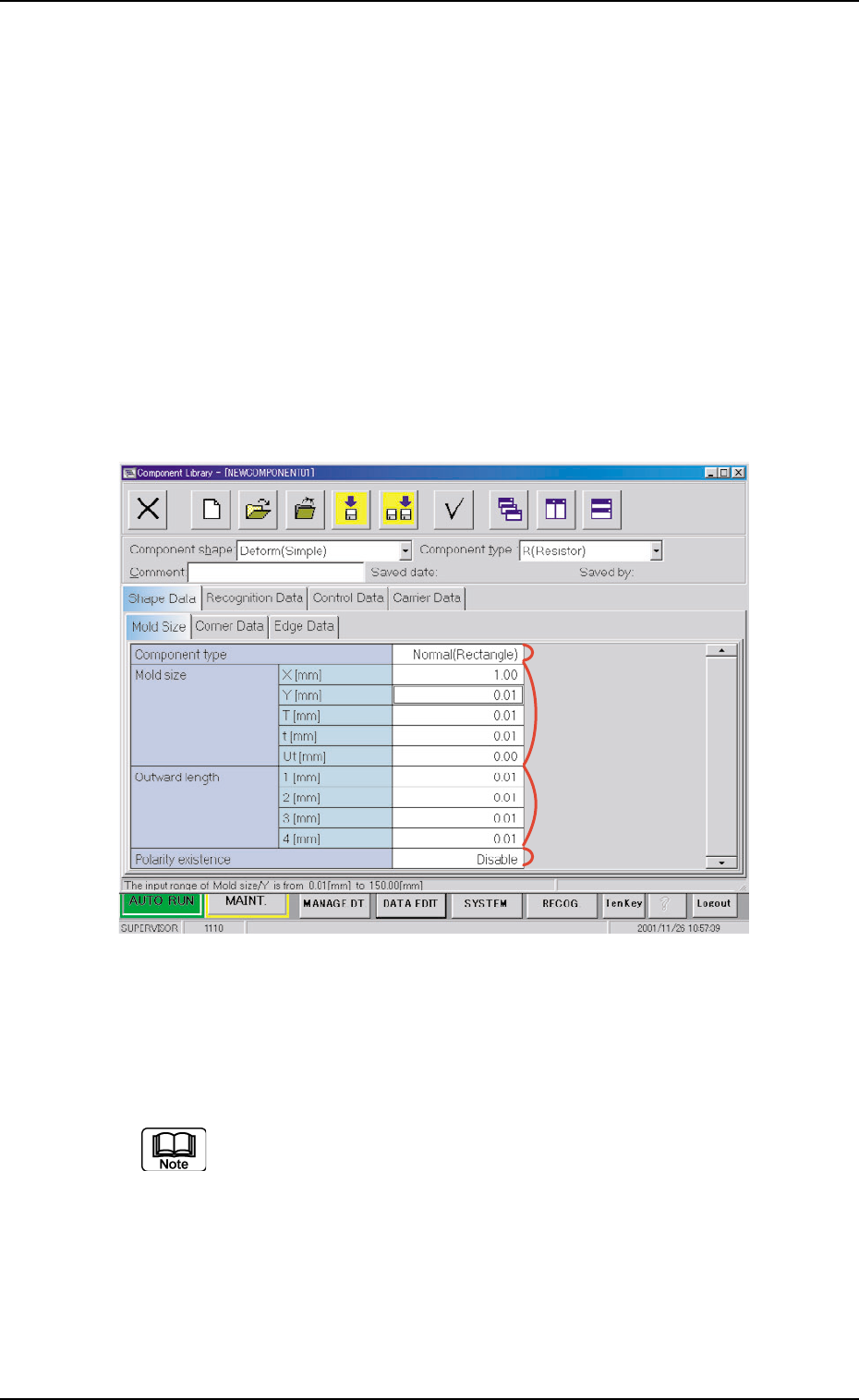

Fig. 3C13 "Shape Data" Tab Sheet ("Deform (Simple)" Selected)
••
••
• Sheet Composition
Each parameter is displayed or can be entered.
Refer to "4.1.3 Basic Usage of Text Boxes" in "Section 2" for the
detailed information on how to enter parameters.
(1) Component shape : Cylindrical, Square, BGA/CSP
*2 Mold size, *4 Polarity existence
0206-003 3-16
3.2 "Shape Data" Tab
*1
*4
*2
*3
AHB01EDTP
0308-004 3-17
3.2 "Shape Data" Tab
(2) Component Shape : Deform (Simple)
*1 Component type, *2 Mold size, *3 Outward length,
*4 Polarity existence
(3) Component shape : Deform (Complex), IC (Simple),
Connector (Simple),
Other Leaded (Simple)
*2 Mold size, *3 Outward length, *4 Polarity existence
(4) Component shape : IC (Complex), Connector (Complex),
Other Leaded (Complex)
*2 Mold size, *3 Outward length, *4 Polarity existence
AHB01EDTP
3.2.2 "Corner Data" Tab
The corresponding tab sheet appears when "Cylindrical", "Square", or
"Deform (Simple)" is selected in the "Component shape" text box.
••
••
• Sheet Layout
When the "Corner Data" tab is pressed in the "Shape Data" tab sheet,
the following tab sheet appears.

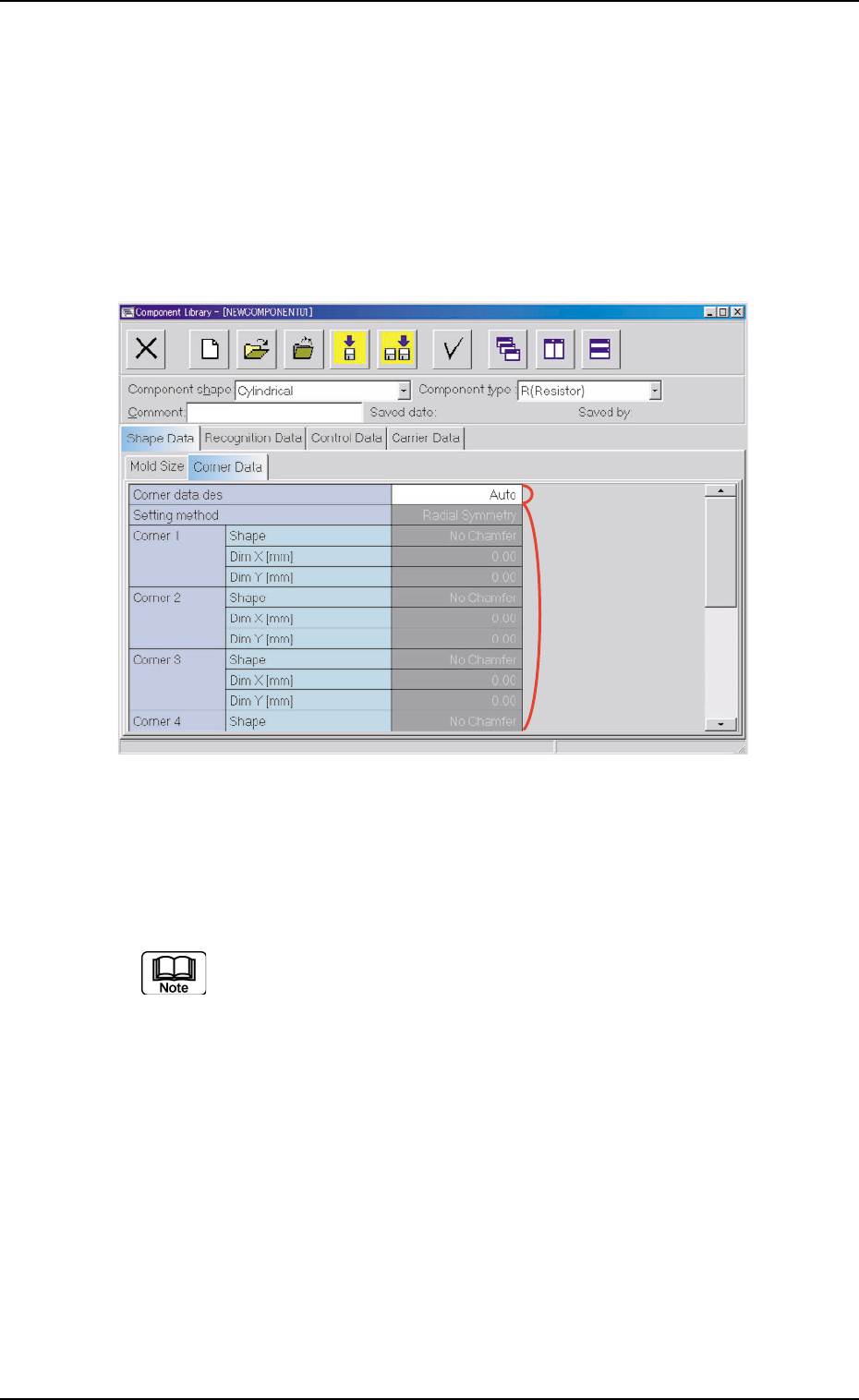

Fig. 3C14 "Corner Data" Tab Sheet ("Cylindrical" Selected)
••
••
• Sheet Composition
Each parameter is displayed or can be entered.
Refer to "4.1.3 Basic Usage of Text Boxes" in "Section 2" for the
detailed information on how to enter parameters.
*1 Corner data des
*2 Setting method
Corner 1, Corner 2, Corner 3, Corner 4
Enter a parameter in each text box according to the parameter (set-
ting condition) selected for "Setting method".
0206-003 3-18
3.2 "Shape Data" Tab
*1
*2
