Fiducial mark #4 X location [mm], Y location [mm] (Not Available) Set the coordinates of the fourth fiducial mark in the text boxes. Unit: mm Fiducial mark #4 Mark code (Not Available) Set the mark code of the fourth fid…
(A02_02) P.E.C. recognition mode Global
When "1 Point", "2 Point", "3 Point", or "4 Point" is selected
for the global P.E.C. recognition function, the coordinates
and mark code of each fiducial mark must be entered in the
corresponding text boxes.
Fiducial mark #1 X location [mm], Y location [mm]
Set the coordinates of the first fiducial mark in the text boxes.
Unit: mm
Fiducial mark #1 Mark code
Set the mark code of the first fiducial mark in the text box.
Fiducial mark #2 X location [mm], Y location [mm]
Set the coordinates of the second fiducial mark in the text
boxes.
Unit: mm
Fiducial mark #2 Mark code
Set the mark code of the second fiducial mark in the text
box.
Fiducial mark #3 X location [mm], Y location [mm]
Set the coordinates of the third fiducial mark in the text boxes.
Unit: mm
Fiducial mark #3 Mark code
Set the mark code of the third fiducial mark in the text box.
0206-003 2-27
AHB01EDTP
2.3 Operation Data
125.000 [mm]
125.000 [mm]
Fiducial mark #1 X location [mm]
Y location [mm]
Fig. 3B40
95.000 [mm]
95.000 [mm]
Fiducial mark #2 X location [mm]
Y location [mm]
Fig. 3B42
1
Fiducial mark #1 Mark code
Fig. 3B41
1
Fiducial mark #2 Mark code
Fig. 3B43
Fiducial mark #3 X location [mm]
Y location [mm]
0.000 [mm]
0.000 [mm]
Fig. 3B44
1
Fiducial mark #3 Mark code
Fig. 3B45
Fiducial mark #4 X location [mm], Y location [mm]
(Not Available)
Set the coordinates of the fourth fiducial mark in the text
boxes.
Unit: mm
Fiducial mark #4 Mark code (Not Available)
Set the mark code of the fourth fiducial mark in the text box.
Refer to "(A03) P.C.B. Recognition Mark Data" for
the mark codes.
0206-003 2-28
AHB01EDTP
2.3 Operation Data
Fiducial mark #4 X location [mm]
Y location [mm]
0.000 [mm]
0.000 [mm]
Fig. 3B46
1
Fiducial mark #4 Mark code
Fig. 3B47
(A03) P.E.C. Recognition Mark Data

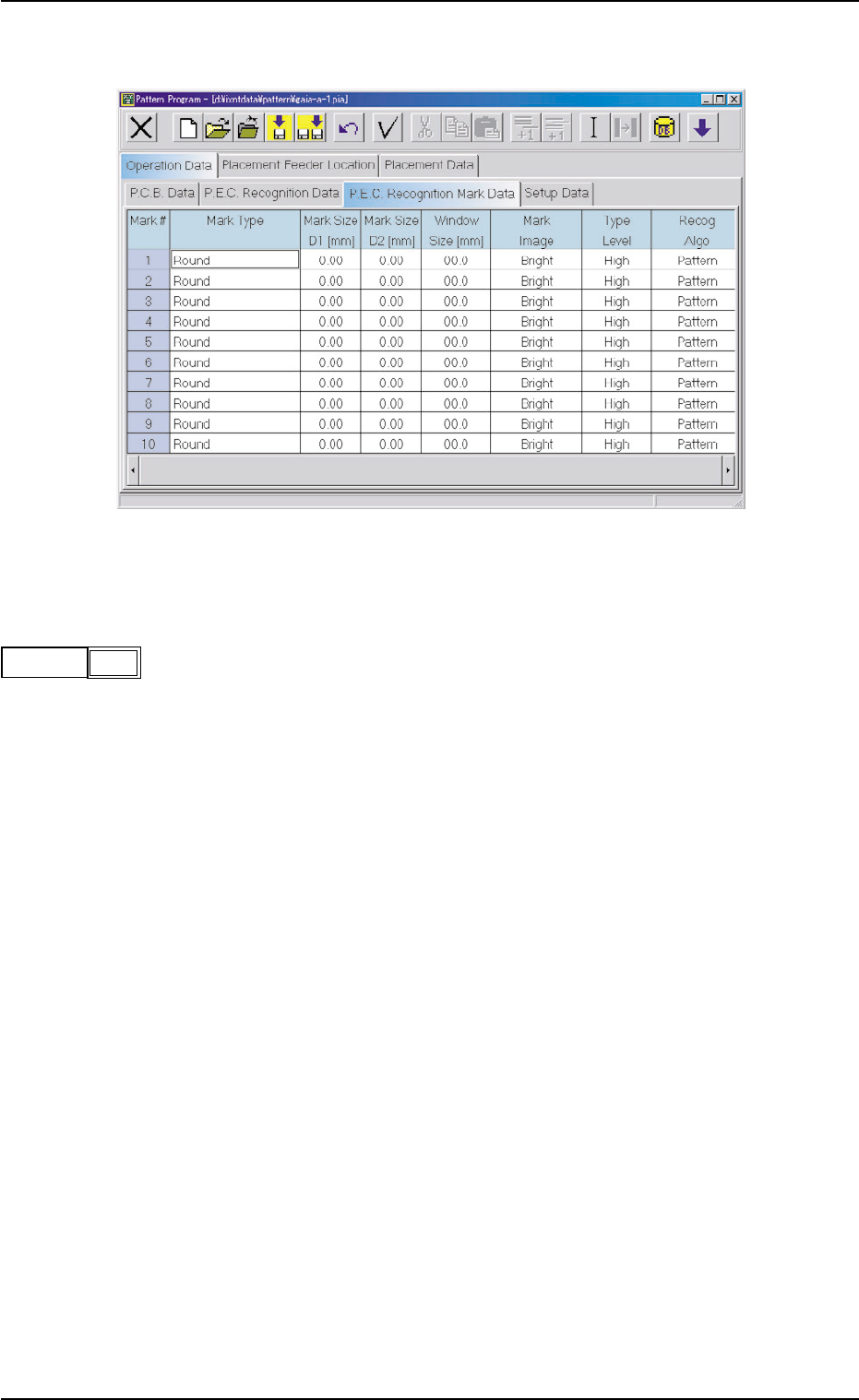

Fig. 3B48 Edit Window (Example)
(A03_01) Mark #
The mark Nos. correspond to the mark codes and the speci-
fied parameters of each fiducial mark used in the P.E.C.
recognition function.
10 types of mark codes can be registered for each pattern
program.
1
Mark #
Fig. 3B49
2.3 Operation Data
