AHB01EDTP Fig. 3C26 "Control Data" T ab Sheet ("Cylindrical" Selected) *6 Auto fdr axis adjustment X, Y *7 Pickup level [mm], *8 Placement level [mm] *9 Focus adjustment [mm], *10 High accuracy mode *…
AHB01EDTP
Fig. 3C25 "Control Data" Tab Sheet ("Cylindrical" Selected)
*2 Selected nozzle #2
Control command
Nozzle ID, Beam (X/Y), "Pu descent dclr 1", Pu descent dclr 2
[%], Pu descent dclr 2 Stroke [mm], Pu ascent, Pl descent dclr
1, Pl descent dclr 2 [%], Pl descent dclr 2 Stroke [mm], Pl as-
cent, Nozzle rotation, Nozzle change, Recognition time [sec],
Pu retention time [sec], Pl retention time [sec], Mvbl recog
retention time [sec], Fxd recog retention time [sec], Cmpnt
detection (Sensor), Air blow, and Air blow off timing [mm]
When "-" is set in the "Control command" text box, it is required to
enter parameters in these text boxes.
*3 Pl angle recognition
*4 Cmpnt pos correction X [mm], Y [mm],
*5 Pickup pos correction X [mm], Y [mm],
3.4 "Control Data" Tab
0308-003 3-37
*1
*2
*3
*4
*5
AHB01EDTP
Fig. 3C26 "Control Data" Tab Sheet ("Cylindrical" Selected)
*6 Auto fdr axis adjustment X, Y
*7 Pickup level [mm], *8 Placement level [mm]
*9 Focus adjustment [mm], *10 High accuracy mode
*11 Error process 1, 2
3.4 "Control Data" Tab
0308-004 3-38
*11
*6
*7
*8
*9
*10
AHB01EDTP
3.5 "Carrier Data" Tab
••
••
• Sheet Layout
When the "Carrier Data" tab is pressed, the "Carrier Data" tab sheet
appears.
The "Carrier Data" tab sheet is divided into the following three kinds
of sheets according to the parameter selected in the "Type" text box
of the label "Carrier data".
••
••
• "Carrier Data" Tab Sheet (Taped Components)
Paper, Embossed, Adhesive, Stick, MS, Bulk, Pack, TCM, Bulk2
••
••
• "Carrier Data" Tab Sheet (Vibratory Stick Components)
Vibratory Stick
••
••
• "Carrier Data" Tab Sheet (Tray Components)
Tray, FC Fixed Tray
3.5.1 "Carrier Data" Tab Sheet (Taped Components)

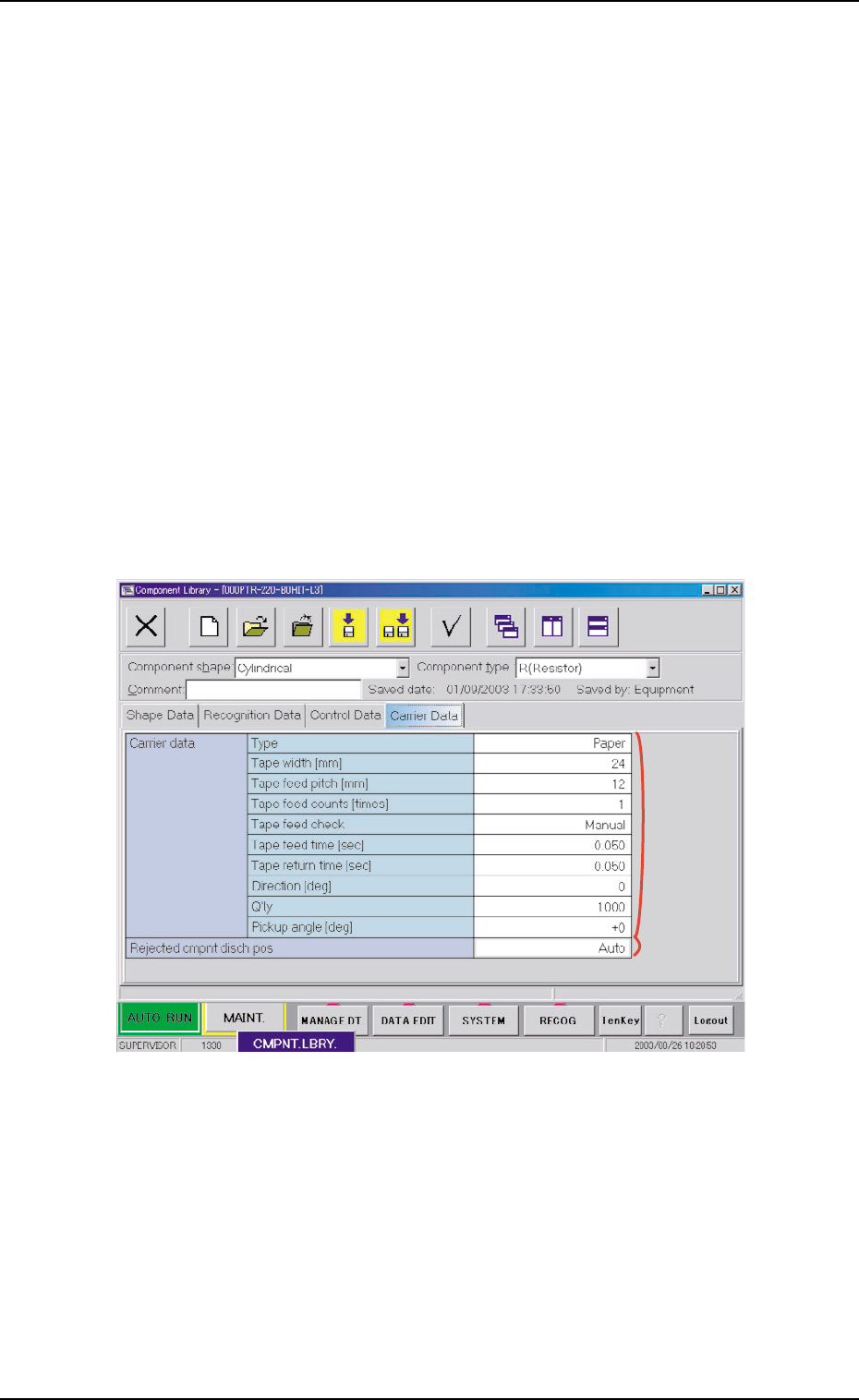

Fig. 3C27 Example of "Carrier Data" Tab Sheet (Taped Components)
3.5 "Carrier Data" Tab
0308-004 3-39
*1
*2
