AHB01EDTP 3.5.2 "Carrier Data" T ab Sheet (Vibratory Stick Components) Fig. 3C28 Example of "Carrier Data" T ab Sheet (Vibratory Stick Components) • • • • • Sheet Composition Each parameter is display…
AHB01EDTP
0206-003 3-40
••
••
• Sheet Composition
Each parameter is displayed or can be entered.
Refer to "4.1.3 Basic Usage of Text Boxes" in "Section 2" for the
detailed information on how to enter parameters.
*1 Carrier Data
Type, Tape width [mm], Tape feed pitch [mm], Tape feed counts
[times], Tape feed check, Tape feed time [sec], Tape return time
[sec], Direction, Q’ty, Pickup angle
*2 Rejected cmpnt disch pos
3.5 "Carrier Data" Tab
AHB01EDTP
3.5.2 "Carrier Data" Tab Sheet (Vibratory Stick Components)

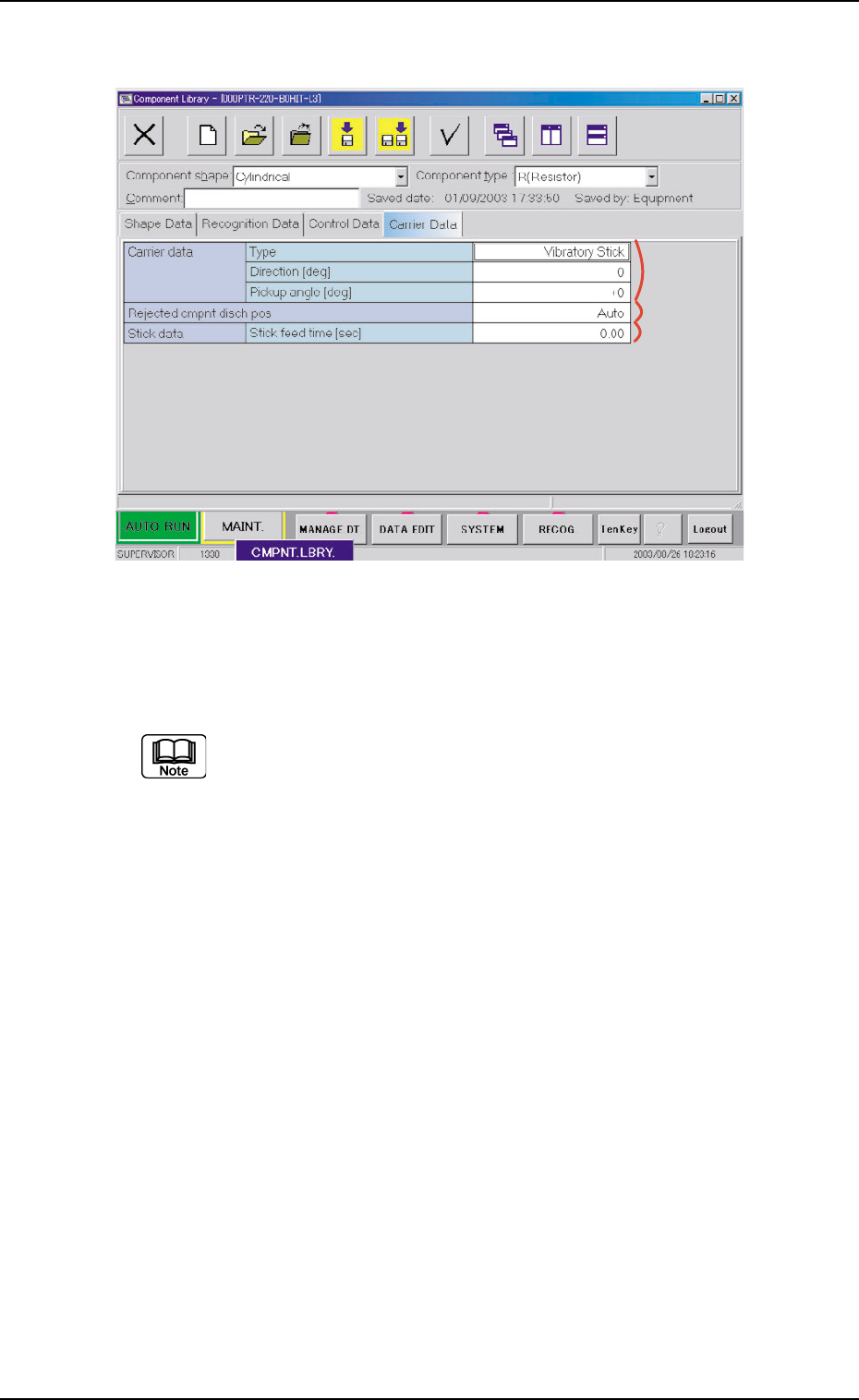

Fig. 3C28 Example of "Carrier Data" Tab Sheet (Vibratory Stick Components)
••
••
• Sheet Composition
Each parameter is displayed or can be entered.
Refer to "4.1.3 Basic Usage of Text Boxes" in "Section 2" for the
detailed information on how to enter parameters.
*1 Carrier data
Type, Direction, Pickup angle
*2 Rejected cmpnt disch pos
*3 Stick data
Stick feed time [sec]
3.5 "Carrier Data" Tab
*1
*2
*3
0308-004 3-41
AHB01EDTP
3.5 "Carrier Data" Tab
3.5.3 "Carrier Data" Tab Sheet (Tray Components)

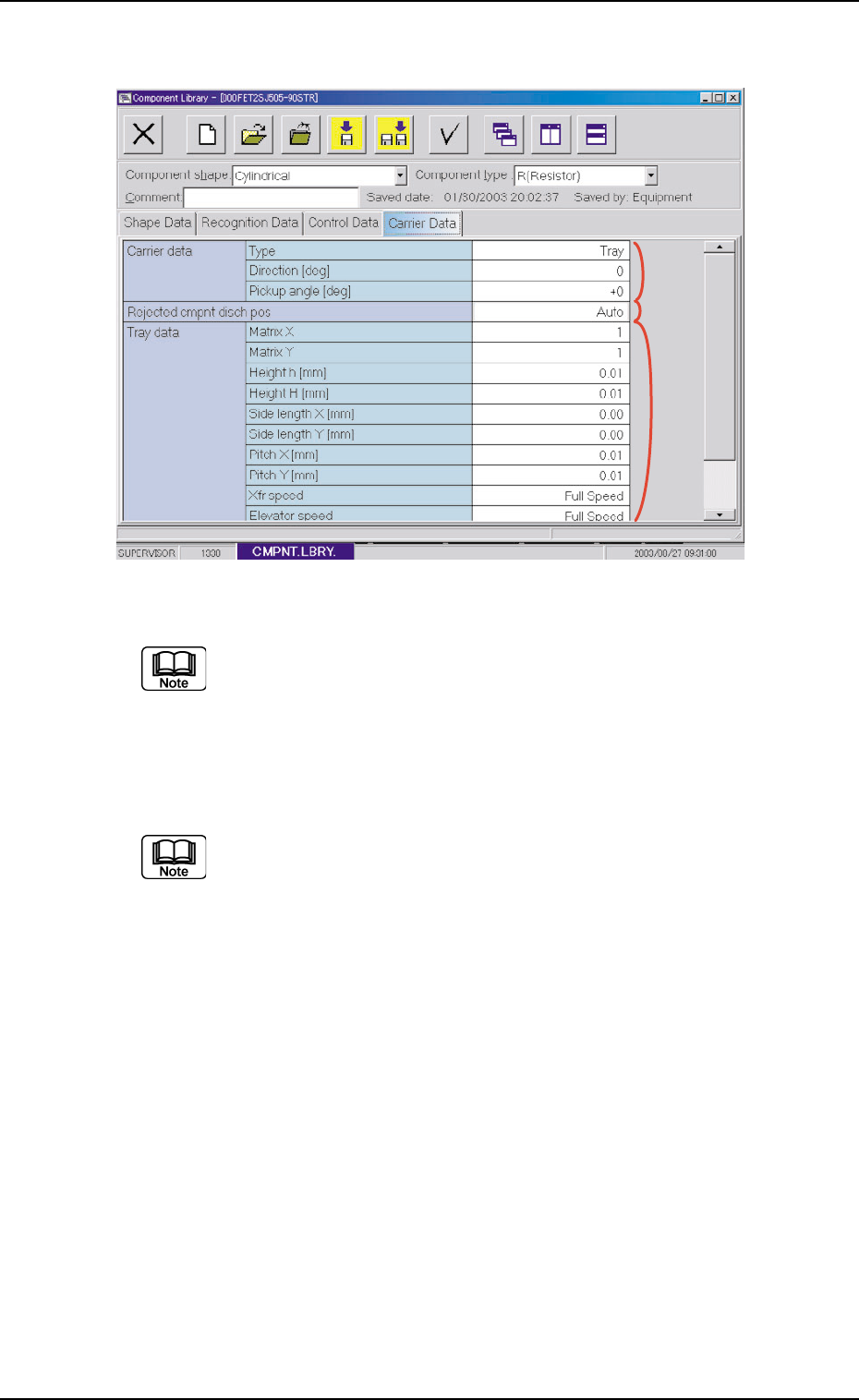

Fig. 3C29 Example of "Carrier Data" Tab Sheet (Tray Components)
The tray components are used for the multi-layer tray feeder
(option).
••
••
• Sheet Composition
Each parameter is displayed or can be entered.
Refer to "4.1.3 Basic Usage of Text Boxes" in "Section 2" for the
detailed information on how to enter parameters.
*1 Carrier data
Type, Direction, Pickup angle
*2 Rejected cmpnt disch pos
*3 Tray data
Matrix X, Matrix Y, Height h [mm], Height H [mm], Side length X
[mm], Side length Y [mm], Pitch X [mm], Pitch Y [mm], Xfr speed,
Elevator speed, Matrix missing setting
0308-004 3-42
*1
*2
*3
