0308-001 5-1 10 AHB01EDTP

4.4 "Others" Tab

The corresponding tab sheet enables the operator to connect the com-

puter system of the machine to the local network.

••

• Sheet Layout

When the "Others" tab is pressed, the following tab sheet appears.

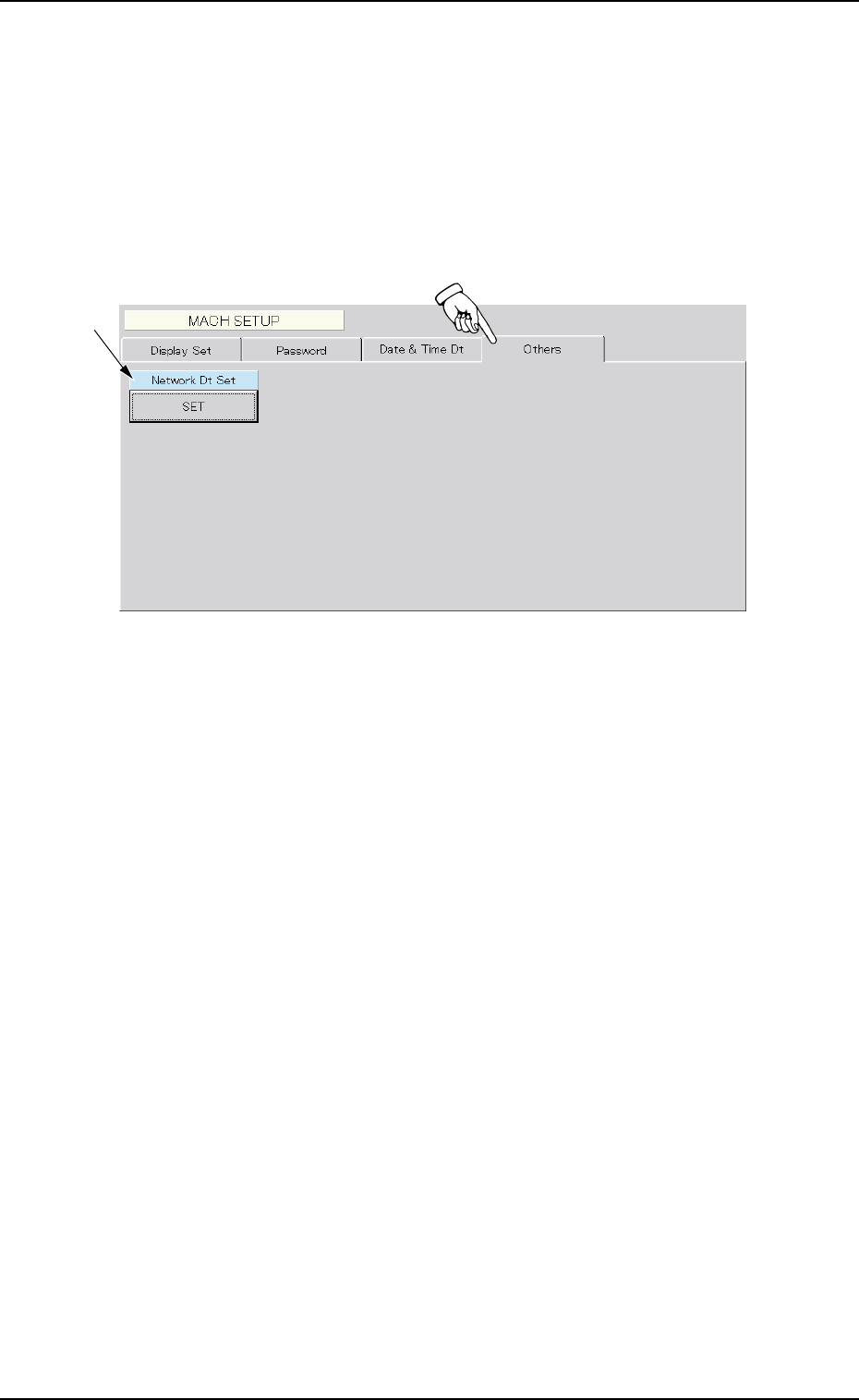

Fig. 3E99 "Others" Tab Sheet

••

• Sheet Composition

*1 Network Dt Set

To connect the computer system of the machine to the local net-

work, press the [SET] button. The "Network Set" dialog box opens,

enabling you to set the protocol of the network.

4.4 "Others" Tab

0206-002 5-109 AHB01EDTP

0308-001 5-110 AHB01EDTP

Section 6

Supplementary Material

The samples of the pattern program data sheets are at-

tached as supplementary material.

0308-002 6-A AHB01EDTP
