3.4 "Control Data" Tab
The corresponding tab sheet appears when "Cylindrical", "Square", "De-
form (Simple)", "Deform (Complex)", "Connector (Simple)", "Connector
(Complex)", "Other Leaded (Simple)", "Other Leaded (Complex)", or
"BGA/CSP" is selected in the "Component shape" text box.
••
••
• Sheet Layout
When the "Control Data" tab is pressed, the "Control Data" tab sheet
appears.

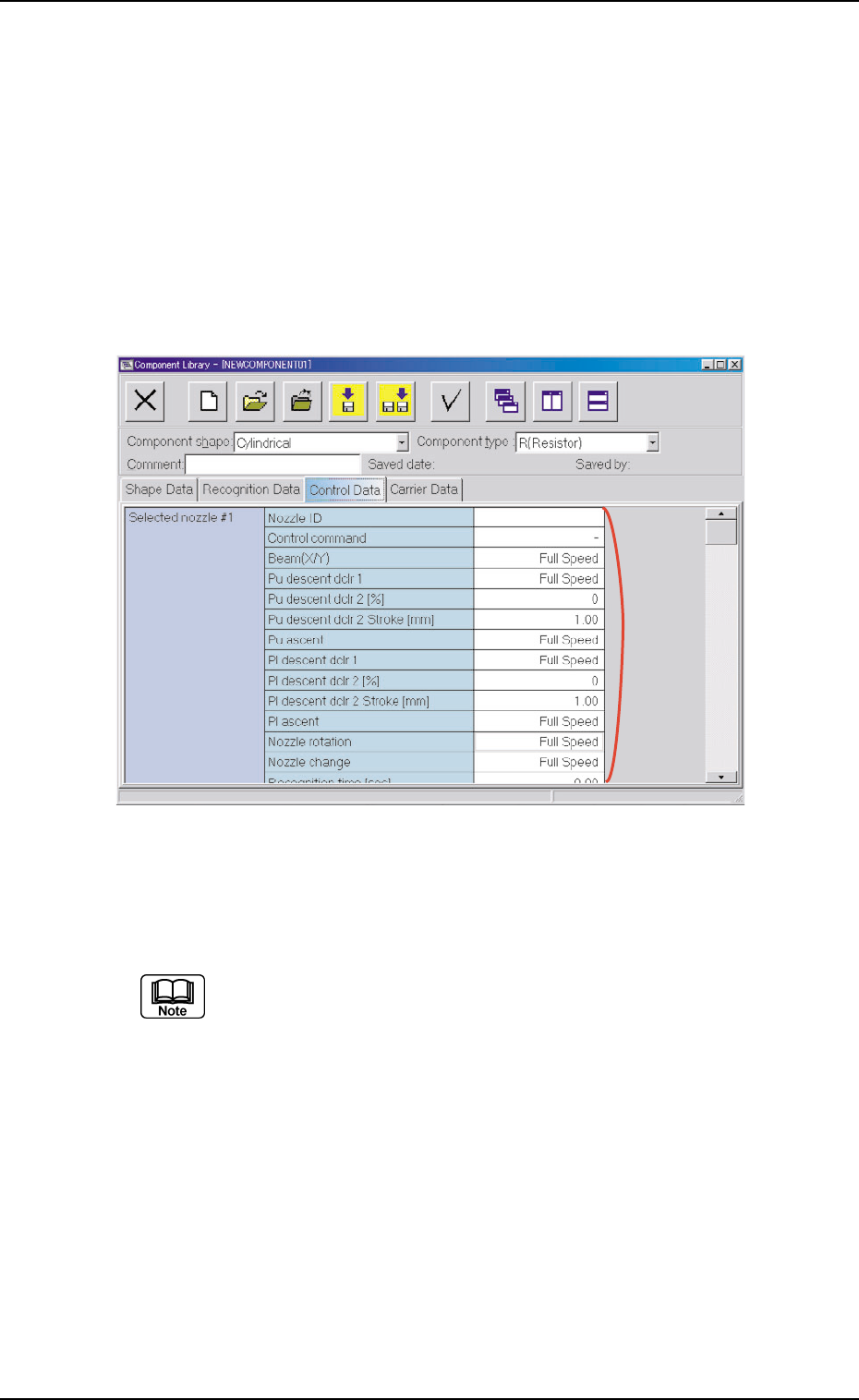

Fig. 3C24 "Control Data" Tab Sheet ("Cylindrical" Selected)
••
••
• Sheet Composition
Each parameter is displayed or can be entered.
Refer to "4.1.3 Basic Usage of Text Boxes" in "Section 2" for the
detailed information on how to enter parameters.
*1 Selected nozzle #1
Control command
Nozzle ID, Beam (X/Y), "Pu descent dclr 1", Pu descent dclr 2
[%], Pu descent dclr 2 Stroke [mm], Pu ascent, Pl descent dclr
1, Pl descent dclr 2 [%], Pl descent dclr 2 Stroke [mm], Pl as-
cent, Nozzle rotation, Nozzle change, Recognition time [sec],
Pu retention time [sec], Pl retention time [sec], Mvbl recog
retention time [sec], Fxd recog retention time [sec], Cmpnt
detection (Sensor), Air blow, and Air blow off timing [mm]
When "-" is set in the "Control command" text box, it is required to
enter parameters in these text boxes.
3.4 "Control Data" Tab
0308-004 3-36
*1
AHB01EDTP

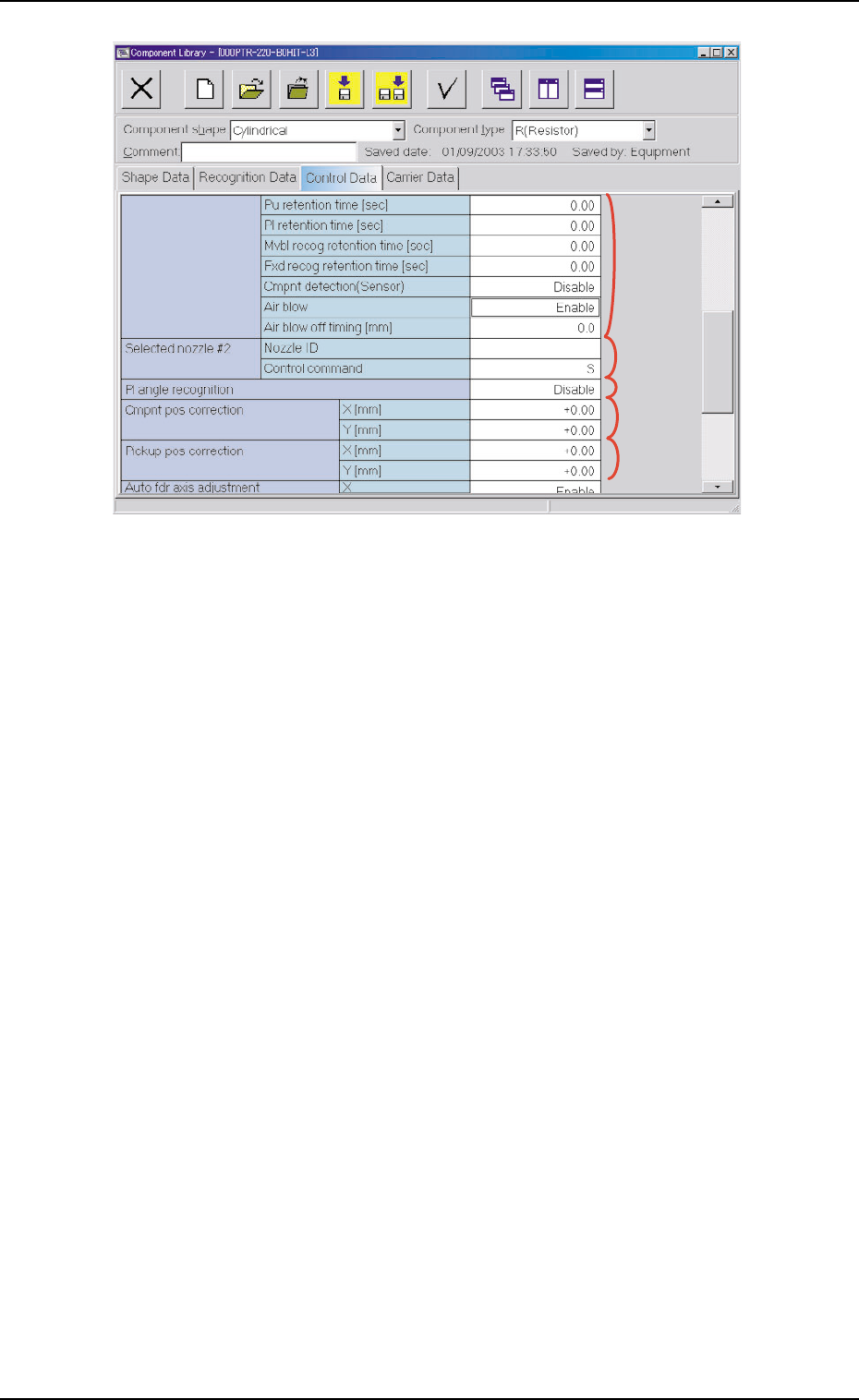

Fig. 3C25 "Control Data" Tab Sheet ("Cylindrical" Selected)
*2 Selected nozzle #2
Control command
Nozzle ID, Beam (X/Y), "Pu descent dclr 1", Pu descent dclr 2
[%], Pu descent dclr 2 Stroke [mm], Pu ascent, Pl descent dclr
1, Pl descent dclr 2 [%], Pl descent dclr 2 Stroke [mm], Pl as-
cent, Nozzle rotation, Nozzle change, Recognition time [sec],
Pu retention time [sec], Pl retention time [sec], Mvbl recog
retention time [sec], Fxd recog retention time [sec], Cmpnt
detection (Sensor), Air blow, and Air blow off timing [mm]
When "-" is set in the "Control command" text box, it is required to
enter parameters in these text boxes.
*3 Pl angle recognition
*4 Cmpnt pos correction X [mm], Y [mm],
*5 Pickup pos correction X [mm], Y [mm],
3.4 "Control Data" Tab
0308-003 3-37
*1
*2
*3
*4
*5
AHB01EDTP

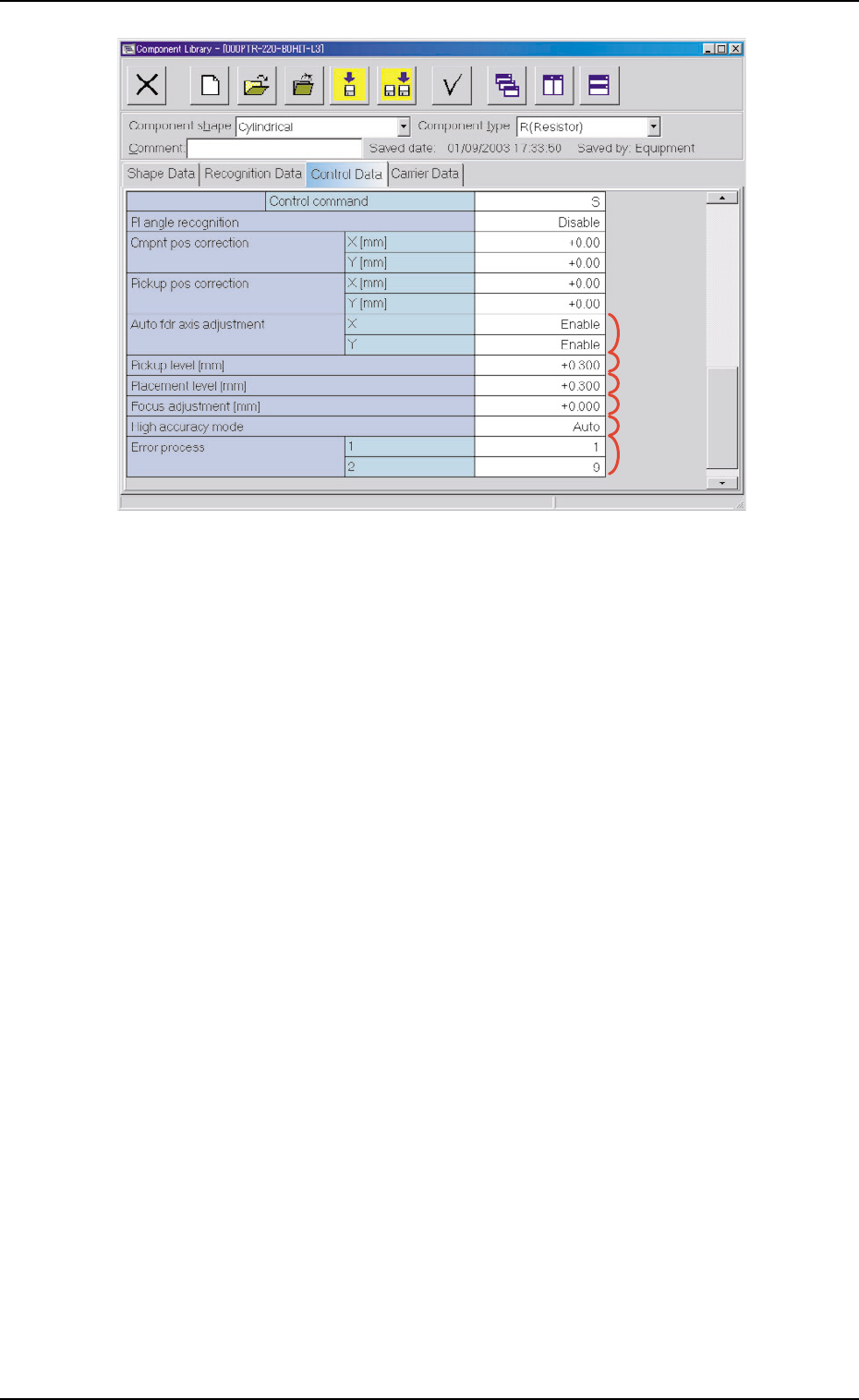

Fig. 3C26 "Control Data" Tab Sheet ("Cylindrical" Selected)
*6 Auto fdr axis adjustment X, Y
*7 Pickup level [mm], *8 Placement level [mm]
*9 Focus adjustment [mm], *10 High accuracy mode
*11 Error process 1, 2
3.4 "Control Data" Tab
0308-004 3-38
*11
*6
*7
*8
*9
*10
