0206-001 2-106 AHB01EDTP 4.3 "Placement Feeder Location" T ab Fig. 3B173 T able 3B35 Feeder Base No. Unit No. Reference Exclusive Carrier Stick Fdr . No. Fdr . No. Fdr . No. FB #3 VIB Feeder #1 30 3 301 to 310 …

Fig. 3B172

4.3 "Placement Feeder Location" Tab

[VIB. STK. UNIT] Icon

0308-001 2-105-1 AHB01EDTP

0206-001 2-106 AHB01EDTP

4.3 "Placement Feeder Location" Tab

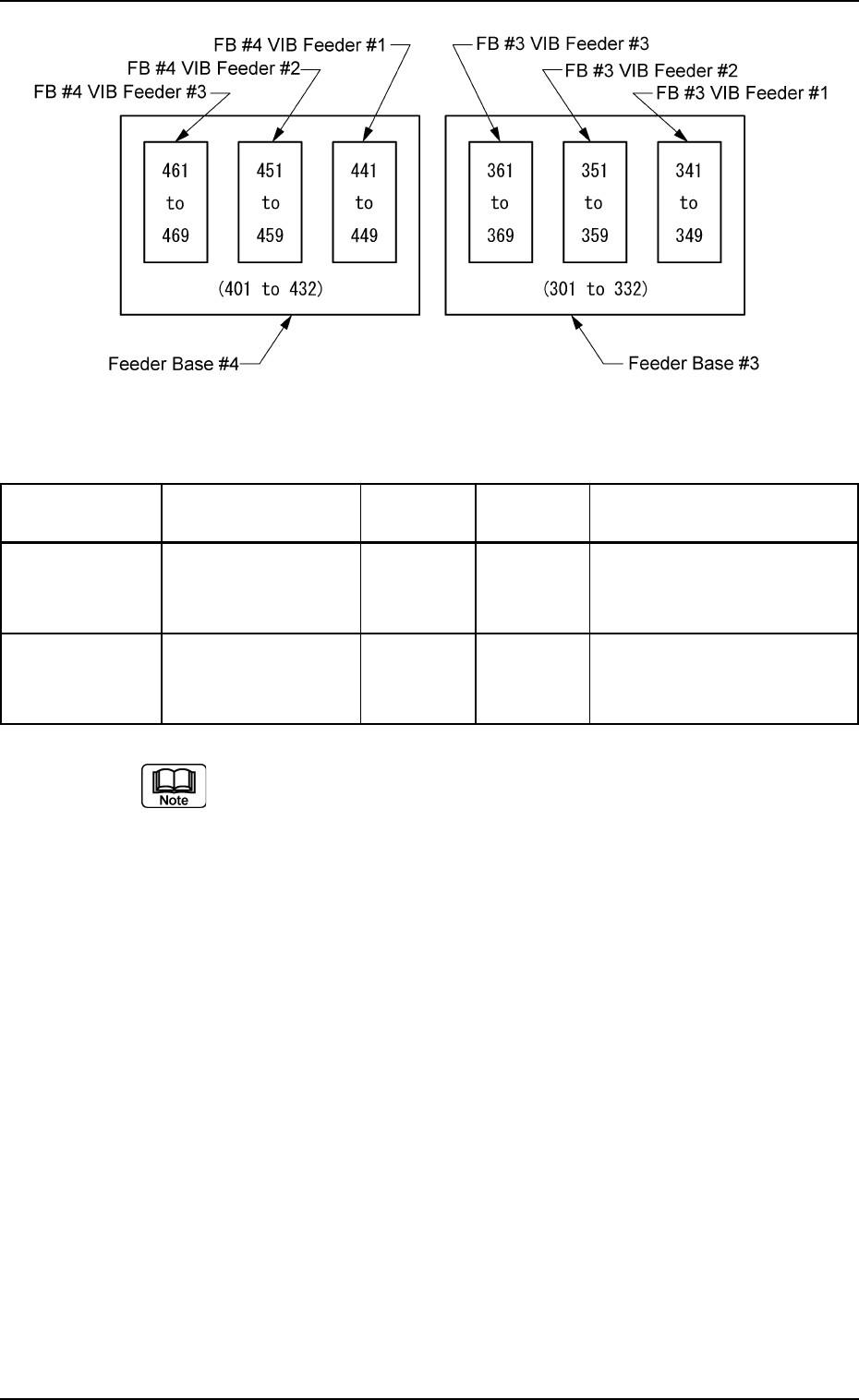

Fig. 3B173

Table 3B35

Feeder Base No. Unit No. Reference Exclusive Carrier Stick Fdr. No.

Fdr. No. Fdr. No.

FB #3 VIB Feeder #1 303 301 to 310 341 to 349

Feeder Base #3 FB #3 VIB Feeder #2 315 311 to 322 351 to 359

FB #3 VIB Feeder #3 327 323 to 332 361 to 369

FB #4 VIB Feeder #1 403 401 to 410 441 to 449

Feeder Base #4 FB #4 VIB Feeder #2 415 411 to 422 451 to 459

FB #4 VIB Feeder #3 427 423 to 432 461 to 469

(a) The reference feeder Nos. (Fdr. No.) are automatically allo-

cated when the vibratory stick feeders are specified.

(b) The exclusive feeder Nos. (Fdr. Nos.) indicate the ranges

occupied exclusively on the feeder base.

No tape feeder can be allocated to this feeder No. (Fdr. No.).

0308-002 2-107 AHB01EDTP

4.3 "Placement Feeder Location" Tab

(4) Make appear the vibratory feeder tab that corresponds to the refer-

ence feeder No. (Fdr. No.).

(5) Allocate the carrier stick components for the vibratory stick feeder.

Add an Fdr. No. with the [Add One Line] icon and allocate a compo-

nent with the [Component ID List] icon.

Select a component whose carrier type is "Vibratory Stick".

Up to 9 carrier sticks can be allocated to one vibratory stick

feeder.

Fig. 3B174

(6) Set parameters in the "Position X [mm]" and "Position Y [mm]" text

boxes.

Measure the distance between the reference position of the vibra-

tory stick feeder unit and the pick-up position and enter the values in

the text boxes.

(7) Check the component library data of the allocated component.

Confirm that correct direction, carrier type, width, and nozzle are

specified.

[Add One Line] Icon

[Component ID List] Icon
