T eaching plate (X [mm] (Horizontal) and Y [mm] (V ertical)) The set offset parameters are used to adjust the positional devia- tions compared with the design dimensions of the teaching plate position. The value based on…

Support up/down [mm]

This is the offset data for the origin position of the support up/down

axis which ascends or descends during P.C.B. positioning.

A plus (+) value decreases the ascending stroke during P.C.B. po-

sitioning.

Conveyor width [mm]

This is the offset data to adjust the absolute value for the conveyor

width. Enter the difference between the actually measured width

and the data width caused when the conveyor width is set up to the

width specified by a parameter.

When the actually measured width is narrower than the width speci-

fied by a parameter, a plus value must be entered.

Conveyor width (Medium) [mm]

(Not Available)

Pilot driven pin [mm]

(Not Available)

01 12-002 5-14

AHB01EDTP

2.1 "Offset Data" Tab

Teaching plate (X [mm] (Horizontal) and Y [mm] (Vertical))

The set offset parameters are used to adjust the positional devia-

tions compared with the design dimensions of the teaching plate

position.

The value based on the P.C.B. positioning coordinate system (PL-

XY coordinate system) must be entered in each text box.

These values are automatically calculated through the

manual axis teaching operation.

Fig. 3E15

When offset parameters are entered with "+" (plus) signs

for "X [mm]" and "Y [mm]", the X/Y head moves in the (+)

direction in the PL-XY coordinate system.

Teaching Plate (L [mm] (Height))

The set offset parameter is used to adjust the vertical (height direc-

tion) deviation compared with the design dimensions of the teach-

ing plate position.

When the teaching plate is installed lower than the design value, a

plus value must be entered.

0206-003 5-15

AHB01EDTP

2.1 "Offset Data" Tab

2.1.1.2 "Device Offset 2" Tab

• Sheet Layout

When the "Device Offset 2" tab is pressed in the "Device Offset" tab

sheet, the following tab sheet appears.

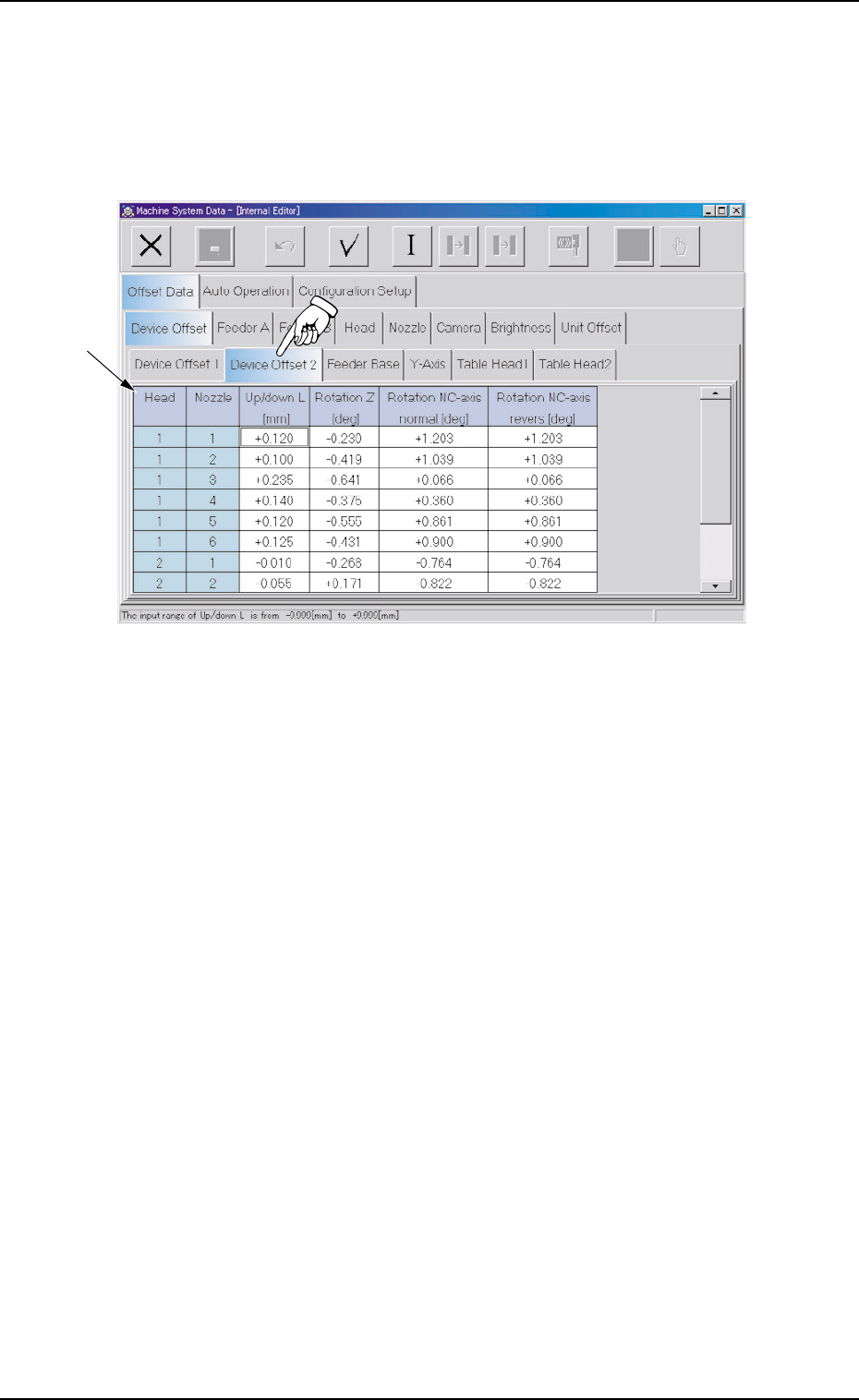

Fig. 3E16 "Device Offset 2" Tab Sheet

• Sheet Composition

*1 Offset Items

Set the following offset values.

Head1, Nozzle (#1 through #6), Up/down L [mm]

This offset data (offset data for the origin positions of the head up/

down axis) is used to adjust the distance between the P.C.B. posi-

tioning reference point on the upper surface of a P.C.B. and the

origins of the head #1 up/down axis.

0308-004 5-16

AHB01EDTP

2.1 "Offset Data" Tab
