X [mm] (Horizontal) and Y [mm] (V ertical) This offset data is used to adjust the positional deviations compared with the design dimensions of the feeder pick-up positions for each feeder No. (FDR. No.). The value based …

2.1.3.1 "Feeder Base #1", "Feeder Base #3", "Feeder Base #4",

and "Tray #2" Tabs

• Sheet Layout

When the "Feeder Base #1" tab is pressed in the "Feeder B" tab

sheet, the following tab sheet appears.

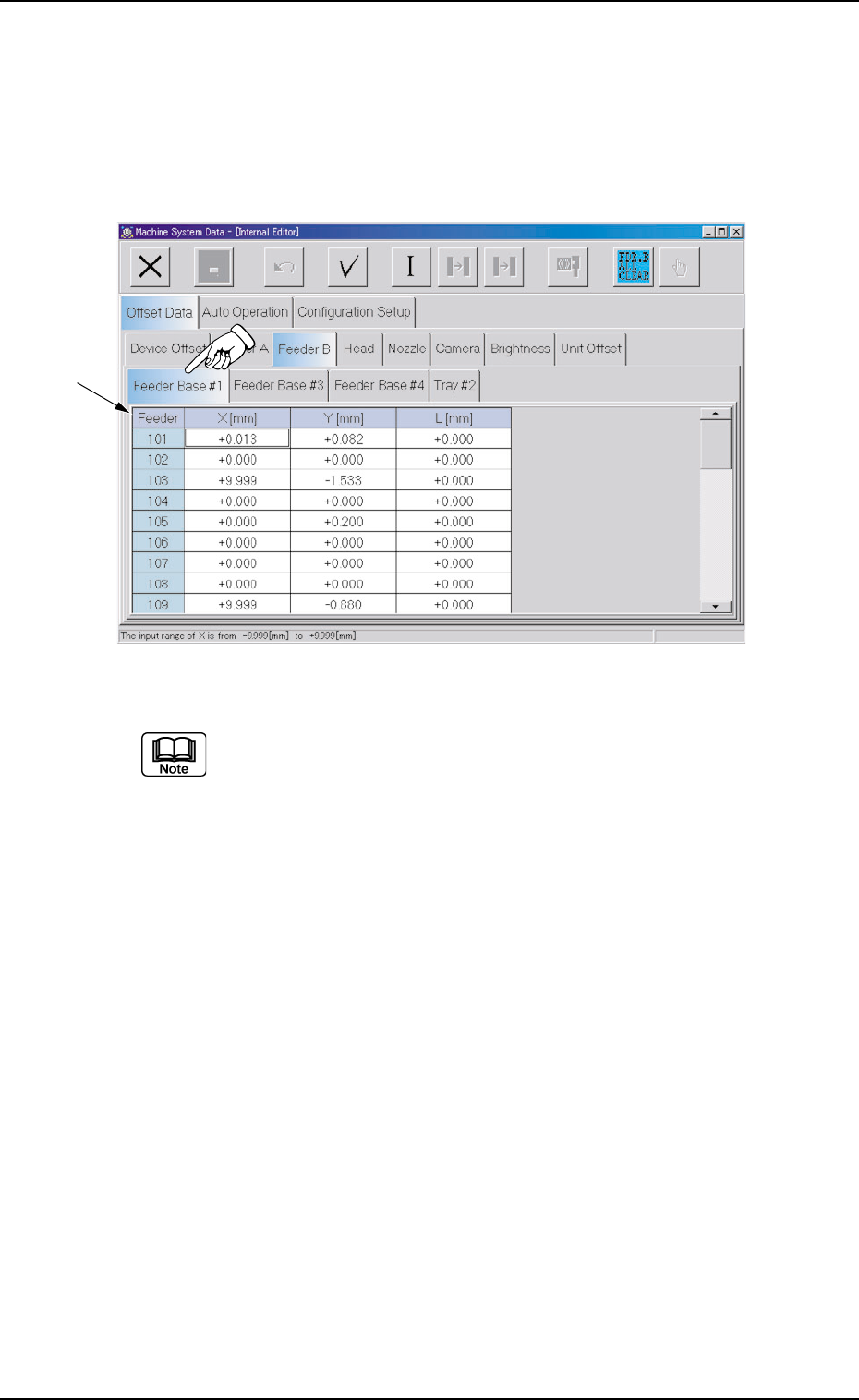

Fig. 3E29 "Feeder Base #1" Tab Sheet (Provided with Multi-Layer Tray Feeder 2)

(a) The tab sheet may look different, depending on which options are

selected.

(b) Almost the same navigations must be followed for the feeders (101

through 132 on Feeder Base #1, 301 through 332 on Feeder Base

#3, 401 through 432 on Feeder Base #4, and 701 through 799 and

801 through 899 on Tray 2) installed on each feeder base in the

"Feeder Base #1", "Feeder Base #3", "Feeder Base #4", and "Tray

#2" tab sheets.

• Sheet Composition

*1 Offset Items

Set the following offset values for each feeder (101 through 132 on

Feeder Base #1, 301 through 332 on Feeder Base #3, 401 through

432 on Feeder Base #4, and 701 through 799 and 801 through 899

on Tray #2).

0308-004 5-28

AHB01EDTP

2.1 "Offset Data" Tab

X [mm] (Horizontal) and Y [mm] (Vertical)

This offset data is used to adjust the positional deviations compared

with the design dimensions of the feeder pick-up positions for each

feeder No. (FDR. No.). The value based on the PL-XY coordinate

system must be entered in each text box.

Enter the positional deviations from the pick-up position for each

individual feeders, including the feeder (A) offset data, such that com-

ponents can be picked up at their centers.

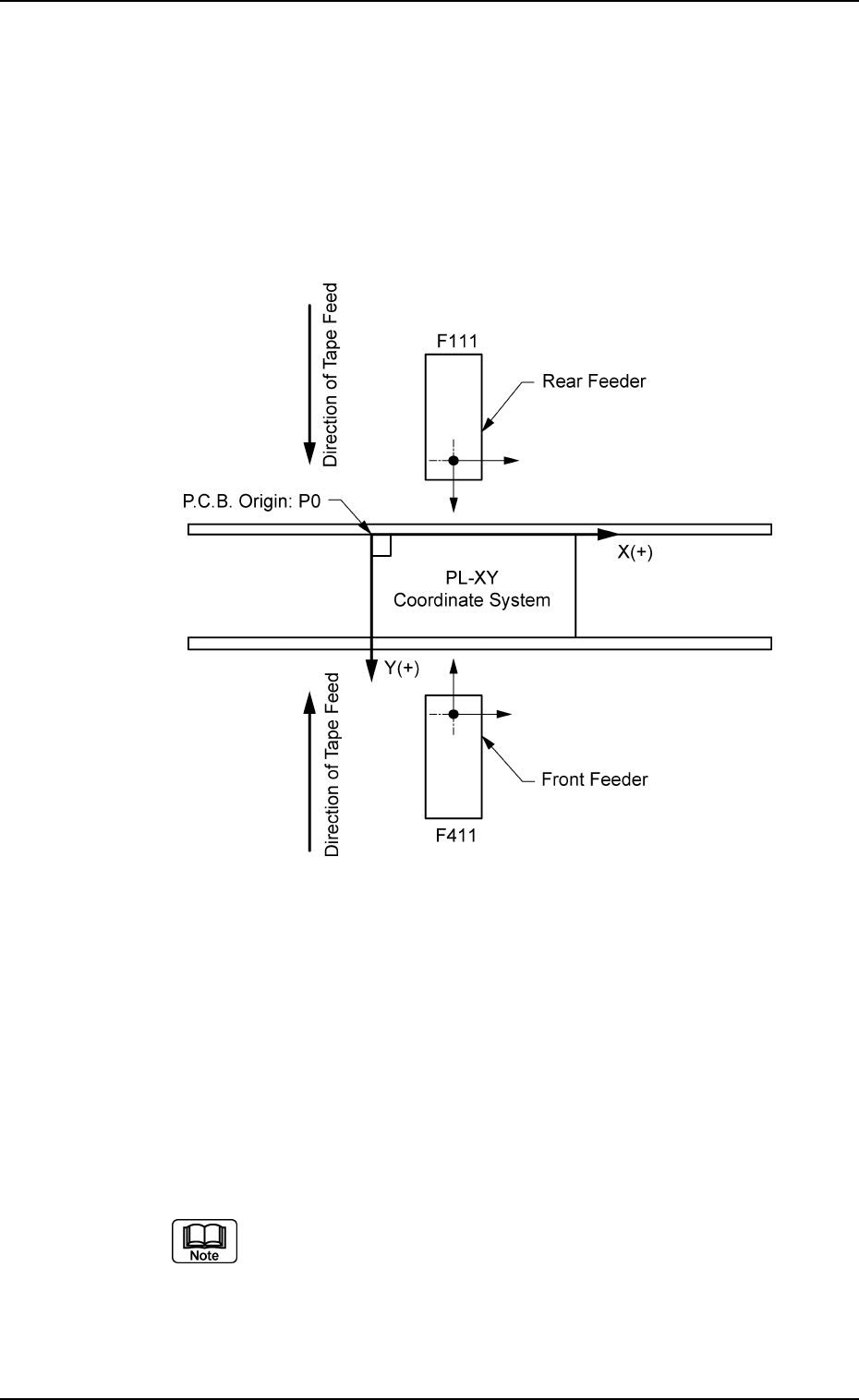

Fig. 3E30

When the automatic feeder axis adjustment mode is enabled for

the pick-up position, this data is updated automatically as to pick up

the component center based on the results of the component rec-

ognition for the component picked up during automatic operation.

When the offset parameters are set with a plus (+) sign, the com-

ponent pick-up directions (position) are changed to "X (+)" and "Y

(+)" shown in Fig. 3E30.

This does not apply to even feeder Nos. (even FDR. Nos.).

(Example: F102)

0206-003 5-29

AHB01EDTP

2.1 "Offset Data" Tab

L [mm] (Height)

The set parameters are used to correct the variation in the pick-up

height of each installed feeder.

These parameters are reflected on the descending stroke of the

head required to pick up a component.

Enter the positional deviations from the pick-up position for each

individual feeders, including the feeder (A) offset data.

Fig. 3E31

When a plus value is set as an offset as shown in Fig. 3E31, the

pick-up height is changed, concluding that the nozzle descending

stroke has increased.
