2.3 "Configuration Setup" Tab
2.3.3 "Feeder LED Lighting Pattern" Tab
The corresponding tab sheet enables the operator to specify a lighting
pattern of the status indicator (green LED) for the tape feeders.
••
••
• Sheet Layout
When the "Feeder LED Lighting Pattern" tab is pressed in the "Configu-
ration Setup" tab sheet, the following tab sheet appears.
Fig. 3E77-2 "Feeder LED Lighting Pattern" Tab Sheet
••
••
• Sheet Composition
*1 Time Items
The synchronizing two seconds are divided into eight segments and
"ON" or "OFF" can be allocated to each segment to create an op-
tional lighting pattern.
Optional lighting patterns can be specified for both cases - the pat-
tern at a normal shortage of components and the pattern at a short-
age of components in the alternate feeder mode.
Fig. 3E77-3 Example of Lighting Pattern Setting
*1
0308-001 5-87-1 AHB01EDTP
OFF OFF
ON ON ON ON ON
OFF
3. "Nozzle Data" Window
It can be specified which nozzle types are allocated for each address (1
through 10) of each nozzle stocker.
The nozzle data can also be set.
••
••
• Window Layout
Press the [SYSTEM] button on the main menu bar. The "SYSTEM SEL."
menu opens. When the [NOZZLE DT] button is pressed, the following
window opens.
Fig. 3E78 "Nozzle Data" Window
••
••
• Window Composition
*1 Tabs and Tab Sheets
The "Nozzle Data" window is provided with the following 2 tab
sheets. When a tab is pressed, the corresponding tab sheet ap-
pears.
Table 3E13
Tabs Description
Nozzle Stocker Data The corresponding tab sheet enables the operator to register the
nozzle types (Nozzle IDs to be allocated) for the addresses
(1 through 10) for each nozzle stocker.
Nozzle Data The corresponding tab sheet enables the operator to edit the nozzle
type data.
0206-002 5-88
AHB01EDTP
3. "Nozzle Data" Window
*1
*2

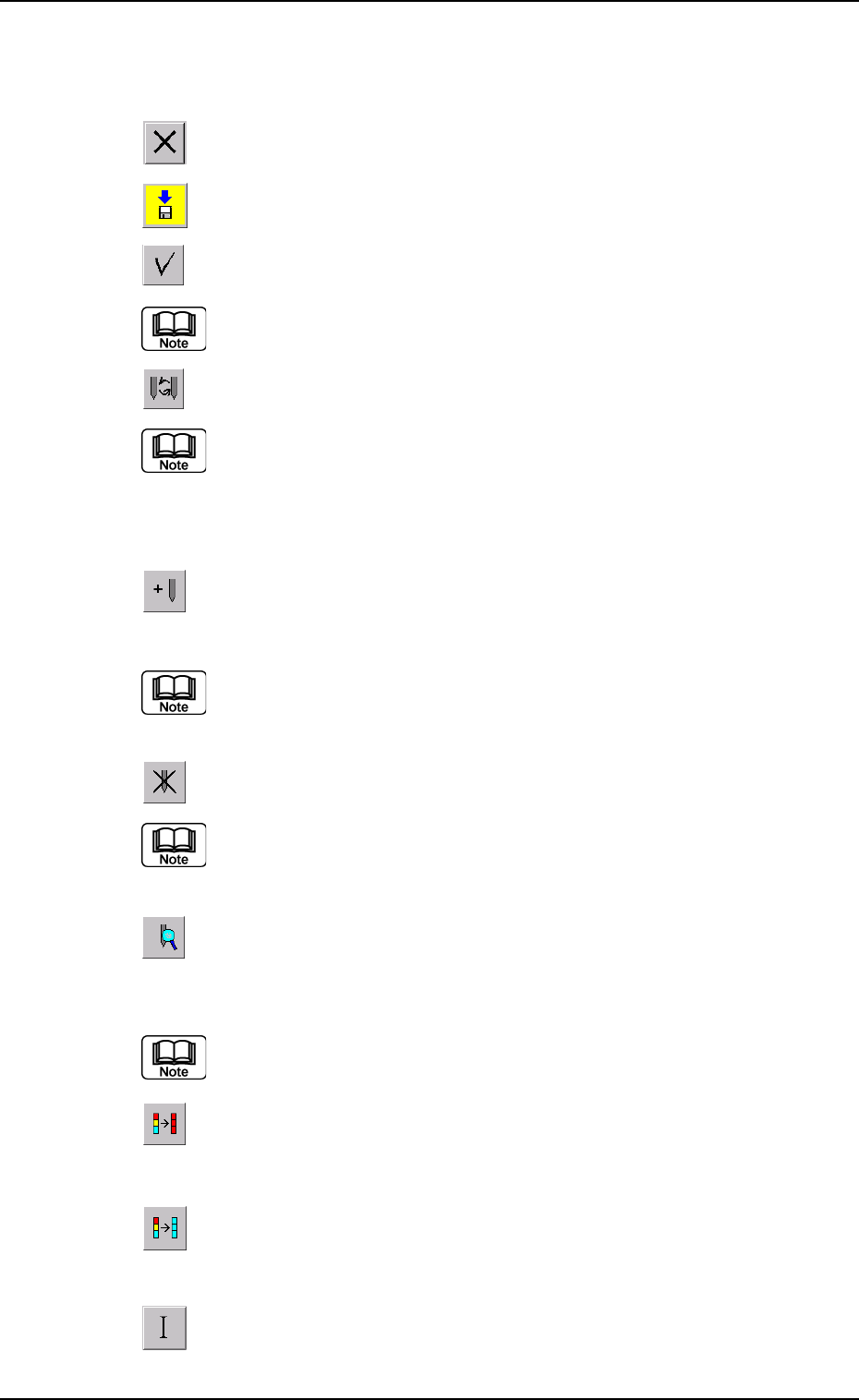

*2 Icons
The following functions can be executed.
: When pressed, this closes the "Nozzle Data" window.
: When pressed, this saves the entered parameters.
: When pressed, this checks the entered parameters.
When an error is found, an error message box opens.
: When pressed, this opens the "Nozzle Type" window,
enabling you to change the nozzle types.
(a) Double-clicking a text box also opens the "Nozzle Type"
window.
(b) Clicking the "Nozzle ID" label (title) selects the nozzle Nos.
on all heads at a time.
: When pressed, the "Nozzle Type Property" window
opens, enabling the operator to add a new nozzle type.
This function is available only in the "Nozzle Data" tab sheet.
: When pressed, this deletes the selected nozzle type.
This function is available only in the "Nozzle Data" tab sheet.
: When pressed, this opens the "Nozzle Type Property"
window for the selected nozzle type, enabling the op-
erator to change the nozzle type.
This function is available only in the "Nozzle Data" tab sheet.
: When pressed, this fills all the selected text boxes with
the parameter in the first text box.
: When pressed, this fills all the selected text boxes with
the parameter in the last text box.
: When pressed, this initializes the selection (sets the
defaults).
0206-002 5-89
