4 . 1 "Pattern Program Product History" T ab The corresponding tab sheet enables the operator to check the pattern program start and end date & time records (logs). • Sheet Layout When the "Pattern Pro…
Table 3D5
Tabs Description
Pattern Program Displayed are "Pattern Program Start Date & Time" and "Pattern
Product History Program End Date & Time".
Machine Performance Listed is the machine performance data such as "P.C.B. counter",
Data "Product P.C.B.", "Passed P.C.B.", "Product P.C.B. (B.B.R.) (option)",
"Total components", "Total handling errors", "Rate of handling errors
(%)", "Power on time", "Maintenance time", "Test mode time", "Total
handling errors/Total components", etc.
Handling Errors Per This tab sheet is provided with the four tabs - "Feeder Base #1",
Feeder "Feeder Base #3", "Feeder Base #4", and "Tray #2". Each tab sheet
displays a list of "Total Components", "Number of Errors (classified
by error types)", "Total Errors", "Rate of Error (%)", and "Shortage of
Cmpnt", "Component ID.", "Type", and "Width (mm)" for each feeder
No. (actual feeder No.).
0206-002 4-29 AHB01EDTP
4. "Pattern Program Management Data" Window
4.1 "Pattern Program Product History" Tab
The corresponding tab sheet enables the operator to check the pattern
program start and end date & time records (logs).
• Sheet Layout
When the "Pattern Program Product History" tab is pressed in the "Pat-
tern Program Management Data" window, the following tab sheet ap-
pears inside the window.
Fig. 3D17 "Pattern Program Product History" Tab Sheet
• Sheet Composition
*1 List of Pattern Program Logs
Up to 10 records (logs that show the number of times specified as
current pattern program) are displayed for each individual pattern
programs.
The start and end date & time records (logs) are also displayed for
the selected pattern program.
When there are more than 10 logs, the older ones are deleted one
by one.
01 12-001 4-30
AHB01EDTP
4.1 "Pattern Program Product History" Tab
*1
4.2 "Machine Performance Data" Tab
The corresponding tab sheet enables the operator to view the perfor-
mance data of the production model.
• Sheet Layout
When the "Machine Performance Data" tab is pressed in the "Pat-
tern Program Management Data" window, the following tab sheet ap-
pears inside the window.

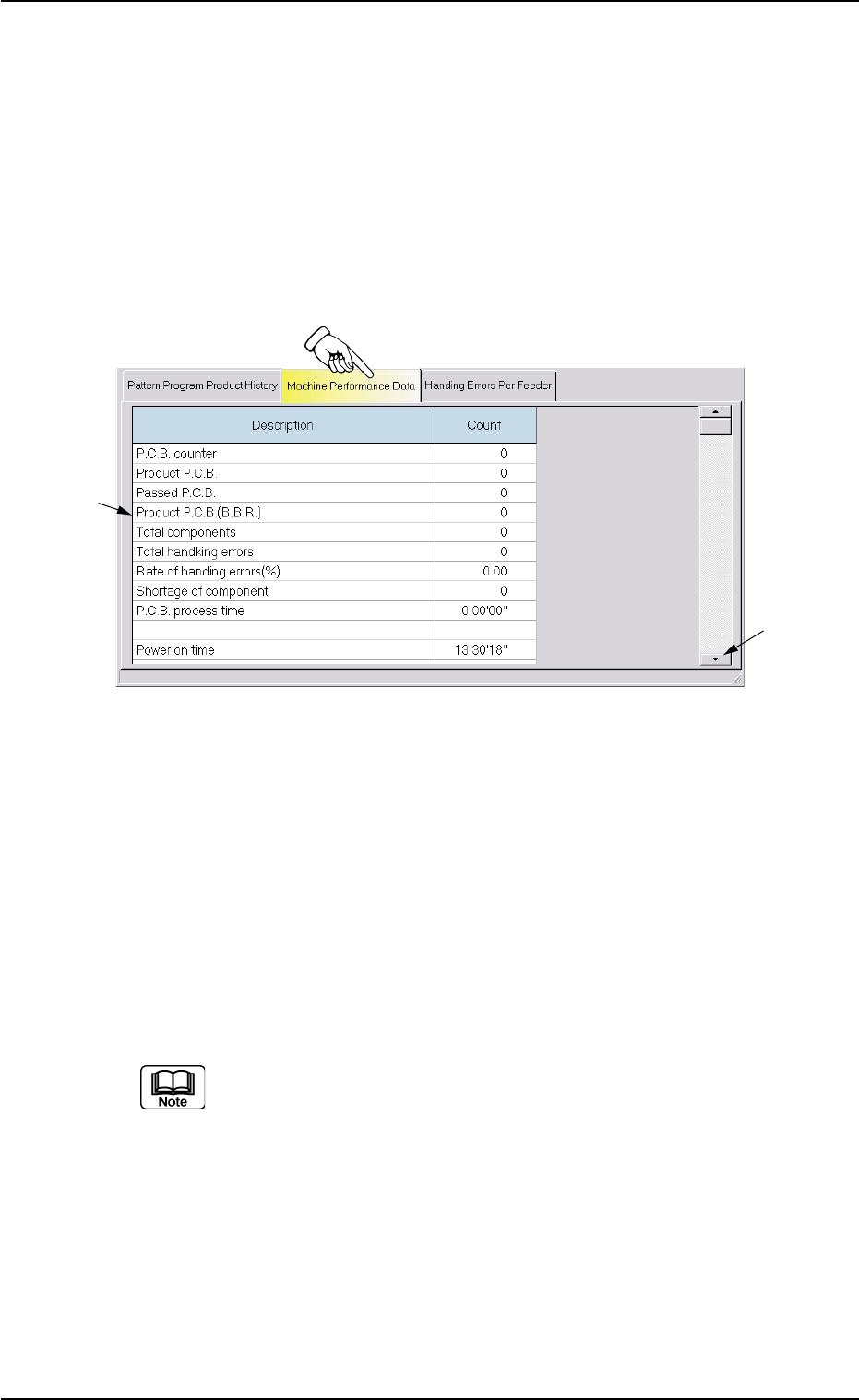

Fig. 3D18 "Machine Performance Data" Tab Sheet
• Sheet Composition
*1 Items
The following items are displayed.
(1) P.C.B. counter
Shown is the number of produced P.C.B.’s.
Counting is implemented when the X/Y beam is zeroed after com-
ponent placement operation (when a P.C.B. is finished).
When a pattern program is set several times as the current
program, the sum total is computed.
(2) Product P.C.B.
The number of produced unit P.C.B.’s on a multi-unit P.C.B. is
summed up. Counting is implemented when a unit P.C.B. is fin-
ished and the X/Y beam is zeroed.
When the bad board reject (B.B.R.) function (option) is used, de-
fective unit P.C.B.’s are excluded.
4.2 "Machine Performance Data" Tab
*2
*1
