AHB01EDTP
3.5.2 "Carrier Data" Tab Sheet (Vibratory Stick Components)
Fig. 3C28 Example of "Carrier Data" Tab Sheet (Vibratory Stick Components)
••
••
• Sheet Composition
Each parameter is displayed or can be entered.
Refer to "4.1.3 Basic Usage of Text Boxes" in "Section 2" for the
detailed information on how to enter parameters.
*1 Carrier data
Type, Direction, Pickup angle
*2 Rejected cmpnt disch pos
*3 Stick data
Stick feed time [sec]
3.5 "Carrier Data" Tab
*1
*2
*3
0308-004 3-41
AHB01EDTP
3.5 "Carrier Data" Tab
3.5.3 "Carrier Data" Tab Sheet (Tray Components)
Fig. 3C29 Example of "Carrier Data" Tab Sheet (Tray Components)
The tray components are used for the multi-layer tray feeder
(option).
••
••
• Sheet Composition
Each parameter is displayed or can be entered.
Refer to "4.1.3 Basic Usage of Text Boxes" in "Section 2" for the
detailed information on how to enter parameters.
*1 Carrier data
Type, Direction, Pickup angle
*2 Rejected cmpnt disch pos
*3 Tray data
Matrix X, Matrix Y, Height h [mm], Height H [mm], Side length X
[mm], Side length Y [mm], Pitch X [mm], Pitch Y [mm], Xfr speed,
Elevator speed, Matrix missing setting
0308-004 3-42
*1
*2
*3
AHB01EDTP
0308-004 3-43
4. Saving an active file of the component ID
The following describes how to save a newly created file (component
ID) or the edited parameters of the component ID.
••
••
• Operation Procedure
(1) Press the [Save] or the [Save As] icon on the toolbar.
: Save
When pressed, this saves the edited component ID (file),
replacing the original component ID (file) with the current
one.
: Save As
When pressed, this saves a newly created file (data of a
new component ID) or the edited file with another name
(component ID).
(2) When the [Save As] icon is pressed, the following "Save Compo-
nent Data" window opens.

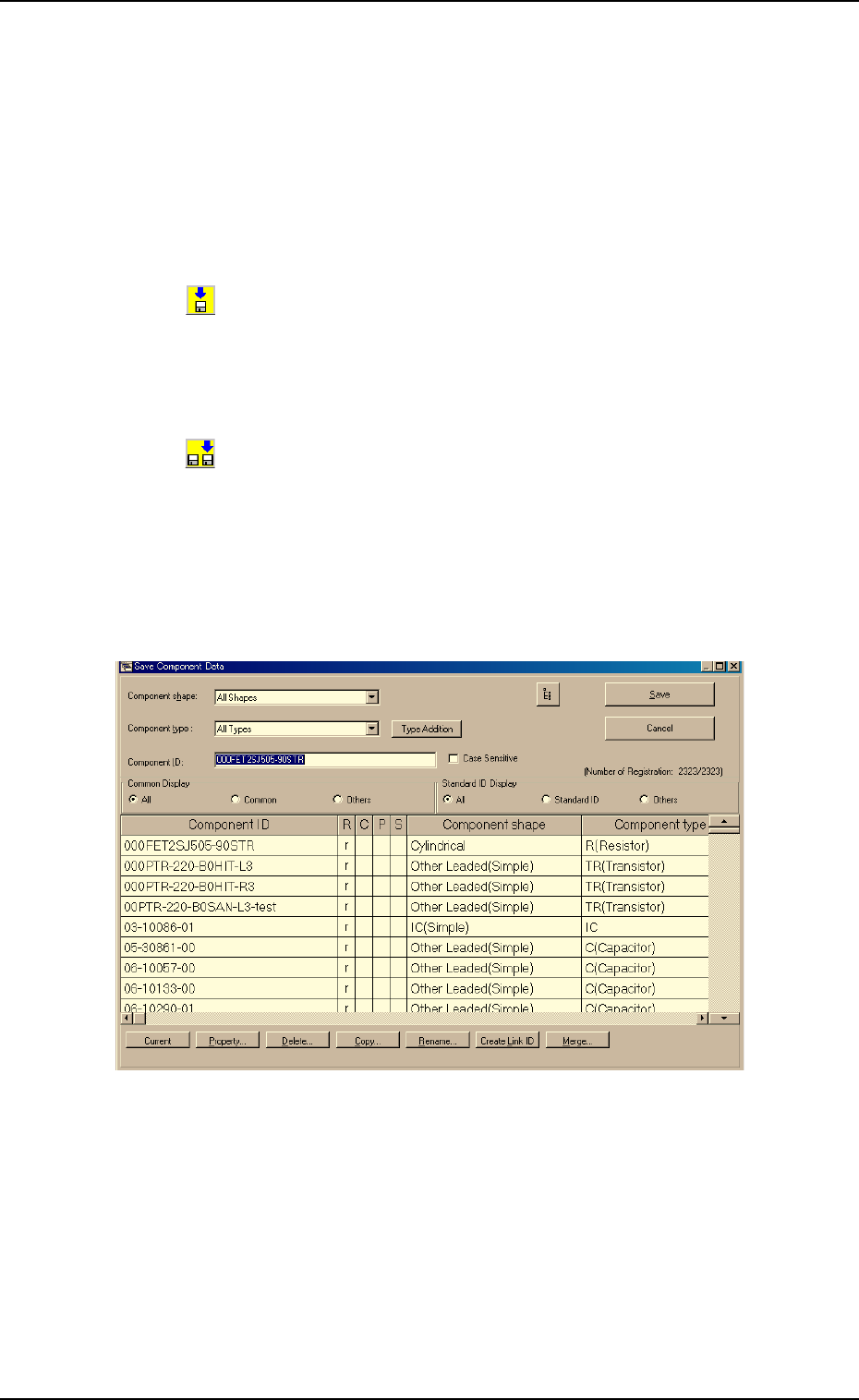

Fig. 3C30 "Save Component Data" Window
(3) Enter the pre-determined component ID as a file name in the "Com-
ponent ID" text box and press the [Save] button.
The data in the active edit window is saved as a file with the entered
component ID name.
4. Saving an active file of the component ID
