(4) Repetitive Pattern (Unit P .C.B. B.B.R. Enabled) Fig. 3B5 List of Required Data T able 3B13 Pattern Program Required Data Operation Data P .C.B. Data P .E.C. Recognition Data P .E.C. Recognition Mark Data Setup Data …
(3) Repetitive Pattern

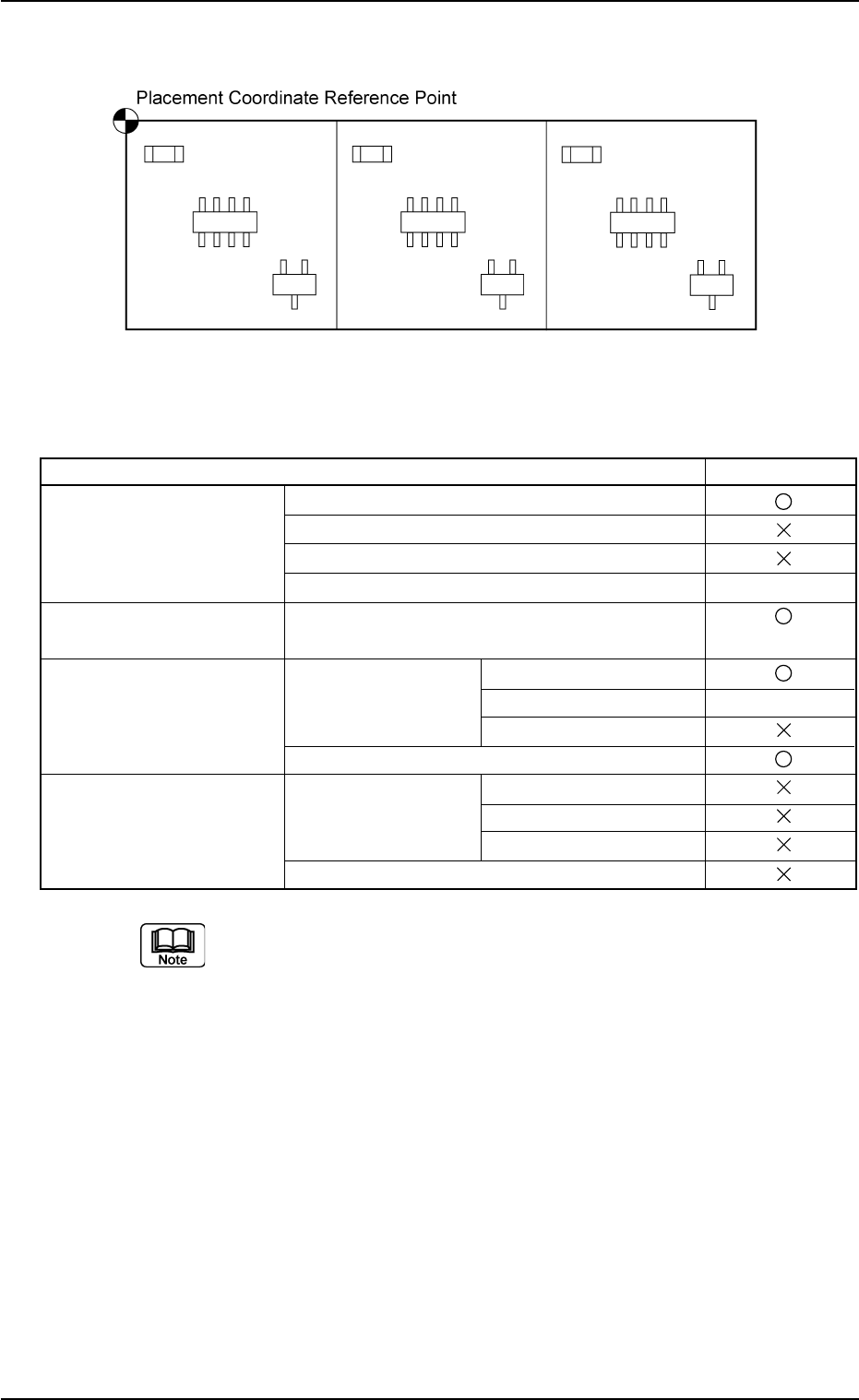

Fig. 3B4
List of Required Data Table 3B12
Pattern Program Required Data
Operation Data P.C.B. Data
P.E.C. Recognition Data
P.E.C. Recognition Mark Data
Setup Data Note (a)
Placement Feeder Base #1, #3, #4,
Feeder Location Vibratory Stick #1, #2, #3
Placement Data U1 Placement Data (P) Placement Data (P)
Unit Control Note (b)
Unit P.C.B. B.B.R.
Placement Data (O)
Placement Data Un Placement Data (P) Placement Data (P)
Unit Control
Unit P.C.B. B.B.R.
Placement Data (O)
(a) Specify these parameters (data) for automatic adjustment
of the conveyor width.
(b) Specify these parameters (data) according to the situational
changes.
0206-002 2-8
AHB01EDTP
2.1 Types of P.C.B.’s and Required Data
(4) Repetitive Pattern (Unit P.C.B. B.B.R. Enabled)

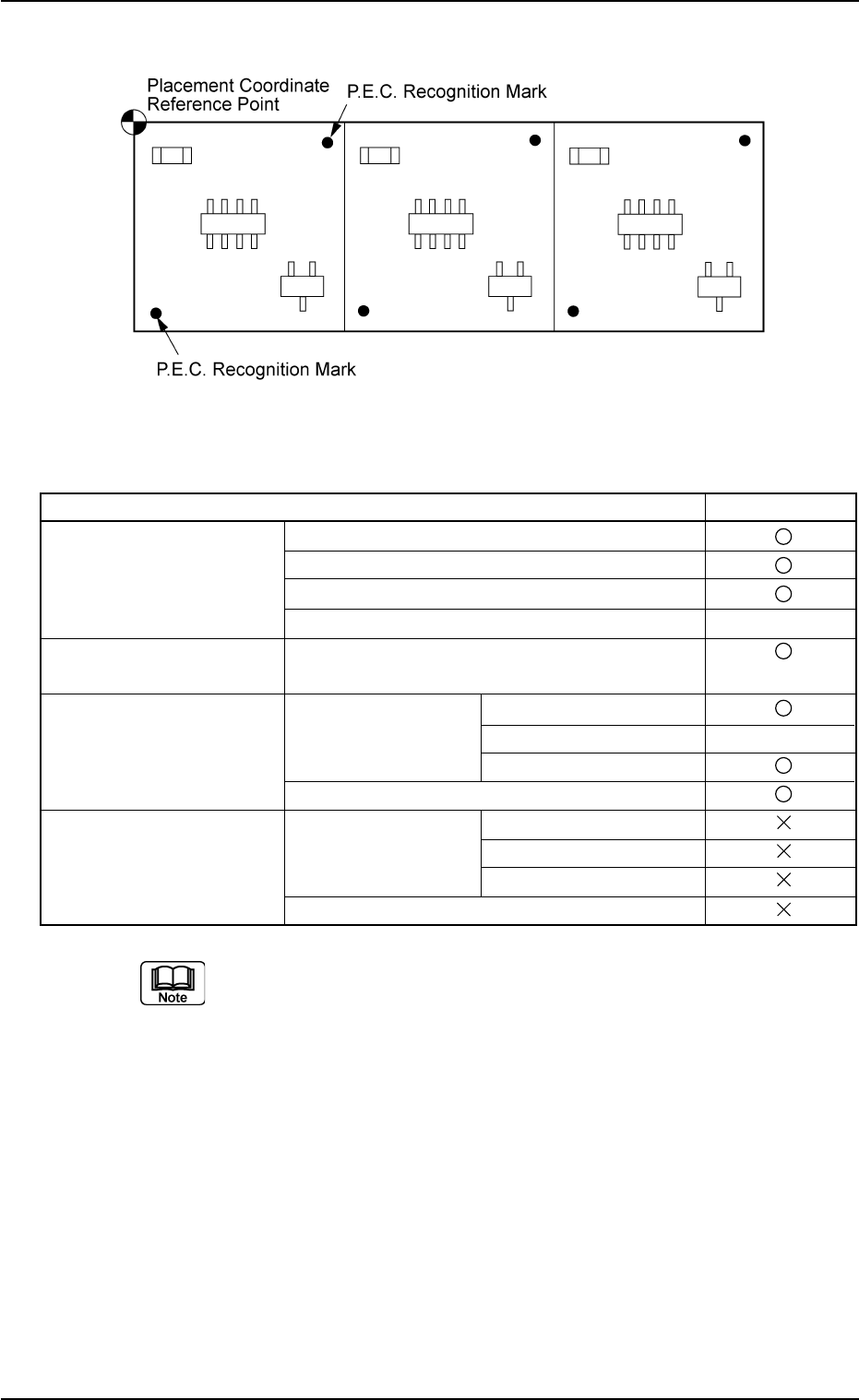

Fig. 3B5
List of Required Data Table 3B13
Pattern Program Required Data
Operation Data P.C.B. Data
P.E.C. Recognition Data
P.E.C. Recognition Mark Data
Setup Data Note (a)
Placement Feeder Base #1, #3, #4,
Feeder Location Vibratory Stick #1, #2, #3
Placement Data U1 Placement Data (P) Placement Data (P)
Unit Control Note (b)
Unit P.C.B. B.B.R.
Placement Data (O)
Placement Data Un Placement Data (P) Placement Data (P)
Unit Control
Unit P.C.B. B.B.R.
Placement Data (O)
(a) Specify these parameters (data) for automatic adjustment
of the conveyor width.
(b) Specify these parameters (data) according to the situational
changes.
0206-002 2-9 AHB01EDTP
2.1 Types of P.C.B.’s and Required Data
(5) Multi-Model Repetitive Pattern (Unit P.C.B. B.B.R. Enabled)

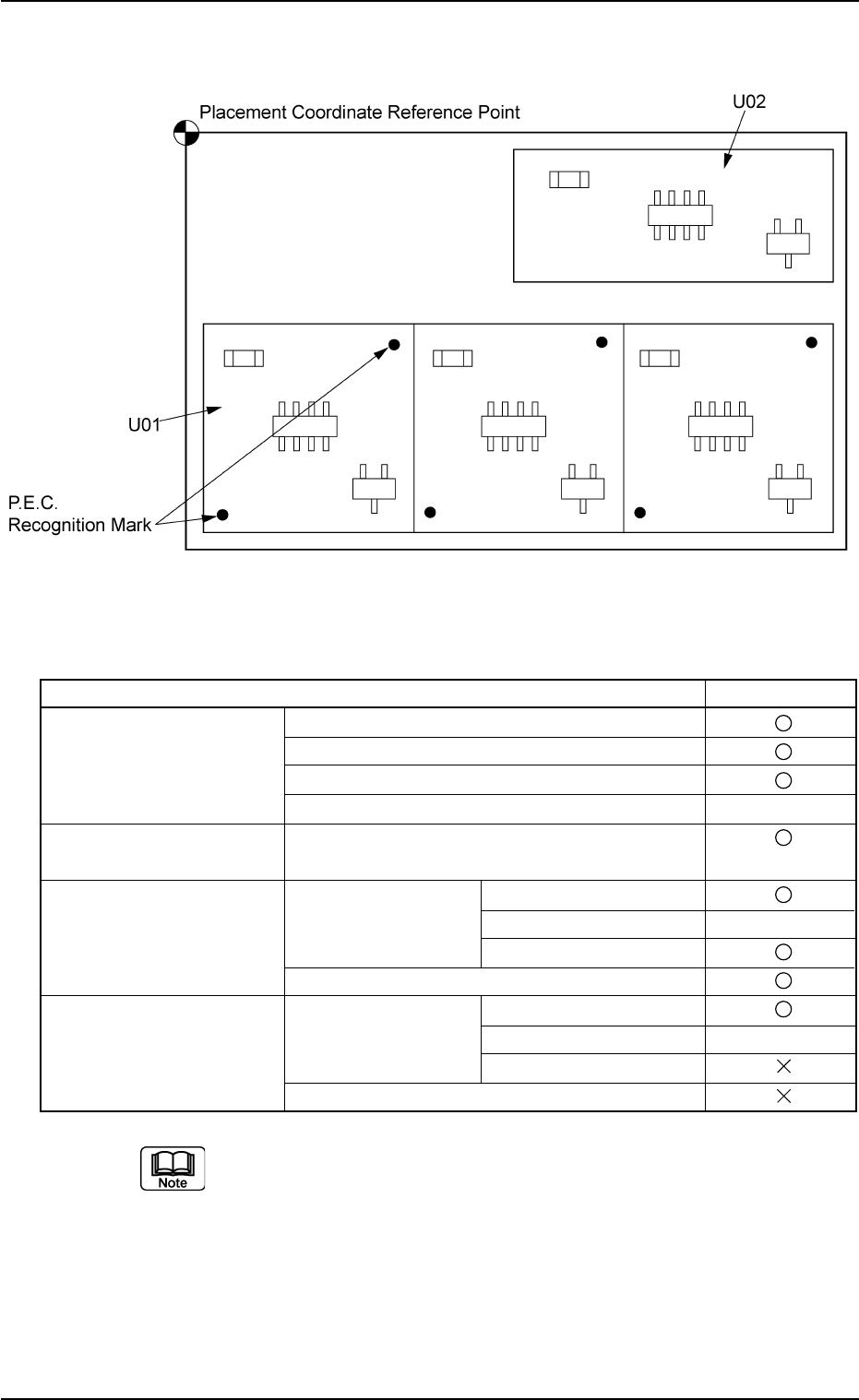

Fig. 3B6
List of Required Data Table 3B14
Pattern Program Required Data
Operation Data P.C.B. Data
P.E.C. Recognition Data
P.E.C. Recognition Mark Data
Setup Data Note (a)
Placement Feeder Base #1, #3, #4,
Feeder Location Vibratory Stick #1, #2, #3
Placement Data U1 Placement Data (P) Placement Data (P)
Unit Control Note (b)
Unit P.C.B. B.B.R.
Placement Data (O)
Placement Data Un Placement Data (P) Placement Data (P)
Unit Control Note (b)
Unit P.C.B. B.B.R.
Placement Data (O)
(a) Specify these parameters (data) for automatic adjustment
of the conveyor width.
(b) Specify these parameters (data) according to the situational
changes.
0206-002 2-10 AHB01EDTP
