2.1.5.5 "Nozzle Tip Position" T ab • Sheet Layout When the "Nozzle T ip Position" tab is pressed in the "Nozzle" tab sheet, the following tab sheet appears. Fig. 3E46 "Nozzle T ip Posit…

2.1.5.4 "Nozzle Center" Tab

• Sheet Layout

When the "Nozzle Center" tab is pressed in the "Nozzle" tab sheet,

the following tab sheet appears.

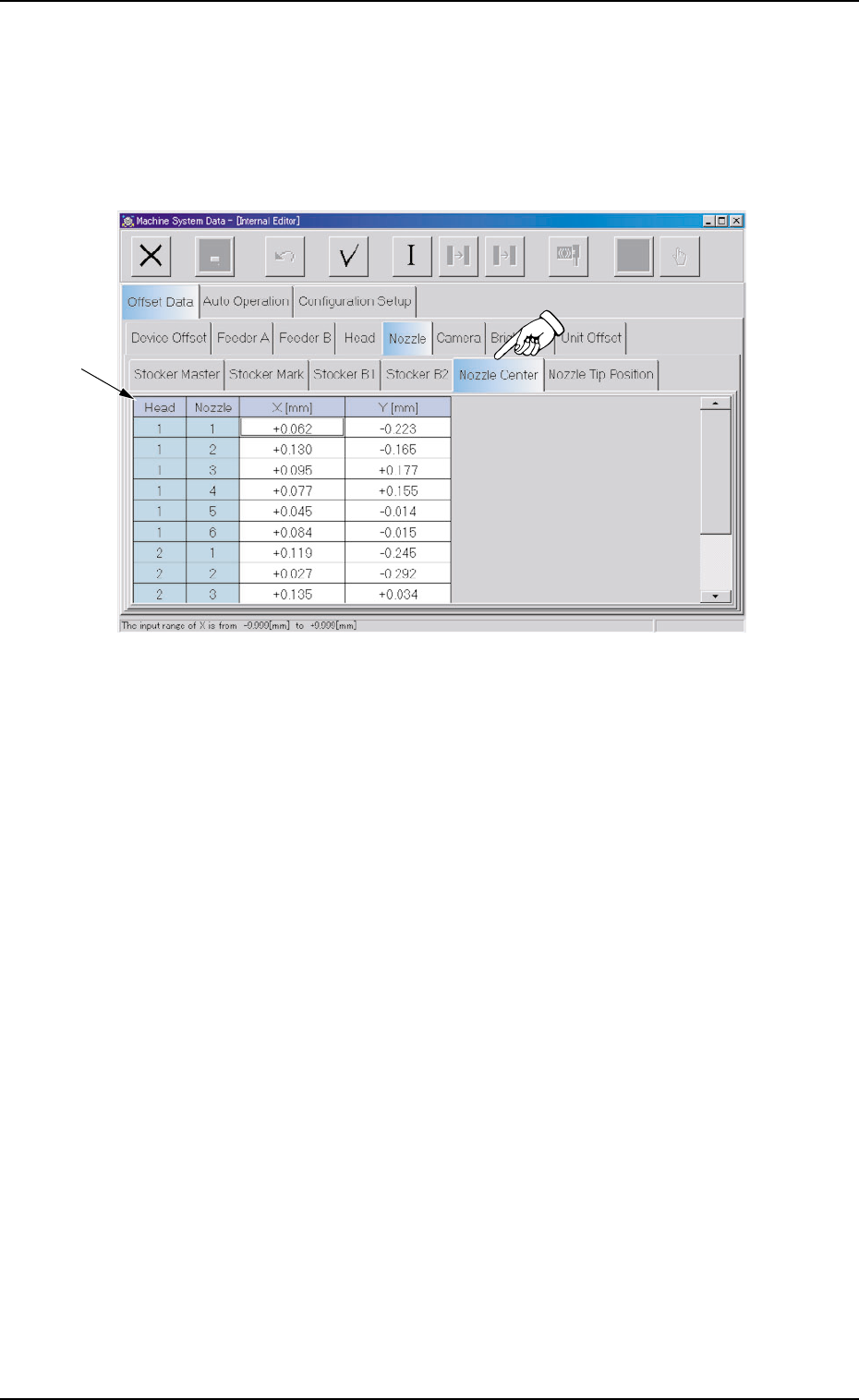

Fig. 3E45 "Nozzle Center" Tab Sheet

• Sheet Composition

*1 Offset Items

Set the following offset values.

Head (1 and 2) and Nozzle (1 through 6)

X [mm] (Horizontal) and Y [mm] (Vertical)

Set the offset data to adjust the deviations between the head rota-

tional center and the nozzle ends (the center of the diffusion plate).

2.1 "Offset Data" Tab

0308-004 5-43 AHB01EDTP

2.1.5.5 "Nozzle Tip Position" Tab

• Sheet Layout

When the "Nozzle Tip Position" tab is pressed in the "Nozzle" tab

sheet, the following tab sheet appears.

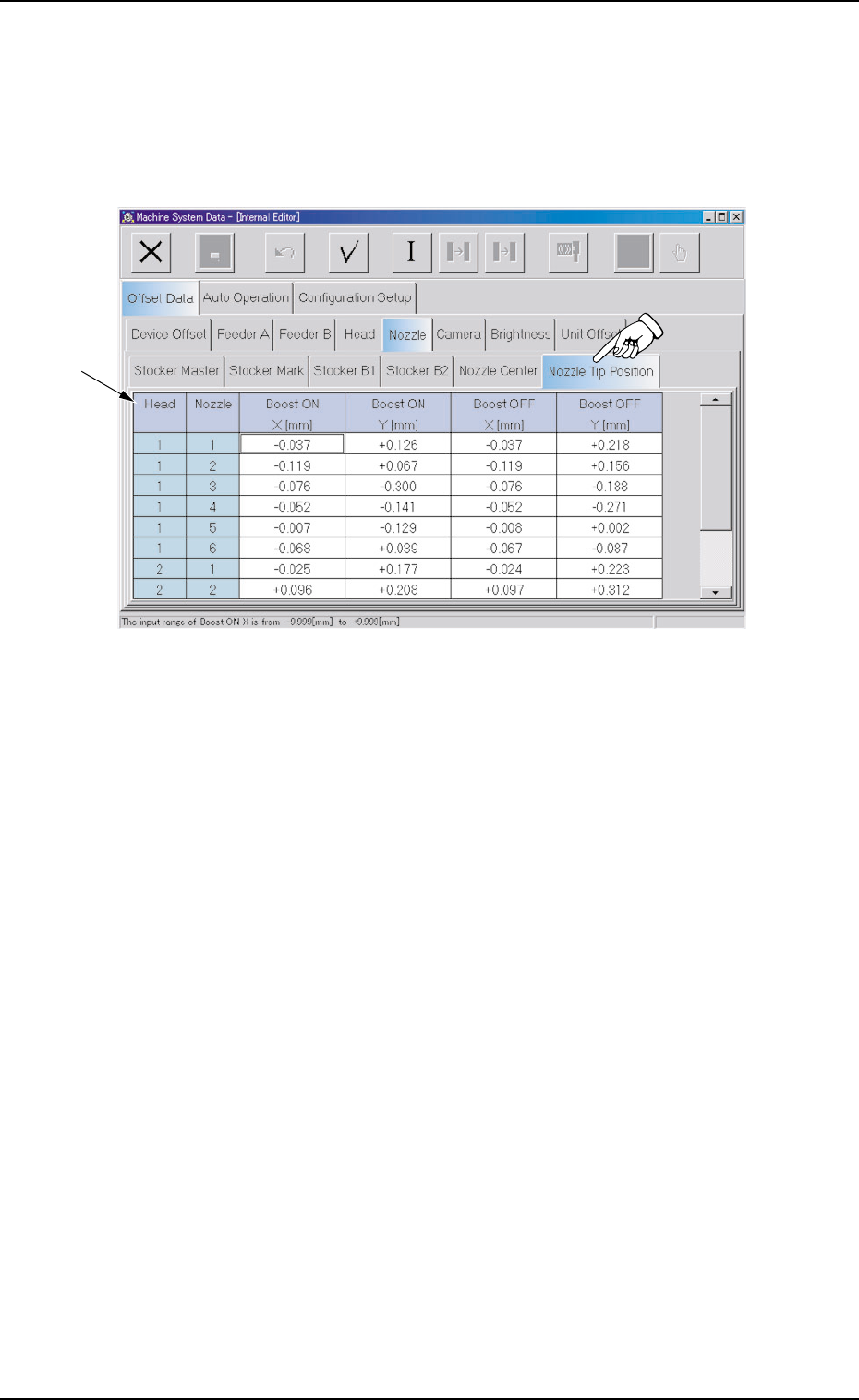

Fig. 3E46 "Nozzle Tip Position" Tab Sheet

• Sheet Composition

*1 Offset Items

Set the following offset values.

Head (1 and 2) and Nozzle (1 through 6)

Boost ON X [mm] (Horizontal) and Y [mm] (Vertical)

Boost OFF X [mm] (Horizontal) and Y [mm] (Vertical)

Set the offset data to adjust the deviations between the head rota-

tional center and the nozzle tips.

2.1 "Offset Data" Tab

0308-004 5-44 AHB01EDTP

2.1.6 "Camera" Tab

• Sheet Layout

When the "Camera" tab is pressed in the "Offset Data" tab sheet, the

following tab sheet appears.

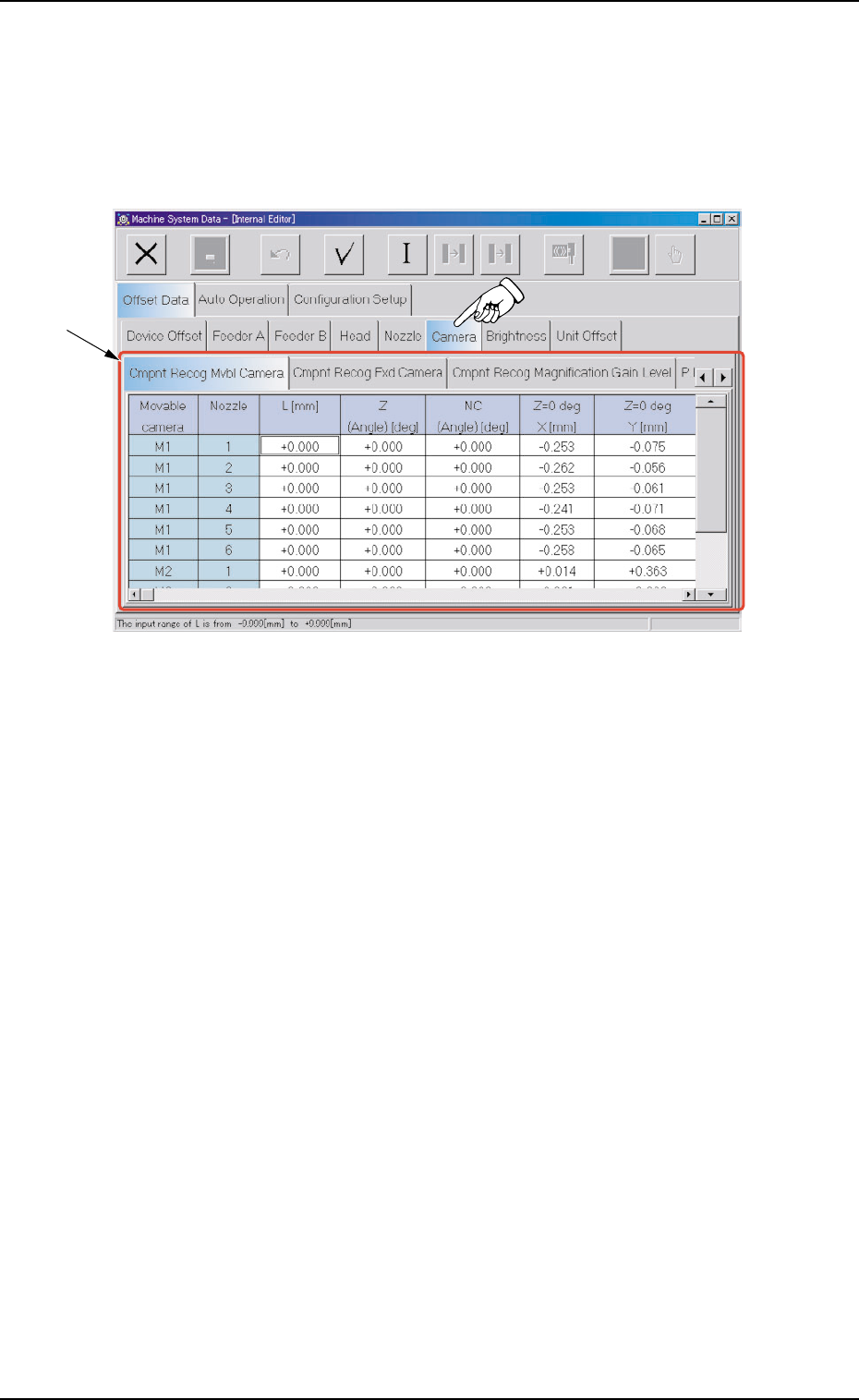

Fig. 3E47 "Camera" Tab Sheet

• Sheet Composition

*1 Tabs and Tab Sheets

The "Camera" tab sheet is provided with the following 4 tabs.

When each tab is pressed, the corresponding tab sheet appears.

2.1 "Offset Data" Tab

0308-004 5-45 AHB01EDTP
