2.1.6.3 "Component Recog Magnification Gain Level" Tab
• Sheet Layout
When the "Component Recog Magnification Gain Level" tab is pressed
in the "Camera" tab sheet, the following tab sheet appears.

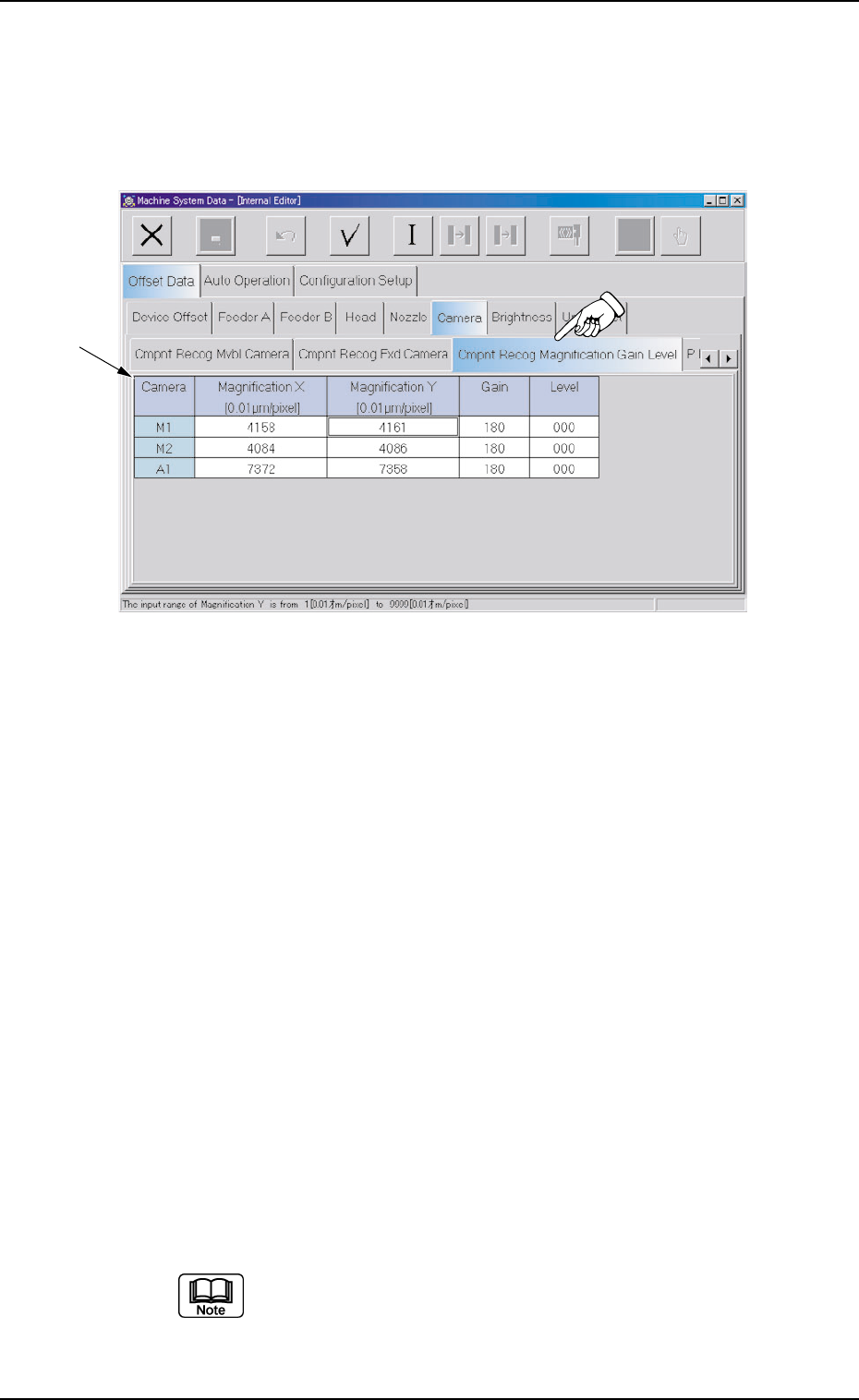

Fig. 3E52 "Component Recog Magnification Gain Level" Tab Sheet
• Sheet Composition
*1 Offset Items
Set the following offset values.
Magnification X [0.01
µµ
µµ
µm/pixel] (Horizontal) and Magnification
Y [0.01
µµ
µµ
µm/pixel] (Vertical) for Each Camera
These parameters are used to set the magnification of the compo-
nent recognition camera in increments of 0.01 µm per pixel.
The parameters are automatically calculated through teaching op-
eration which is performed, using the jig for magnification measure-
ment.
Gain and Level for Each Camera
These parameters are used to set amplifications at which the im-
age signals of the image captured by the component recognition
cameras are converted into the picture information representing
brightness.
The defaults are "180" for "Gain" and "0" (zero) for "Level" and re-
garded as standard gain and level.
(a) The lower the gain is, the better the contrast becomes.
(b) The smaller the level is, the brighter the whole view
becomes.
2.1 "Offset Data" Tab
*1
0308-004 5-51 AHB01EDTP
2.1.6.4 "P.E.C. Recog Camera" Tab
• Sheet Layout
When the "P.E.C. Recog Camera" tab is pressed in the "Camera"
tab sheet, the following tab sheet appears.

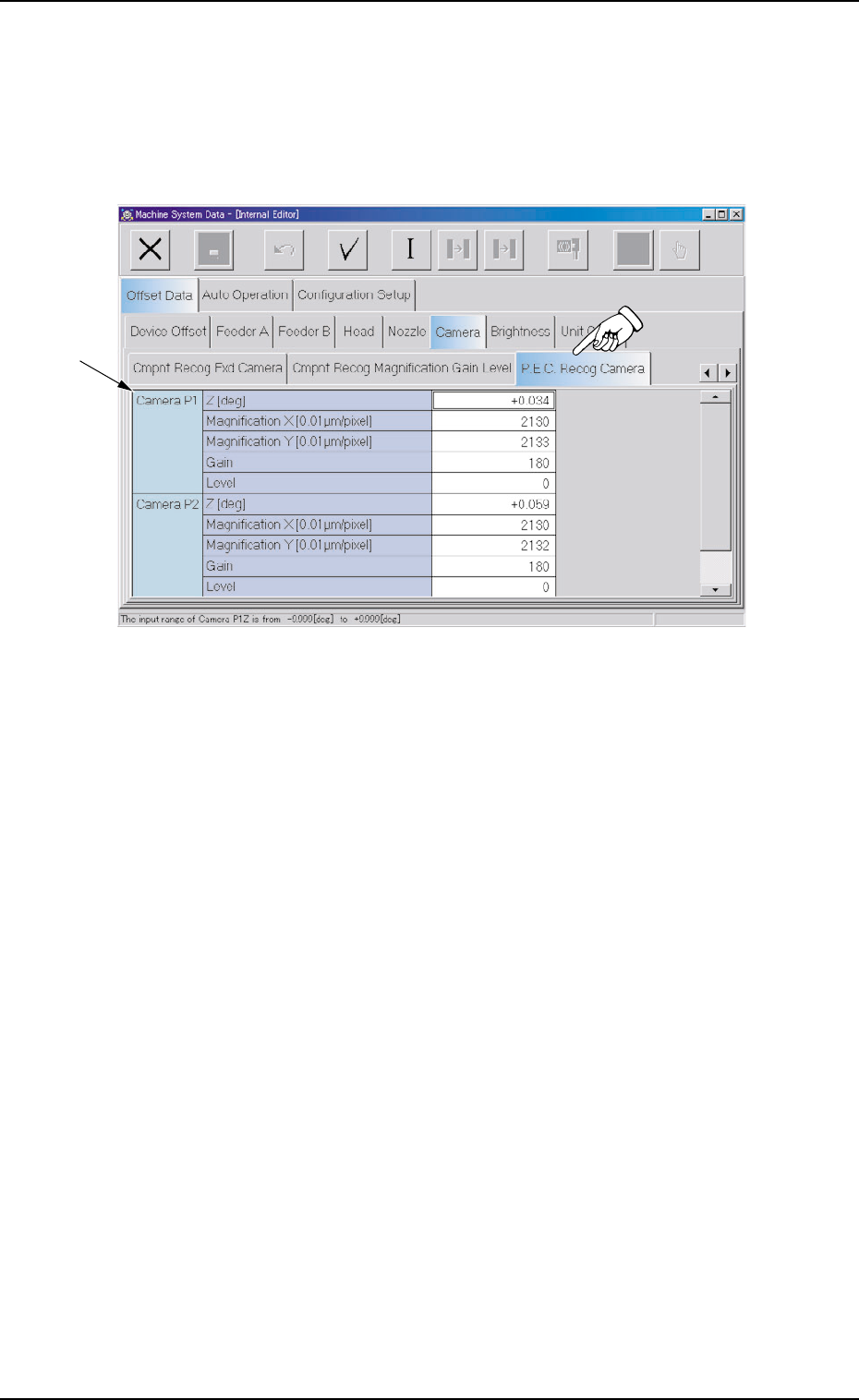

Fig. 3E53 "P.E.C. Recog Camera" Tab Sheet
• Sheet Composition
*1 Offset Items
Set the following offset values.
Z [deg] for Each Camera (P1 and P2)
The set parameters are used to adjust the horizontal swing of the
P.E.C. recognition cameras on the beam.
Set parameters representing the angular deviations in the scanning
coordinates of the cameras based on the P.C.B. positioning X/Y
coordinates (PL-XY coordinates: Origin P0).
When the camera scanning coordinates shift to the P.C.B. position-
ing X/Y coordinates system counterclockwise, the sign becomes
"Plus".
2.1 "Offset Data" Tab
0308-004 5-52 AHB01EDTP
*1
Magnification X [0.01
µµ
µµ
µm/pixel] (Horizontal) and Magnification
Y [0.01
µµ
µµ
µm/pixel] (Vertical) for Each Camera (P1 and P2)
These parameters are used to set the magnifications of the P.E.C.
recognition cameras in increments of 0.01 µm per pixel.
The parameters are automatically calculated through teaching op-
eration which is performed, using the jig for magnification measure-
ment.
Refer to "5.3 "P.E.C. Recog Camera & Beam Offset" Tab" of "Sec-
tion 6" in "Vol. 2: Operation (Supervisor)" for details.
Gain and Level for Each Camera (P1 and P2)
These parameters are used to set amplifications at which the im-
age signals of the image captured by the P.E.C. recognition cam-
eras are converted into the picture information representing bright-
ness.
The defaults are "180" for "Gain" and "0" (zero) for "Level" and re-
garded as standard gain and level.
(a) The lower the gain is, the better the contrast becomes.
(b) The smaller the level is, the brighter the whole view
becomes.
2.1 "Offset Data" Tab
0206-002 5-53 AHB01EDTP
