1. Outline of System Setting

The system setting session enables you to set up the machine system,

specify the nozzle-related items, and specify the machine properties.

1.1 Composition of System Setting

The system setting is composed of the following items.

System Setting

Reference Item Nos.

"Machine System Data" Offset Data (2.1)

Window

Auto Operation (2.2)

Configuration Setup (2.3)

"Nozzle Data" Window Placement Head/ (3.1)

Nozzle Data

Nozzle Data (3.2)

"MACH SETUP" Window Display Set (4.1)

Password (4.2)

Date & Time Dt (4.3)

Others (4.4)

Fig. 3E1

1.1 Composition of System Setting

0107-001 5-1 AHB01EDTP

1.2 "SYSTEM SEL." Menu

When the [SYSTEM] button on the main menu bar is pressed, the "SYS-

TEM SEL." menu opens.

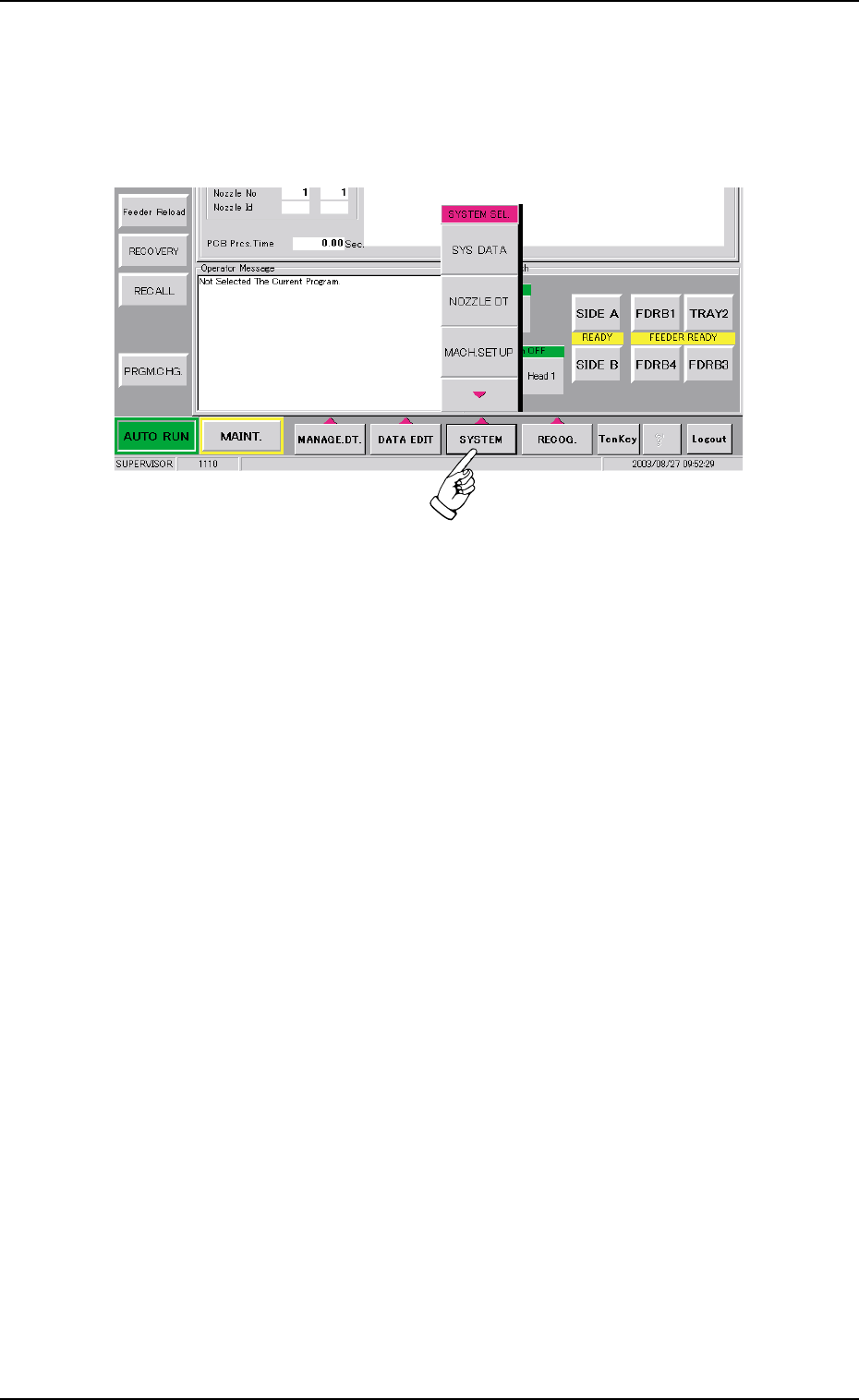

Fig. 3E2 "SYSTEM SEL." Menu

The "SYSTEM SEL." menu has three menu buttons. When one of the

buttons is pressed, the corresponding window opens.

[SYS DATA] Button : The "Machine System Data" window opens.

[NOZZLE DT] Button : The "Nozzle Data" window opens.

[MACH. SETUP] Button : The "MACH SETUP" window opens.

1.2 "SYSTEM SEL." Menu

0308-003 5-2 AHB01EDTP

1.3 Outline of Each Window

0107-001 5-3 AHB01EDTP

1.3 Outline of Each Window

Each window for system setting enables the operator to set the follow-

ing items.

"Machine System Data" Window

This enables the operator to set the offset data, the automatic op-

eration data, the light tower, and the alarm system.

"Nozzle Data" Window

This enables the operator to set the placement head/nozzle data

and the nozzle data.

"MACH SETUP" Window

This enables the operator to set the screen saver function and specify

the unit of length, a language, a password, date and time, etc.
