2.1.4 "Head" T ab • Sheet Layout When the "Head" tab is pressed in the "Offset Data" tab sheet, the following tab sheet appears. Fig. 3E32 "Head" T ab Sheet • Sheet Composition *1 …

L [mm] (Height)

The set parameters are used to correct the variation in the pick-up

height of each installed feeder.

These parameters are reflected on the descending stroke of the

head required to pick up a component.

Enter the positional deviations from the pick-up position for each

individual feeders, including the feeder (A) offset data.

Fig. 3E31

When a plus value is set as an offset as shown in Fig. 3E31, the

pick-up height is changed, concluding that the nozzle descending

stroke has increased.

0206-003 5-30

AHB01EDTP

2.1 "Offset Data" Tab

2.1.4 "Head" Tab

• Sheet Layout

When the "Head" tab is pressed in the "Offset Data" tab sheet, the

following tab sheet appears.

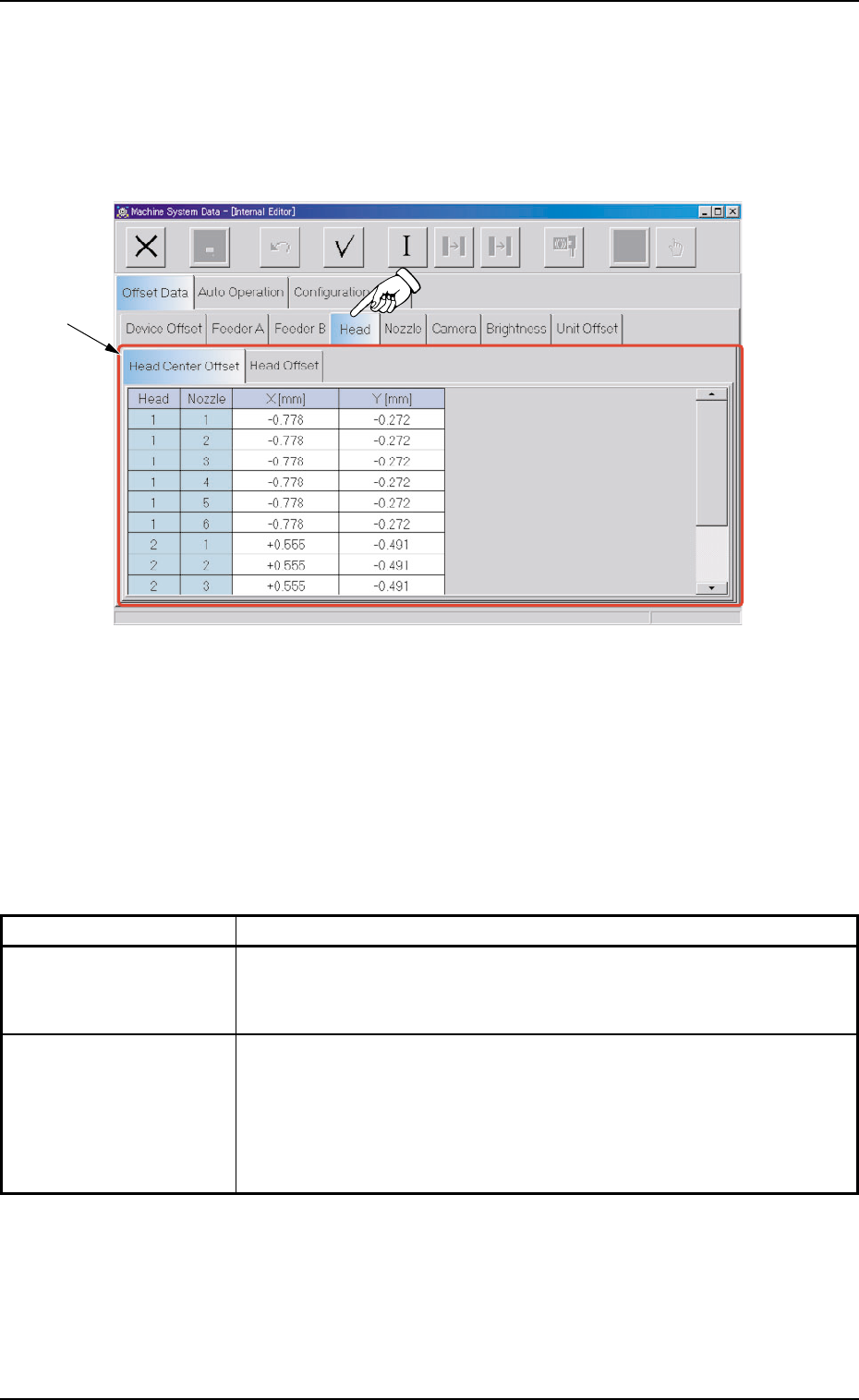

Fig. 3E32 "Head" Tab Sheet

• Sheet Composition

*1 Tabs and Tab Sheets

The "Head" tab sheet is provided with the following 2 tabs. When

each tab is pressed, the corresponding tab sheet appears.

Table 3E6

Tabs Description

Head Center Offset The corresponding tab sheet enables the operator to set the deviation

in the distance between the scanning coordinate center of the P.E.C.

camera and the head rotational center.

Head Offset This offset data is used to correct the positional deviation (placement

coordinates) caused due to the deviation of straightness (skew) of

each individual head up/down axis guides.

The set parameters are added to the amount of beam movement

(travel) for component placement.

0308-004 5-31

AHB01EDTP

2.1 "Offset Data" Tab

2.1.4.1 "Head Center Offset" Tab

• Sheet Layout

When the "Head Center Offset" tab is pressed in the "Head" tab sheet,

the following tab sheet appears.

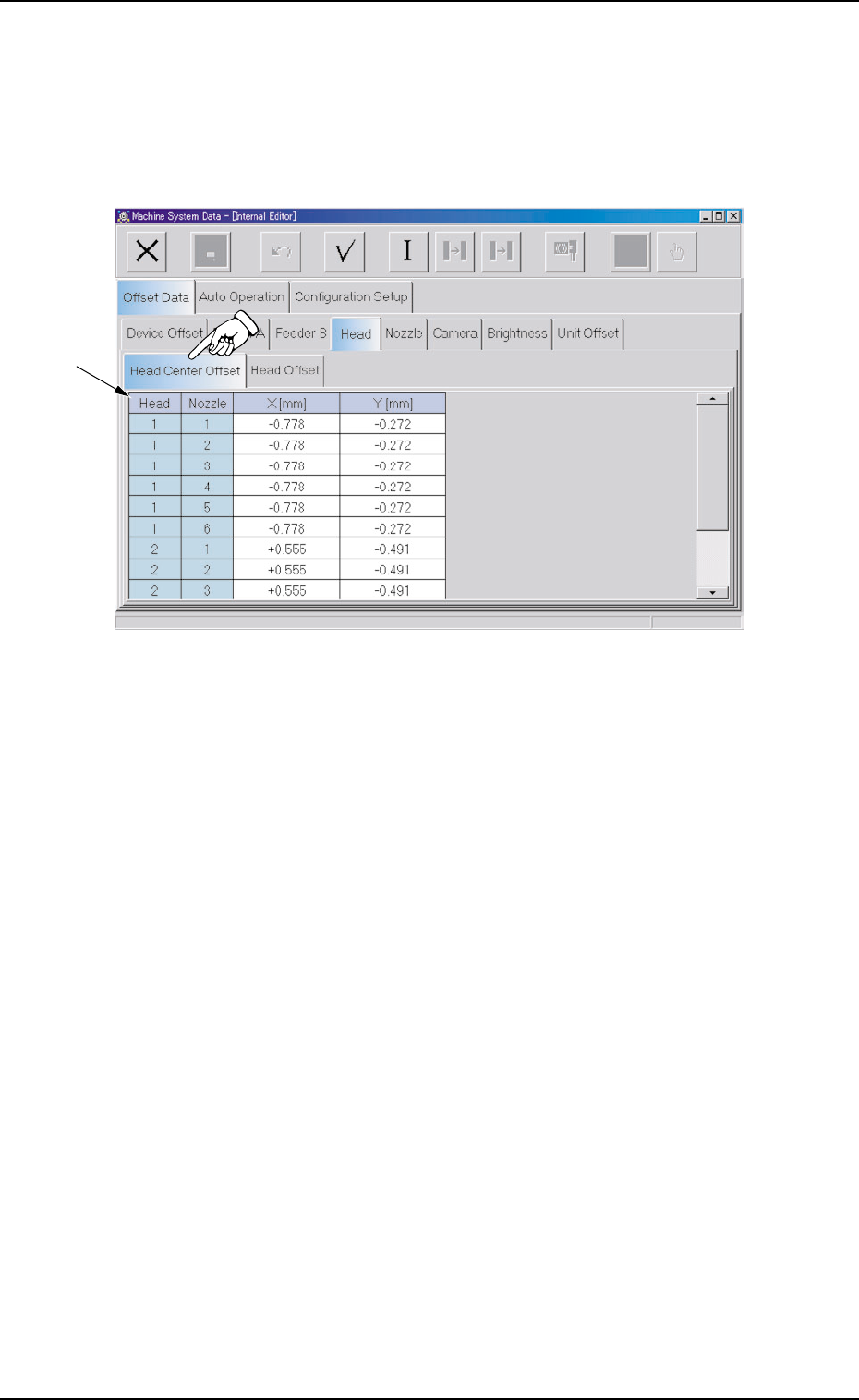

Fig. 3E33 "Head Center Offset" Tab Sheet

• Sheet Composition

*1 Offset Items

Set the following offset values.

Head 1 Nozzle 1 through 6

X [mm] (Horizontal) and Y [mm] (Vertical)

The NC axis is rotated such that a nozzle on Head #1 is specified

as Nozzle #1.

This offset data is used to set the distance between the scanning

coordinate center (actual position) of the P.E.C. camera on the beam

and the rotational center of Head #1 (Nozzle #1). The distances

deviating from the design values must be entered in each text box.

The parameters must be those viewed in the coordinate system

(PL-XY) for P.C.B. positioning.

As for Nozzles #2 through #6, the offset data is set in the same way

as Nozzle #1.

2.2 "Auto Operation" Tab
