2.1.1.5 "T able Head1" and "T able Head2" T abs Almost the same items as "T able Head1" are displayed in the "T able Head2" tab sheet and the navigations similar to those through t…
Fig. 3E22
0206-003 5-22
AHB01EDTP
P.C.B. Origin:
P0
Y-Axis Linear Guide
Beam (X1 and X2 Axes)
Y-Axis Linear Guide
Y(+)
X(+)
2.1 "Offset Data" Tab
2.1.1.5 "Table Head1" and "Table Head2" Tabs
Almost the same items as "Table Head1" are displayed in the
"Table Head2" tab sheet and the navigations similar to those
through the "Table Head1" tab sheet can be followed through
the "Table Head2" tab sheet.
• Sheet Layout
When the "Table Head1" or the "Table Head2" tab is pressed in the
"Device Offset" tab sheet, the following tab sheet appears.
Fig. 3E23 "Table Head1" Tab Sheet
• Sheet Composition
*1 Offset Items
Set the following offset values.
Grid
Enter the deviations (based on the specified distance) that will be
caused when Head #1 has moved by the specified distance from
the P.C.B. positioning reference to each grid (X Direction: X1 through
X23, Y Direction: Y1 through Y15).
These values are automatically calculated through teaching opera-
tions and entered in each text box.
0308-004 5-23
AHB01EDTP
*1
2.1 "Offset Data" Tab
2.1.2 "Feeder A" Tab
• Sheet Layout
When "Feeder A" tab is pressed in the "Offset Data" tab sheet, the
following tab sheet appears.

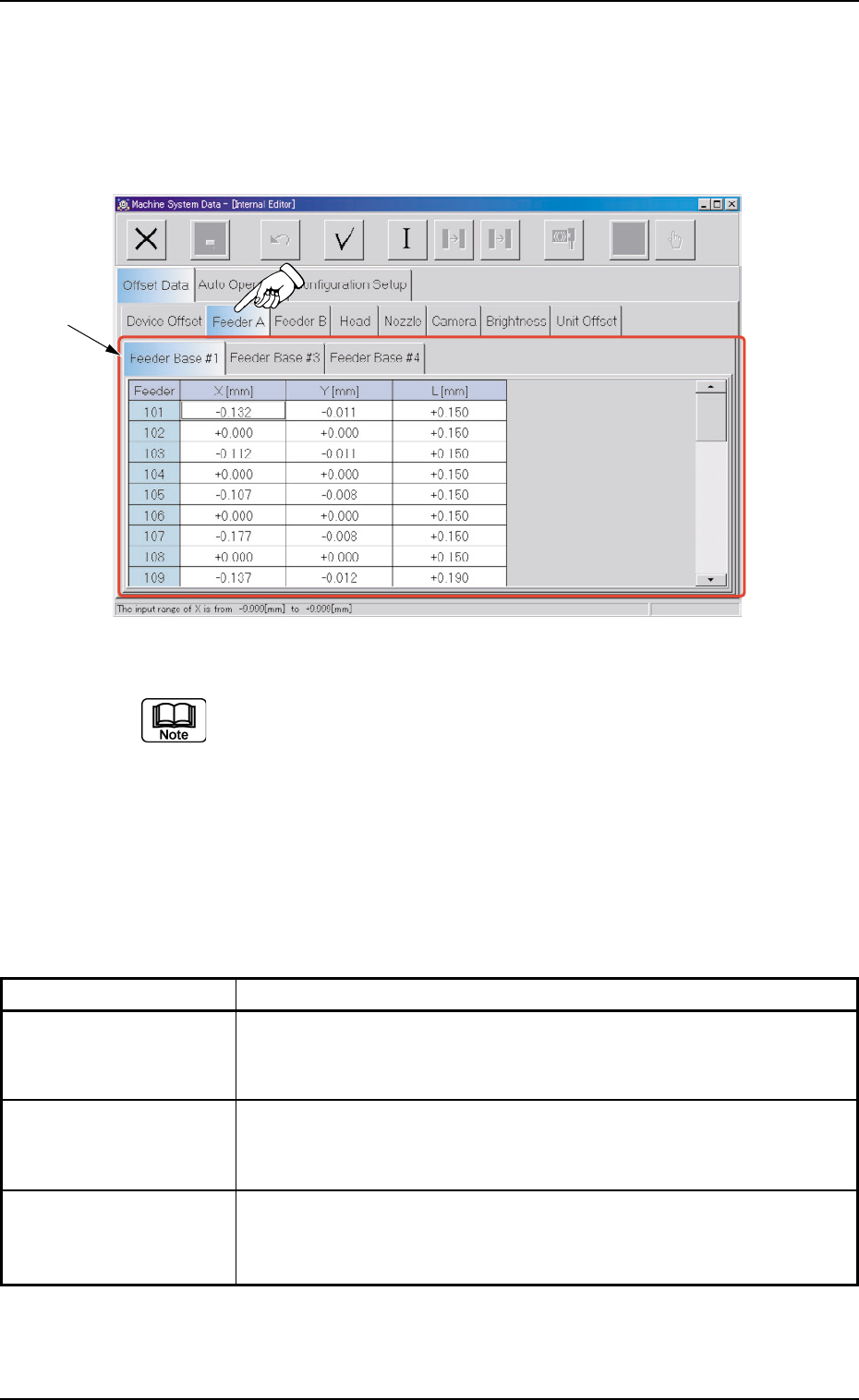

Fig. 3E24 "Feeder A" Tab Sheet (Provided with Multi-Layer Tray Feeder 2)
The tab sheet may look different, depending on which options are
selected.
• Sheet Composition
*1 Tabs and Tab Sheets
The "Feeder A" tab sheet is provided with the following 3 tab sheets.
When each tab is pressed, the corresponding tab sheet appears.
Table 3E2-2
Tabs Description
Feeder Base #1 The corresponding tab sheet enables the operator to set the offset
data of the pick-up positions at Feeder Nos. 101 through 132 on Feeder
Base #1.
Feeder Base #3 The corresponding tab sheet enables the operator to set the offset
data of the pick-up positions at Feeder Nos. 301 through 332 on Feeder
Base #1.
Feeder Base #4 The corresponding tab sheet enables the operator to set the offset
data of the pick-up positions at Feeder Nos. 401 through 432 on Feeder
Base #1.
0308-004 5-24 AHB01EDTP
*1
2.1 "Offset Data" Tab
