*2 "Placement Data" Edit Window These windows can be used to edit the placement data (P) and (O). Refer to "4.4.2 "P-data" T ab" and "4.4.3 "O-data" T ab" for the detaile…
4.4 "Placement Data" Tab
The "Placement Data" tab is provided with additional "U01" to "Un" tabs,
the "P-data" tabs, and the "O-data" tabs. When each tab is selected, the
corresponding tab sheet appears.
4.4.1 "U01" to "Un" Tabs
"U01" represents "Unit No. 01" and "n" in "Un" can be any number (01,
02, 03, ...). When the "Un" tab is pressed, the corresponding tab sheet
appears, enabling you to edit the parameters.
• Sheet Layout
When the "U01" tab is pressed after the "Placement Data" tab is
selected, the following tab sheet appears.
Fig. 3B175 "U01" Tab Sheet
• Sheet Composition
Each parameter is displayed or can be entered.
*1 "U01" to "Un" Tabs
These tabs are used to select a unit. When a tab is pressed, the
corresponding tab sheet appears and is related to the selected unit.
Refer to "• Operation Procedure" described later for the de-
tailed information on how to add or delete a unit.
0206-001 2-108
AHB01EDTP
4.4 "Placement Data" Tab
*1
*2
*2 "Placement Data" Edit Window
These windows can be used to edit the placement data (P) and (O).
Refer to "4.4.2 "P-data" Tab" and "4.4.3 "O-data" Tab" for
the detailed information on how to select each tab.
• Operation Procedure
Add New Unit
(1) When the second toolbar is not visible, press the [Second Toolbar]
icon ( ). The second toolbar opens.
(2) When the [Add New Unit] icon (
) is selected, a tab is added to
the last one, indicating that a new tab sheet is created.
Deletion of Unit
(1) When the second toolbar is not visible, press the [Second Toolbar]
icon (
). The second toolbar opens.
(2) Use the touch screen or the pointing device to select the unit to be
deleted.
(3) When the [Delete Unit] icon (
) is selected, the selected unit is
deleted.
When a tab (unit) between the adjacent ones is deleted, the
subsequent tabs (units) are shifted left.
Unit Copy and Paste Commands
(1) When the second toolbar is not visible, press the [Second Toolbar]
icon (
). The second toolbar opens.
(2) Use the touch screen or the pointing device to select the unit to be
copied.
(3) When the [Copy Unit] icon (
) is selected, the selected tab (unit)
is copied.
(4) Select the position of the unit to be pasted.
(5) When the [Paste Unit] icon (
) is selected, the selected tab (unit)
is pasted.
The toolbar is also provided with the [Cut Unit] icon (
).
The cut unit data can be pasted.
0206-001 2-109
AHB01EDTP
4.4 "Placement Data" Tab
4.4.2 "P-data" Tab
The corresponding tab sheet can be used to edit the placement data
(P).
• Sheet Layout
When the "P-data" tab is pressed in the "Placement Data" tab sheet,
the corresponding tab sheet appears.

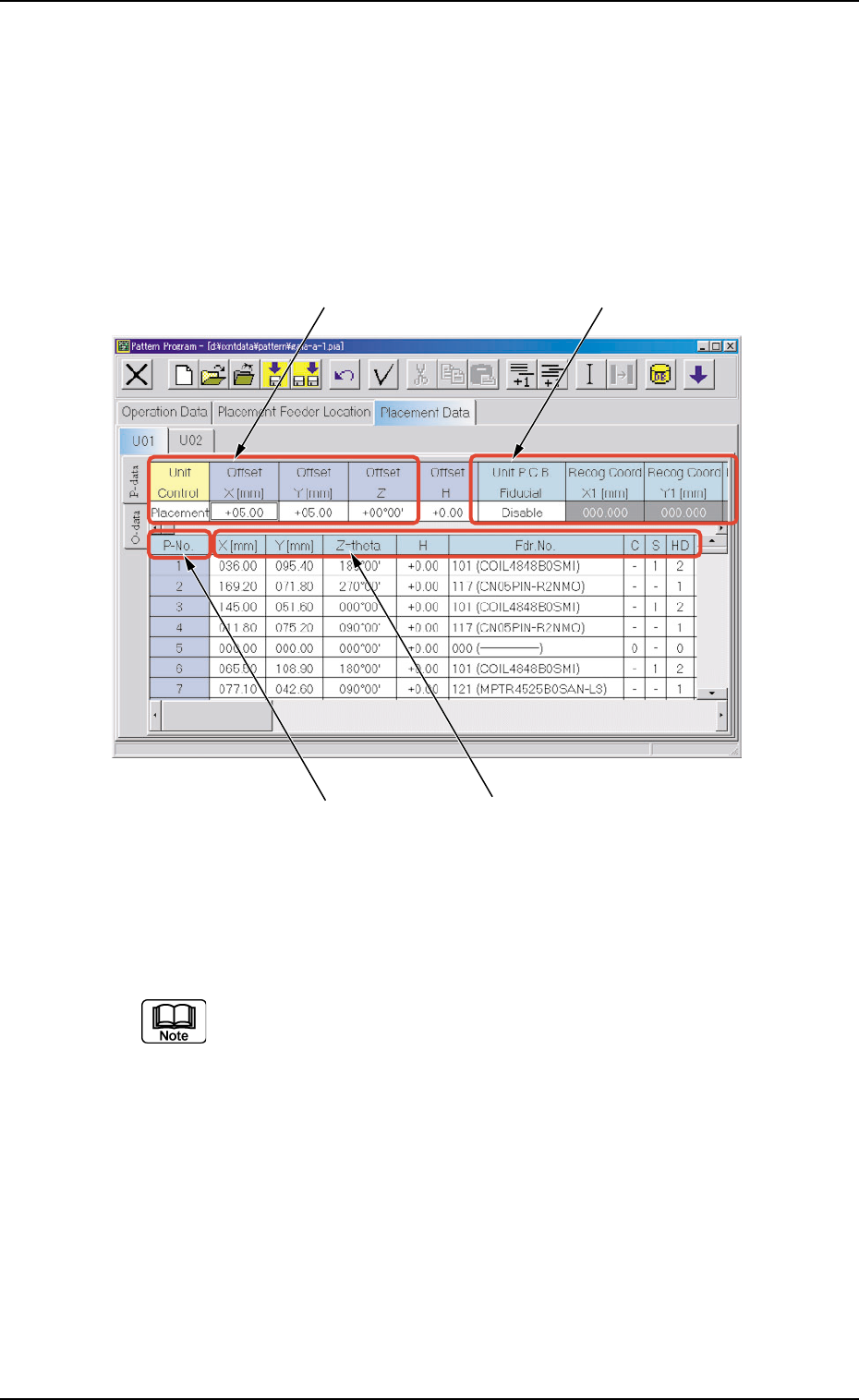

Fig. 3B176 "P-data" Tab Sheet
• Sheet Composition
Each parameter is displayed or can be entered.
Refer to "4.1.3 Basic Usage of Text Boxes" for the detailed in-
formation on how to enter each parameter.
*1 Unit Control, Offset X [mm], Offset Y [mm], Offset Z
*2 Unit P.C.B. Fiducial
Recog Coord X1 [mm], Recog Coord Y1 [mm], Recog Coord
X2 [mm], Recog Coord Y2 [mm], Fiducial Mark FM1, Fiducial
Mark FM2
When "Enable" is selected for "Unit P.C.B. Fiducial", it is required
to enter parameters in these text boxes.
*1
*2
*3
*4
0206-001 2-110 AHB01EDTP
