2.3 "Configuration Setup" T ab 2.3.3 "Feeder LED Lighting Pattern" T ab The corresponding tab sheet enables the operator to specify a lighting pattern of the status indicator (green LED) for the tape …
2.3.2 "Alarm Setup" Tab
When "Optl Snd" is selected in a "Buzzer" text box of the "Light Tower
Setup" tab sheet, a pattern of the buzzer sounds must be specified.
••
••
• Sheet Layout
When the "Alarm Setup" tab sheet is pressed in the "Configuration Setup"
tab sheet, the following tab sheet appears.

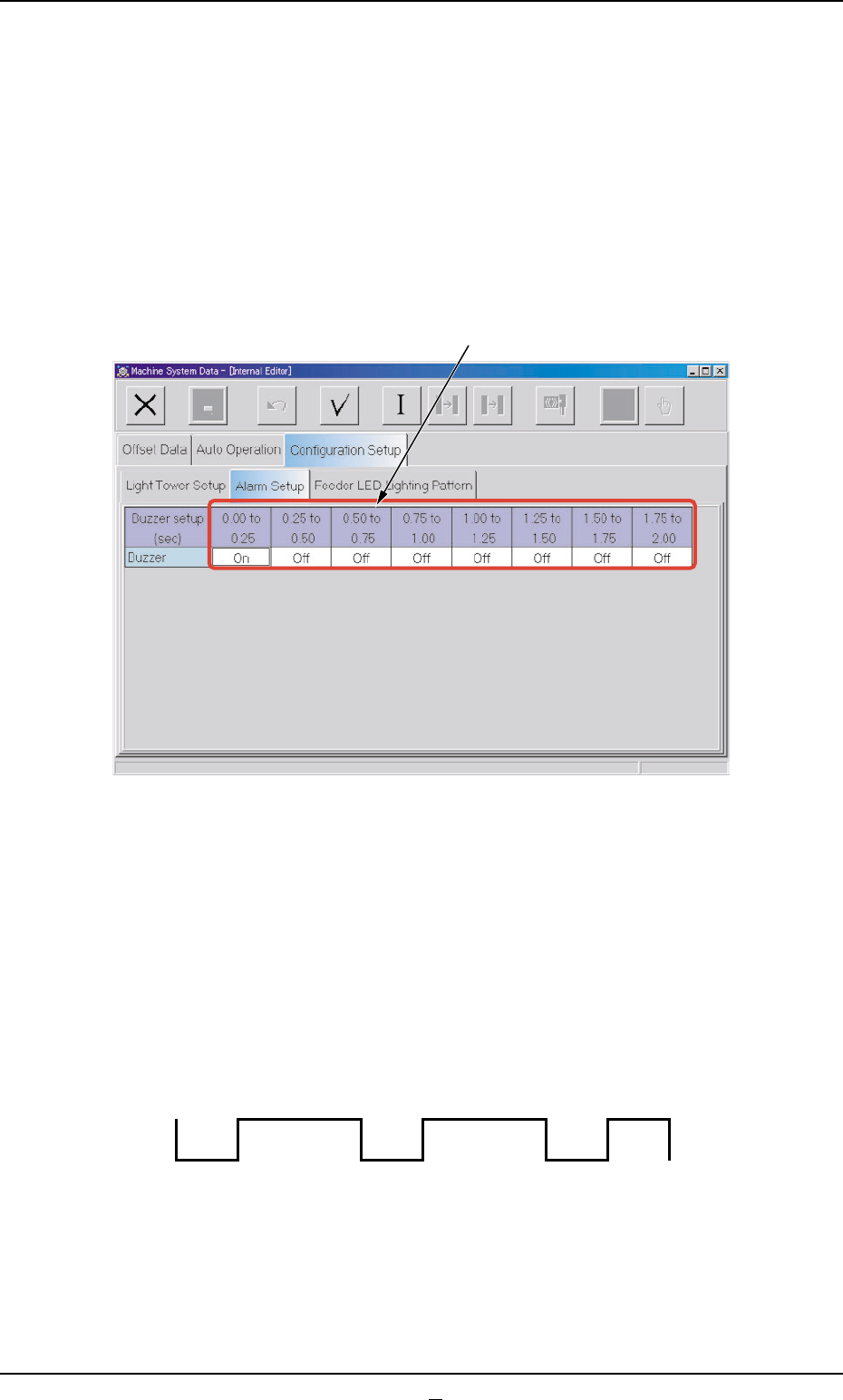

Fig. 3E77 "Alarm Setup" Tab Sheet
••
••
• Sheet Composition
*1 Time Items
An optional alarm sounds in a cycle of 2 seconds. The 2 sec-
onds is divided into 8 intervals and each interval is assigned as
"ON" or "OFF" to make a sound of your own.
Fig. 3E77-1 Example of Buzzer Sound Setting
0308-003 5-87 AHB01EDTP
2.3 "Configuration Setup" Tab
*1
OFF OFF
ON ON ON ON ON
OFF
2.3 "Configuration Setup" Tab
2.3.3 "Feeder LED Lighting Pattern" Tab
The corresponding tab sheet enables the operator to specify a lighting
pattern of the status indicator (green LED) for the tape feeders.
••
••
• Sheet Layout
When the "Feeder LED Lighting Pattern" tab is pressed in the "Configu-
ration Setup" tab sheet, the following tab sheet appears.

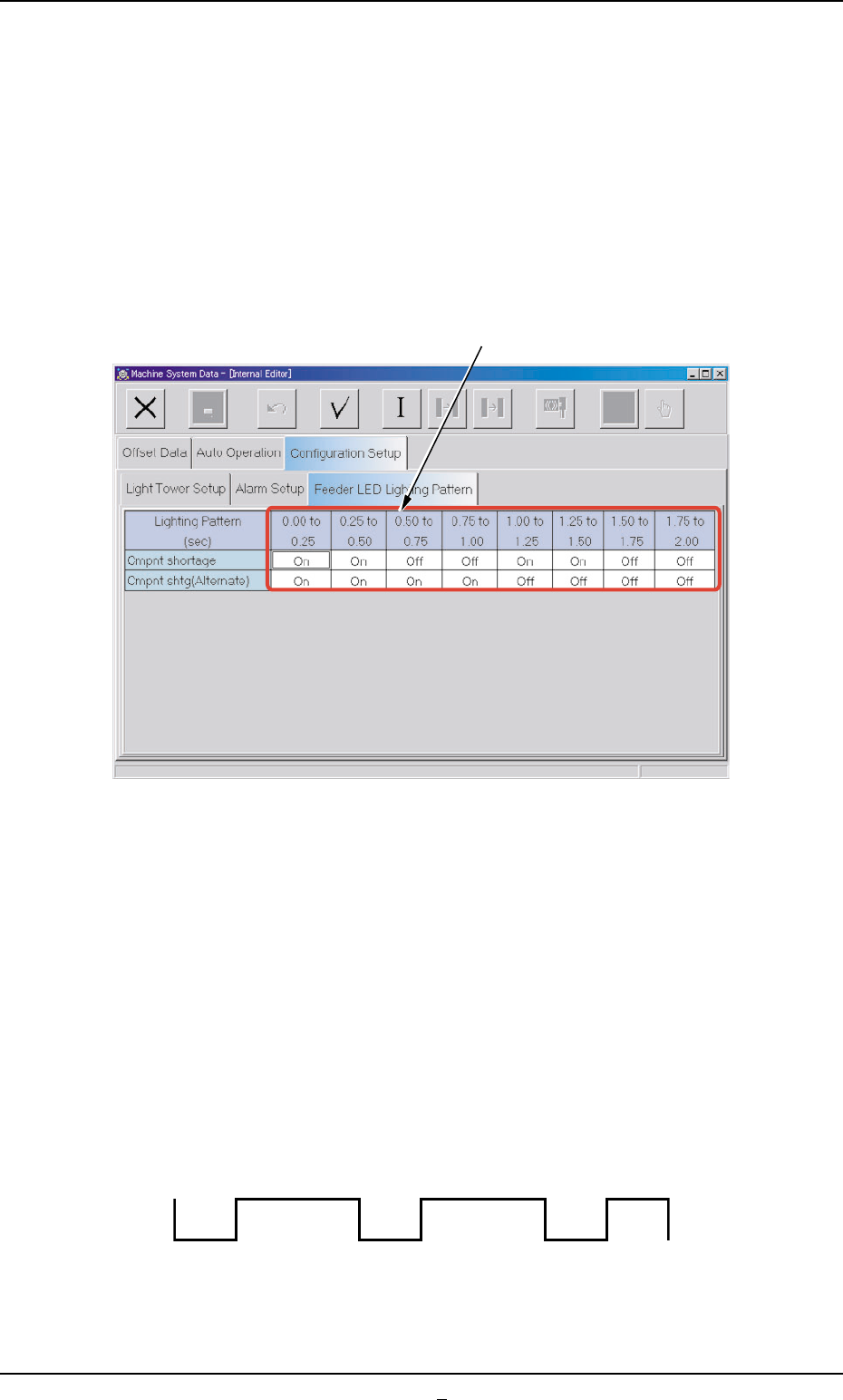

Fig. 3E77-2 "Feeder LED Lighting Pattern" Tab Sheet
••
••
• Sheet Composition
*1 Time Items
The synchronizing two seconds are divided into eight segments and
"ON" or "OFF" can be allocated to each segment to create an op-
tional lighting pattern.
Optional lighting patterns can be specified for both cases - the pat-
tern at a normal shortage of components and the pattern at a short-
age of components in the alternate feeder mode.
Fig. 3E77-3 Example of Lighting Pattern Setting
*1
0308-001 5-87-1 AHB01EDTP
OFF OFF
ON ON ON ON ON
OFF
3. "Nozzle Data" Window
It can be specified which nozzle types are allocated for each address (1
through 10) of each nozzle stocker.
The nozzle data can also be set.
••
••
• Window Layout
Press the [SYSTEM] button on the main menu bar. The "SYSTEM SEL."
menu opens. When the [NOZZLE DT] button is pressed, the following
window opens.

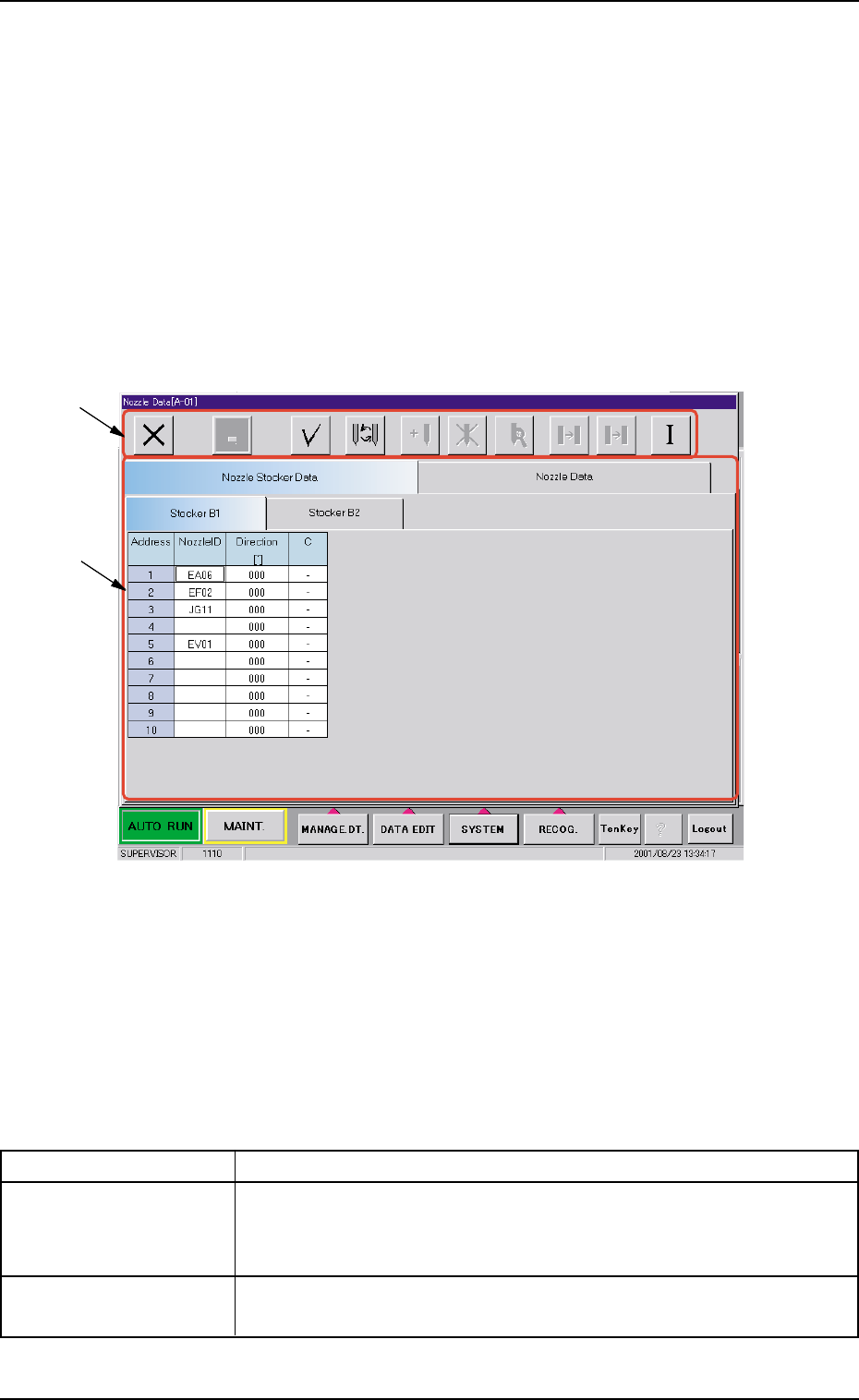

Fig. 3E78 "Nozzle Data" Window
••
••
• Window Composition
*1 Tabs and Tab Sheets
The "Nozzle Data" window is provided with the following 2 tab
sheets. When a tab is pressed, the corresponding tab sheet ap-
pears.
Table 3E13
Tabs Description
Nozzle Stocker Data The corresponding tab sheet enables the operator to register the
nozzle types (Nozzle IDs to be allocated) for the addresses
(1 through 10) for each nozzle stocker.
Nozzle Data The corresponding tab sheet enables the operator to edit the nozzle
type data.
0206-002 5-88
AHB01EDTP
3. "Nozzle Data" Window
*1
*2
