When offset parameters are entered with "+" (plus) signs for "X [mm]" and "Y [mm]", the head moves in the (+) direction in the PL-XY coordinate system. Unit 1 to 6 L [mm] (Height) The set of…
2.1.8.2 "Vibratory Stick Feeder" Tab
• Sheet Layout
When the "Vibratory Stick Feeder" tab is pressed in the "Device Off-
set" tab sheet, the following tab sheet appears.
Fig. 3E61 "Vibratory Stick Feeder" Tab Sheet
The tab sheet may look different, depending on which options
are selected.
• Sheet Composition
*1 Offset Items
Set the following offset values.
Unit 1 to 6 X [mm] (Horizontal), Y [mm] (Vertical)
This offset data is used to adjust the positional deviations compared
with the design dimensions of Vibratory Stick Units #1 through #6.
The values based on the PL-XY coordinate system must be en-
tered in each text box.
Fig. 3E62
2.1 "Offset Data" Tab
0308-003 5-63 AHB01EDTP
*1
When offset parameters are entered with "+" (plus) signs for "X
[mm]" and "Y [mm]", the head moves in the (+) direction in the
PL-XY coordinate system.
Unit 1 to 6 L [mm] (Height)
The set offset parameters are used to adjust the vertical (height
direction) deviations compared with the design dimensions of Vi-
bratory Stick Units #1 through #6.
When a vibratory stick unit is installed lower than the design value,
plus values must be entered.
2.1 "Offset Data" Tab
01 12-001 5-64 AHB01EDTP
2.2 "Auto Operation" Tab
••
••
• Sheet Layout
When the "Auto Operation" tab is pressed in the "Machine System Data"
window, the following tab sheet appears.

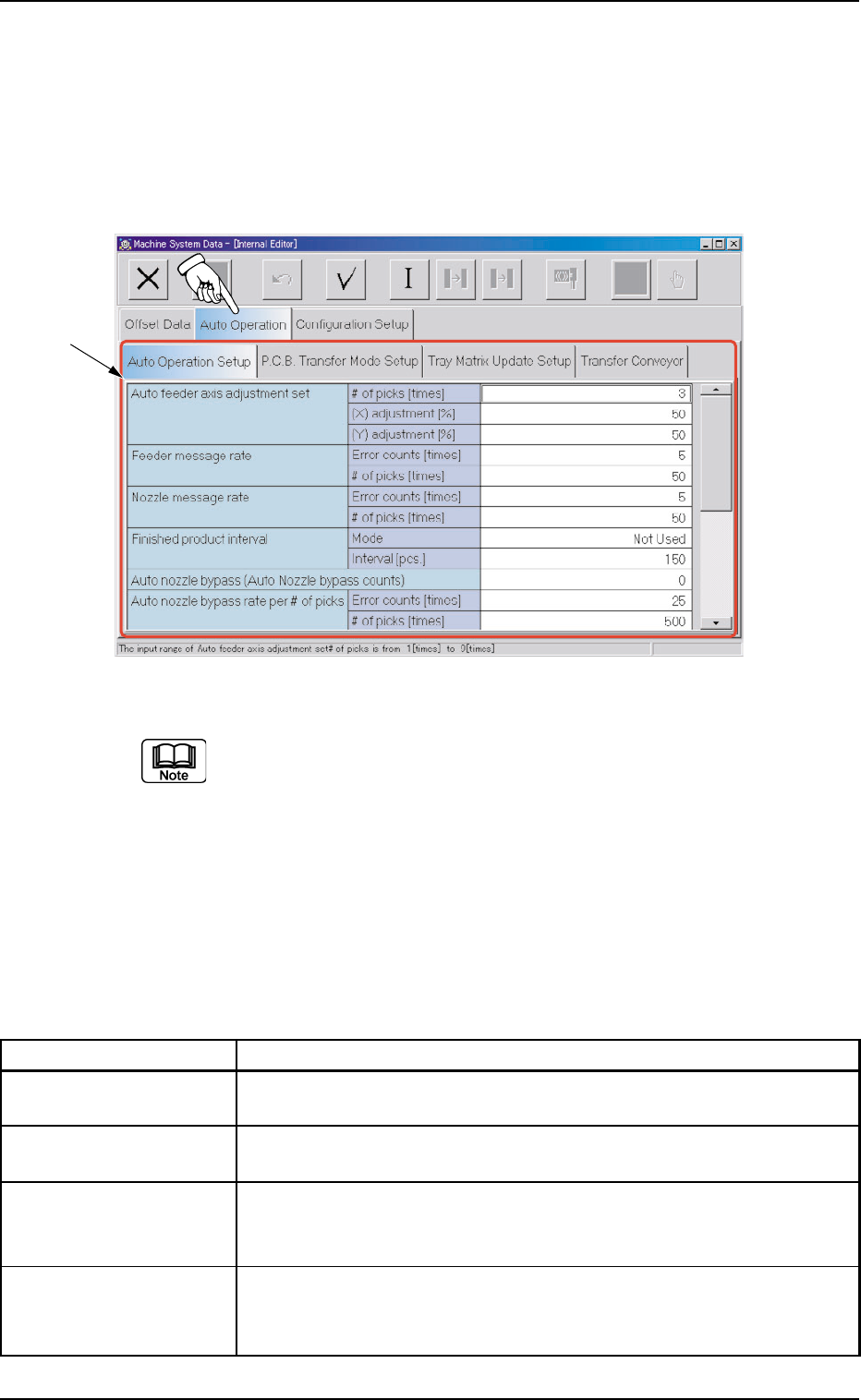

Fig. 3E63 "Auto Operation" Tab Sheet (Provided with Multi-Layer Tray Feeder 2)
The tab sheet may look different, depending on which options are
selected.
••
••
• Sheet Composition
*1 Tabs and Tab Sheets
The "Auto Operation" tab sheet is provided with the following 4
tab sheets. When a tab is pressed, the corresponding tab sheet
appears.
Table 3E11
Tabs Description
Auto Operation Setup Set various types of parameters related to the automatic operation of
the machine.
P.C.B. Transfer Mode Set the operation mode of the input and output machines and the
Setup requirements for P.C.B. transfer and positioning operations.
Tray Matrix Update This is an optional function.
Setup Refer to the instruction manual of the multi-layer tray feeder for
details.
Transfer Conveyor The corresponding tab sheet enables the operator to set the input/
output conveyor speeds, the speed change timing, the stop timing,
and the positioning conveyor speed.
0308-003 5-65
AHB01EDTP
2.2 "Auto Operation" Tab
*1
