3.2 Single Pattern (P.E.C. Recognition Function Enabled)
0206-002 2-66 AHB01EDTP
3.3 Repetitive Patterns
(1) Information on Pattern Program Creation
••
••
• P.C.B. Size and Packaged Posture & IDs of Components
Follow the same procedure as described in "3.1 Single Pattern".
••
••
• Placement Coordinates and Angles (Z=Theta)

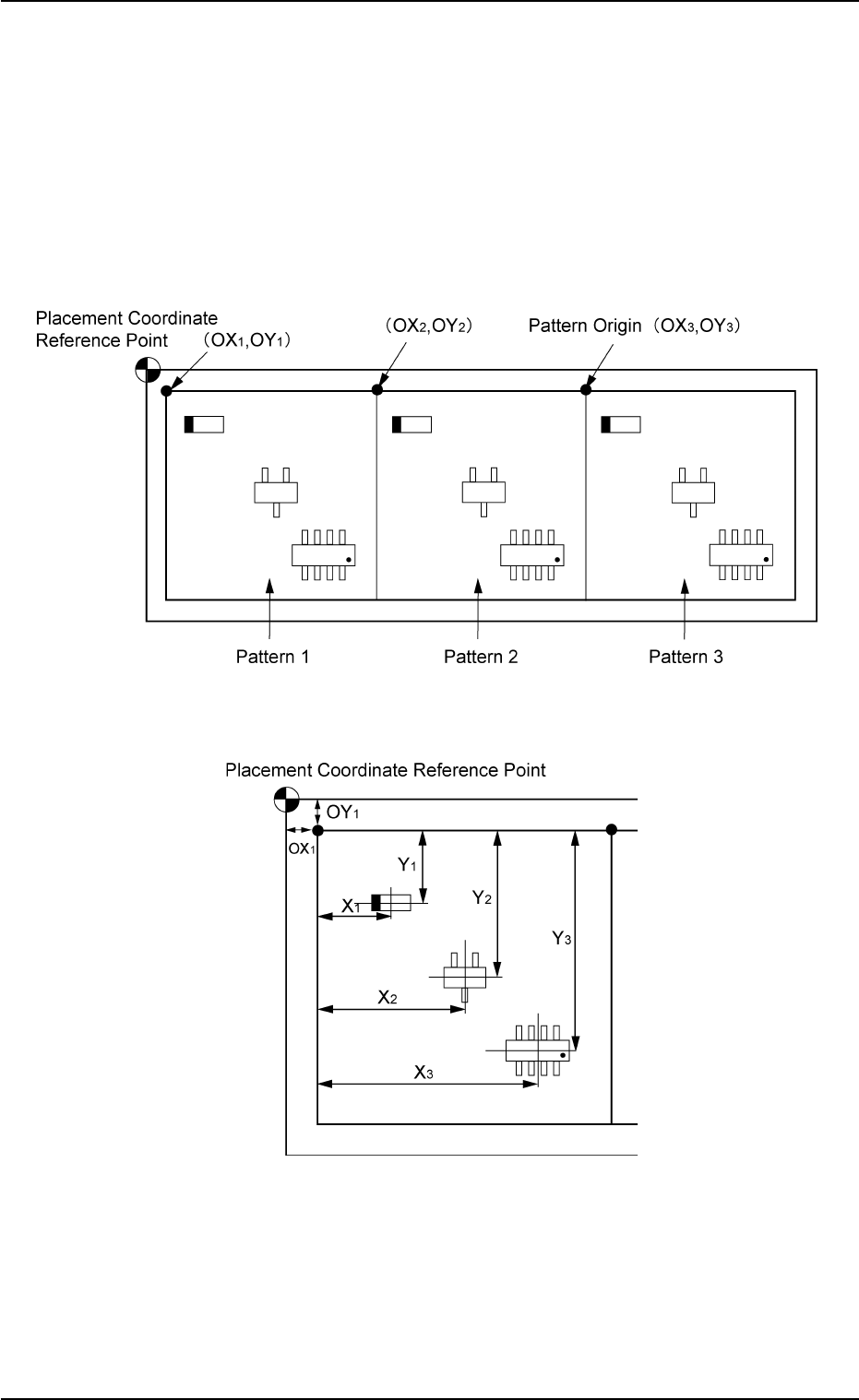

Fig. 3B131 General View
Fig. 3B132 Pattern 1 (Magnified View)
3.3 Repetitive Patterns
0206-003 2-67 AHB01EDTP
(2) Creation of Operation Data
••
••
• P.C.B. Data
Follow the same procedure as described in "3.1 Single Pattern".
••
••
• P.E.C. Recognition Data
Set "Disable" in the "P.E.C. recognition function" text box.
Do not set any other parameters.
••
••
• P.E.C. Recognition Mark Data
Do not create this data.
••
••
• Setup Data
Create this data when the automatic setup function is used.
(3) Creation of Placement Feeder Location Data
Follow the same procedure as described in "3.1 Single Pattern".
(4) Creation of Placement Data (P-data) U01
••
••
• Unit Control
Follow the same procedure as described in "3.1 Single Pattern".
••
••
• Unit P.C.B. Fiducial
Set "Disable" in this text box.
Do not set any other parameters.
••
••
• Placement Data (P-data)
Tabl 3B24
P-No. X [mm] Y [mm] Z H [mm] Fdr. No. C S HD PU
Comment V
1X
1
Y
1
000°00’ +0.00 101 - - 2 0 00
2X
2
Y
2
090°00’ +0.00 115 - - 1 0 00
3X
3
Y
3
180°00’ +0.00 105 - - 2 0 00
4 000.00 000.00 000°00’ +0.00 000 P - 0 0 00
Set "P" or "Q" as a control command in the last line (last step
No.).
(5) Creation of Placement Data (O-data) U01
Tabl 3B25
O-No. X [mm] Y [mm] Z H C Comment B-X [mm] B-Y [mm]
10X
1
0Y
1
000°00’ +0.00 - 000.00 000.00
20X
2
0Y
2
000°00’ +0.00 - 000.00 000.00
30X
3
0Y
3
000°00’ +0.00 - 000.00 000.00
4 000.00 000.00 000°00’ +0.00 E 000.00 000.00
3.3 Repetitive Patterns
