(A01_03) P .C.B. origin offset X [mm] , Y [mm] Set the offset values to correct the difference between the placement coordinate reference point (N 0 ) and the P .C.B. origin (P 0 ). Unit: mm "Plus" or "Min…
(A01_02) P.C.B. size
X [mm] , Y [mm], T [mm]
Set the dimensions of the P.C.B. to be produced.
Unit: mm
Fig. 3B10
When the P.C.B. has a cutout, the following dimensions must
be entered.
Fig. 3B11
Data Input Range
X: 50 to 330 Y: 50 to 250 T: 0.3 to 2.5
(a) Be sure to set a correct parameter in the "X [mm]" text box
because the set parameter is used to automatically cor-
rect the placement position when a parameter is selected
in the "P.C.B. locate method" text box in the "P.C.B. Trans-
fer Mode Setup" tab sheet.
(b) The set parameter in the "Y [mm]" text box must be used
as a target width for the conveyor width automatic adjust-
ment operation.
(c) The parameter in the "T [mm] (Thickness)" text box must
be used as a target value for the backup table ascending
position when a P.C.B. is clamped by the clamp plates and
positioned.
0206-002 2-12
AHB01EDTP
2.3 Operation Data
130.00
100.00
250.80
X
[mm]
Y [mm]
T
[mm]
Fig. 3B9

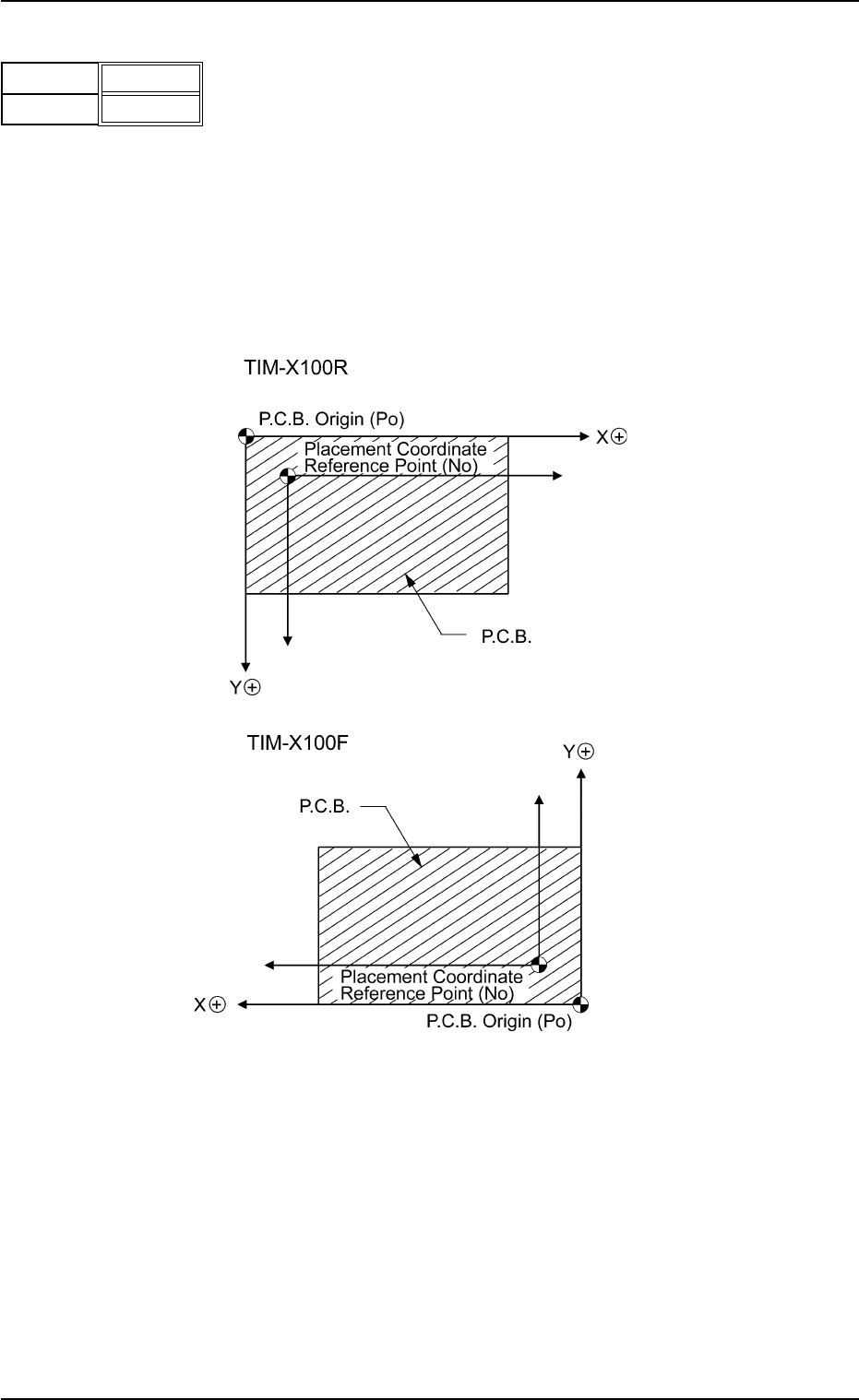

(A01_03) P.C.B. origin offset
X [mm] , Y [mm]
Set the offset values to correct the difference between the
placement coordinate reference point (N
0
) and the P.C.B.
origin (P
0
).
Unit: mm
"Plus" or "Minus" can be set in both X and Y coordinates in
the direction of the correction.
Fig. 3B13 Example "+" (Plus) Direction for Correction
Data Input Range
X: -99.999 to +99.999 Y: -99.999 to +99.999
0206-002 2-13
AHB01EDTP
2.3 Operation Data
X
[mm]
Y [mm]
+00.000
+00.000
Fig. 3B12
Z=theta
Set the offset value for component placement angle.
The set value is added to the "Z=theta" of all components in
the placement data (P data).
To correct the angle of component placement counterclock-
wise, a parameter must be entered with a "+" (plus) sign.
Put a "-" (minus) sign to correct it clockwise.
Unit: ° (degrees)
Fig. 3B15
Data Input Range
-359.99 to +359.99
0308-003 2-14
AHB01EDTP
2.3 Operation Data
Z=theta
Fig. 3B14
+0.00
0°
+.°
-.°
