(C03) Placement Data (O)
The set parameters can be used to create a repetitive pat-
tern program.
Fig. 3B116 Edit Window (Example)
(C03_01) O-No.
Shown are the step Nos. of the placement data (O).
These step Nos. are regarded as repetitive pattern Nos.
Parameters must be entered in each line (pattern).
Fig. 3B118 Example of Repetitive Pattern Program
0206-003 2-57
AHB01EDTP
2.5 Placement Data
0-No.
Fig. 3B117
1
(C03_02) X [mm], Y [mm]
Set the coordinates of each pattern origin (O
01
through O
n
)
based on the placement coordinate reference point (N
0
).
Unit: mm
A pattern origin refers to the reference coordinates of a re-
petitive pattern.
The pattern origins (reference coordinates) must be deter-
mined, regarding the "Z-theta" data as "0°" (described in
"(C03_03)" and located at corners on the same side as the
placement coordinate reference point (N
0
).
N
0
: The center of is the placement coordinate refer-
ence.
O
01
: Pattern Origin of Pattern 1
O
02
: Pattern Origin of Pattern 2
O
03
: Pattern Origin of Pattern 3
O
04
: Pattern Origin of Pattern 4

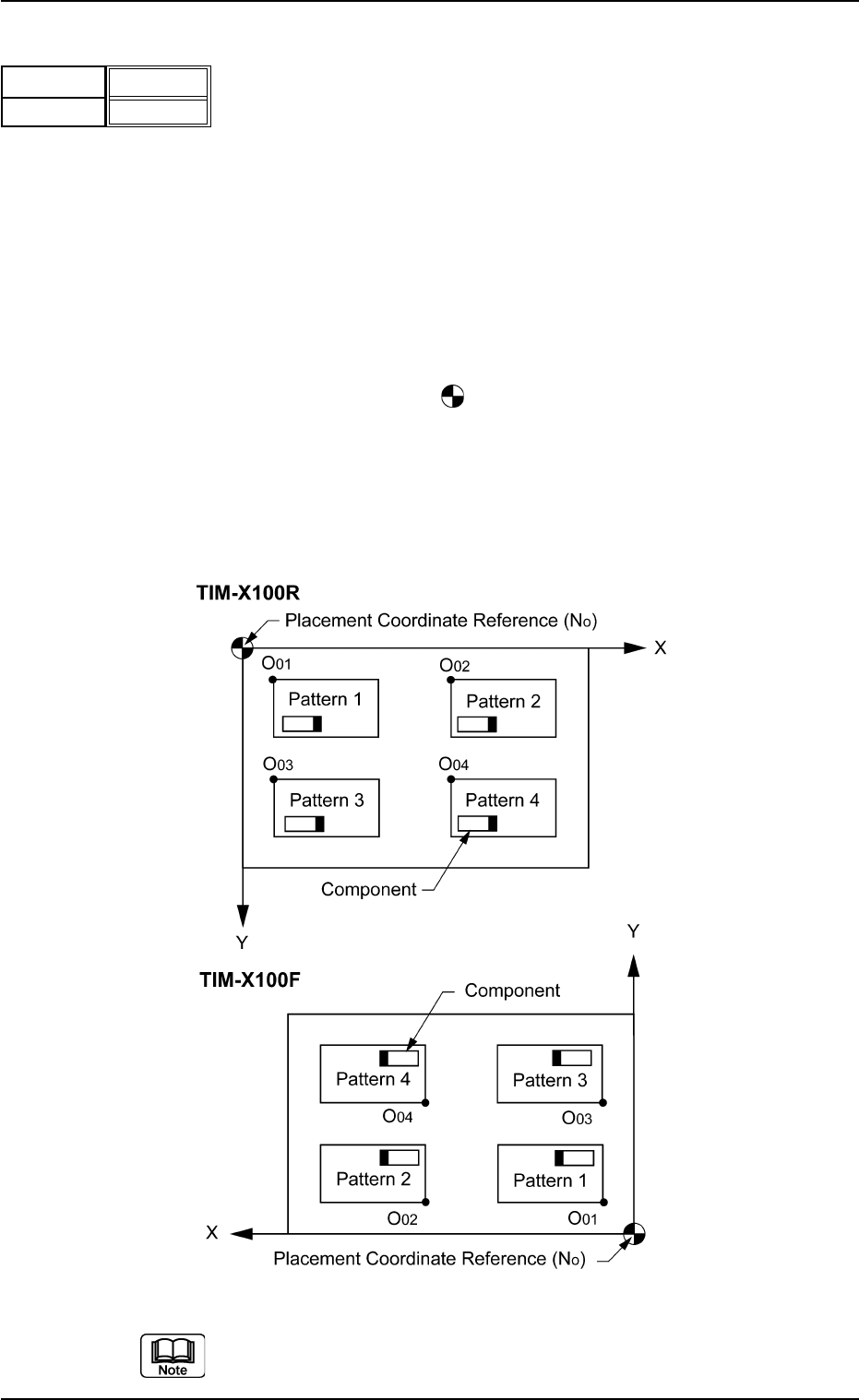

Fig. 3B120 Example of Repetitive Patterns
Do not set any coordinates in the last line (last step No.).
Keep them as "000.00".
0206-003 2-58
AHB01EDTP
2.5 Placement Data
Fig. 3B119
X [mm]
010.000
Y [mm]
010.000
(C03_03) Z=theta
Set an angle of each pattern.
Keep the angle of the reference pattern as "000°00'".
In the figure below, "Pattern 1" is regarded as a reference
one.
Data Input Range: 0°, 90°, 180°, 270°
N
0
: The center of is the placement coordinate refer-
ence.
O
01
: Pattern Origin of Pattern 1
O
02
: Pattern Origin of Pattern 2
O
03
: Pattern Origin of Pattern 3
O
04
: Pattern Origin of Pattern 4
Pattern 1 : 0°
Pattern 2 : 90°
Pattern 3 : 180°
Pattern 4 : 270°

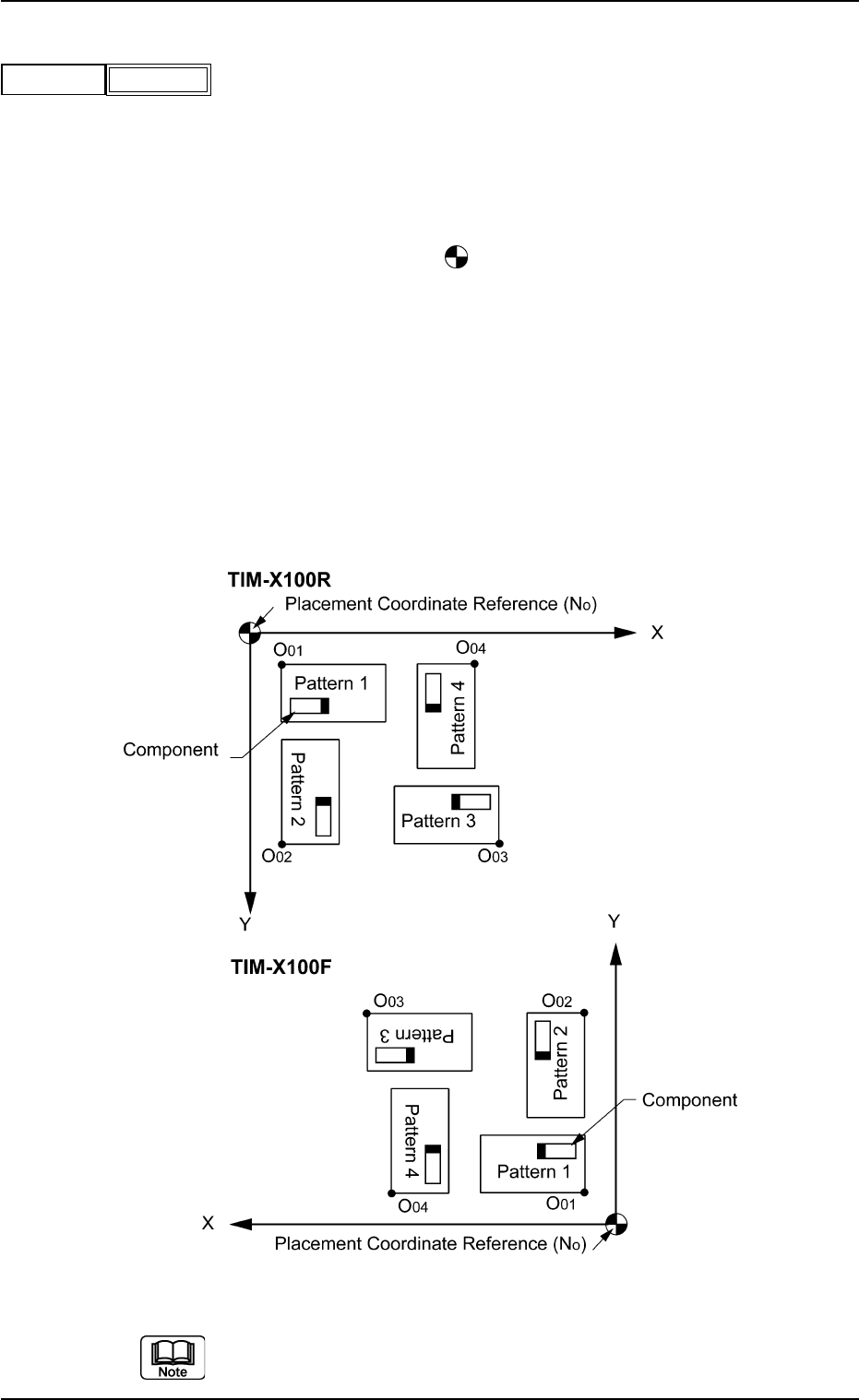

Fig. 3B122 Example of Repetitive Patterns
Do not set any angle in the last line (last step No.).
Keep it as "000°00'".
0206-003 2-59
AHB01EDTP
2.5 Placement Data
Z
Fig. 3B121
000°00'
