(C02_10) HD
Specify the head to be used for the component in the perti-
nent step.
Select one of the following options.
0: Automatic (Not Available)
1: Head #1
2: Head #2
(C02_11) PU (Not Available)
Determine whether the "Pick-Up Priority" function should be
used or not.
Select one of the following options.
0: Automatic Operation
1: To pick up the component prior to the others
Set this to intentionally change the pick-up order.
(C02_12) Comment
Set a comment for each step No.
Up to 32 characters (alphanumerics and marks) can be
used.
(a) The automatic operation is not affected by these comments.
(b) The comments can be used to check "Ref. No." printed on
the upper surfaces of P.C.B.’s.
0206-002 2-55
AHB01EDTP
2.5 Placement Data
Comment
Fig. 3B111
PU
Fig. 3B110
0
HD
Fig. 3B109
0
(C02_13) V
Select one of the following options as the data for the local
recognition mode.
00 : The P.E.C. recognition is not performed.
01 : The P.E.C. recognition is performed. (1-Point Rec-
ognition)
02 : The P.E.C. recognition is performed. (2-Point Rec-
ognition)
Set a parameter in this text box after specifying "Enable" in
the "P.E.C. recognition function" and "P.E.C. recognition
mode Local" text boxes in the "P.E.C. Recognition Data" tab
sheet (Operation Data).
(C02_14) X1 [mm], Y1 [mm]
Set the coordinates of the first fiducial mark for the local
P.E.C. recognition.
The coordinates must be based on the pattern origin
when a P.C.B. has repetitive patterns.
(C02_15) X2 [mm], Y2 [mm]
Set the coordinates of the second fiducial mark for the
local P.E.C. recognition.
The coordinates must be based on the pattern origin
when a P.C.B. has repetitive patterns.
(C02_16) FM1, FM2
Set the mark Nos. of the first and second fiducial marks
FM1 and FM2 for local P.E.C. recognition.
Select the mark Nos. (Mark #) specified in the P.C.B. recog-
nition mark data of the operation data.
0206-002 2-56
AHB01EDTP
2.5 Placement Data
Fig. 3B115
FM1 [mm]
00
FM2 [mm]
00
Fig. 3B114
X2 [mm]
000.000
Y2 [mm]
000.000
Fig. 3B113
X1 [mm]
000.000
Y1 [mm]
000.000
V
Fig. 3B112
00
(C03) Placement Data (O)
The set parameters can be used to create a repetitive pat-
tern program.

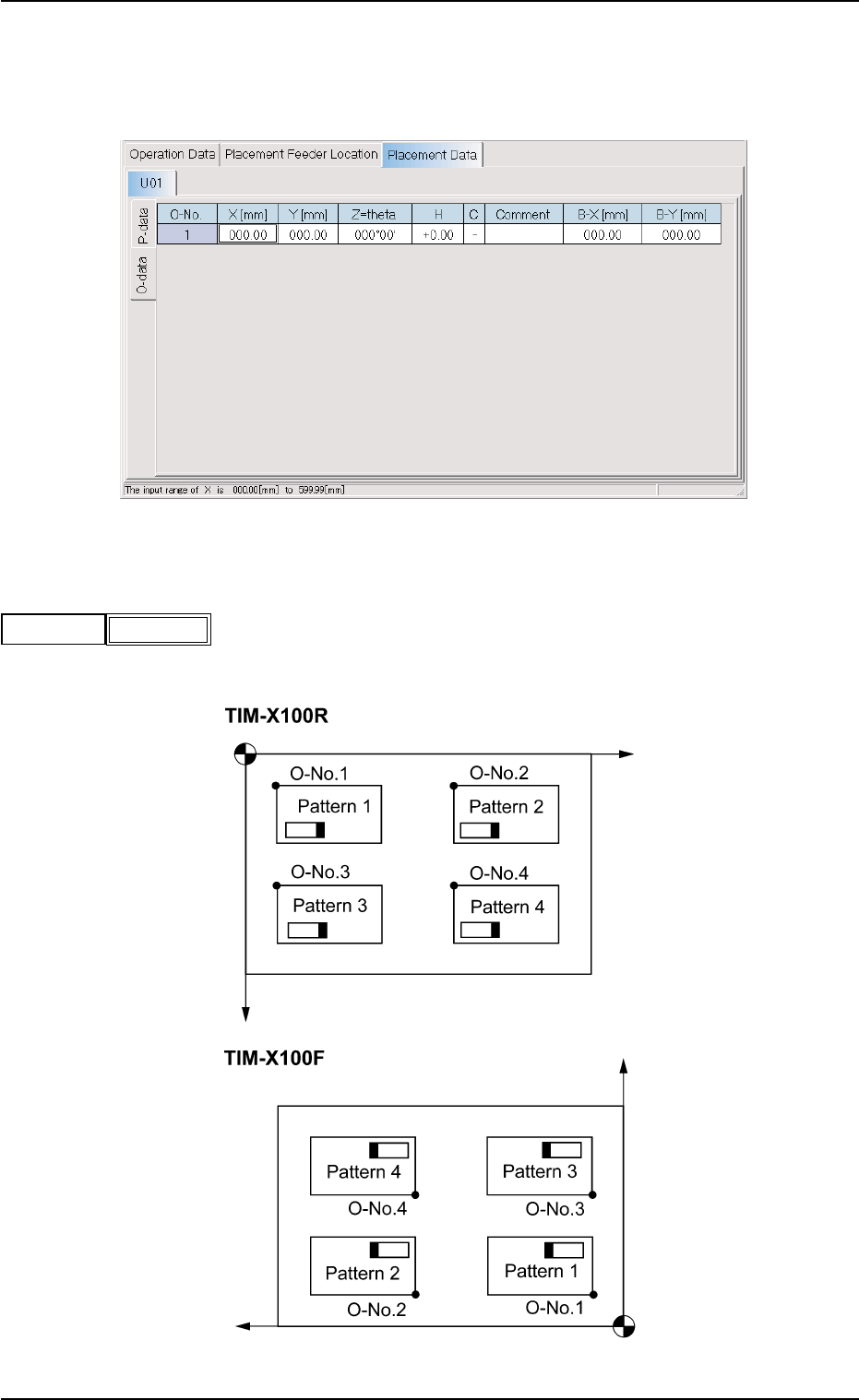

Fig. 3B116 Edit Window (Example)
(C03_01) O-No.
Shown are the step Nos. of the placement data (O).
These step Nos. are regarded as repetitive pattern Nos.
Parameters must be entered in each line (pattern).
Fig. 3B118 Example of Repetitive Pattern Program
0206-003 2-57
AHB01EDTP
2.5 Placement Data
0-No.
Fig. 3B117
1
