(C03_04) H The component height can be corrected. When a parameter is set as "H" data in the last line (last step No.), it becomes invalid because "E" is set in the "C (Control Command)" tex…
(C03_03) Z=theta
Set an angle of each pattern.
Keep the angle of the reference pattern as "000°00'".
In the figure below, "Pattern 1" is regarded as a reference
one.
Data Input Range: 0°, 90°, 180°, 270°
N
0
: The center of is the placement coordinate refer-
ence.
O
01
: Pattern Origin of Pattern 1
O
02
: Pattern Origin of Pattern 2
O
03
: Pattern Origin of Pattern 3
O
04
: Pattern Origin of Pattern 4
Pattern 1 : 0°
Pattern 2 : 90°
Pattern 3 : 180°
Pattern 4 : 270°
Fig. 3B122 Example of Repetitive Patterns
Do not set any angle in the last line (last step No.).
Keep it as "000°00'".
0206-003 2-59
AHB01EDTP
2.5 Placement Data
Z
Fig. 3B121
000°00'
(C03_04) H
The component height can be corrected.
When a parameter is set as "H" data in the last line (last step
No.), it becomes invalid because "E" is set in the "C (Control
Command)" text box.
(C03_05) C
Enter some of the following control commands.
- (hyphen): This command handles the steps as those
for component placement.
S: This command invalidates the steps specified
as those for component placement.
C: This command invalidates the steps specified
as those for component placement.
Note: As for dispensers, these steps become
valid.
D: This command handles the steps as those for
component placement.
Note: As for dispensers, these steps become
invalid.
E: When placement data (O) is not created, this
shows the end of the steps in the placement data
(P).
Confirm that "0" (zero) is set in the "X [mm]", "Y [mm]",
"Z=theta", "B-X [mm]", and "B-Y [mm]" for the last step
and set "E" in the "C".
(C03_06) Comment
Set a comment for each step No.
Up to 32 characters (alphanumerics and marks) can be
used.
The automatic operation is not affected by these comments.
2.5 Placement Data
H
Fig. 3B123
+0.00
Comment
Fig. 3B125
0308-004 2-60 AHB01EDTP
C
Fig. 3B124
-
If a control command other than the following ones is
used, the step becomes invalid.
CAUTION
3. Example of Pattern Program Creation
Described on the following pages are the examples of pattern programs
to be created.
The examples are based on "TIM-X100R".
The placement coordinate reference for "TIM-X100F" is "Front
Right".
• Single Pattern
• Single Pattern (P.E.C. Recognition Function Enabled)
• Repetitive Pattern
• Repetitive Pattern (Unit P.C.B. B.B.R. Enabled)
• Repetitive Pattern (Block Sorting Enabled)
• Repetitive Pattern (Polar Coordinate Conversion Function)
• Multi-Model Repetitive Pattern
3.1 Single Pattern
(1) Information on Pattern Program Creation
••
••

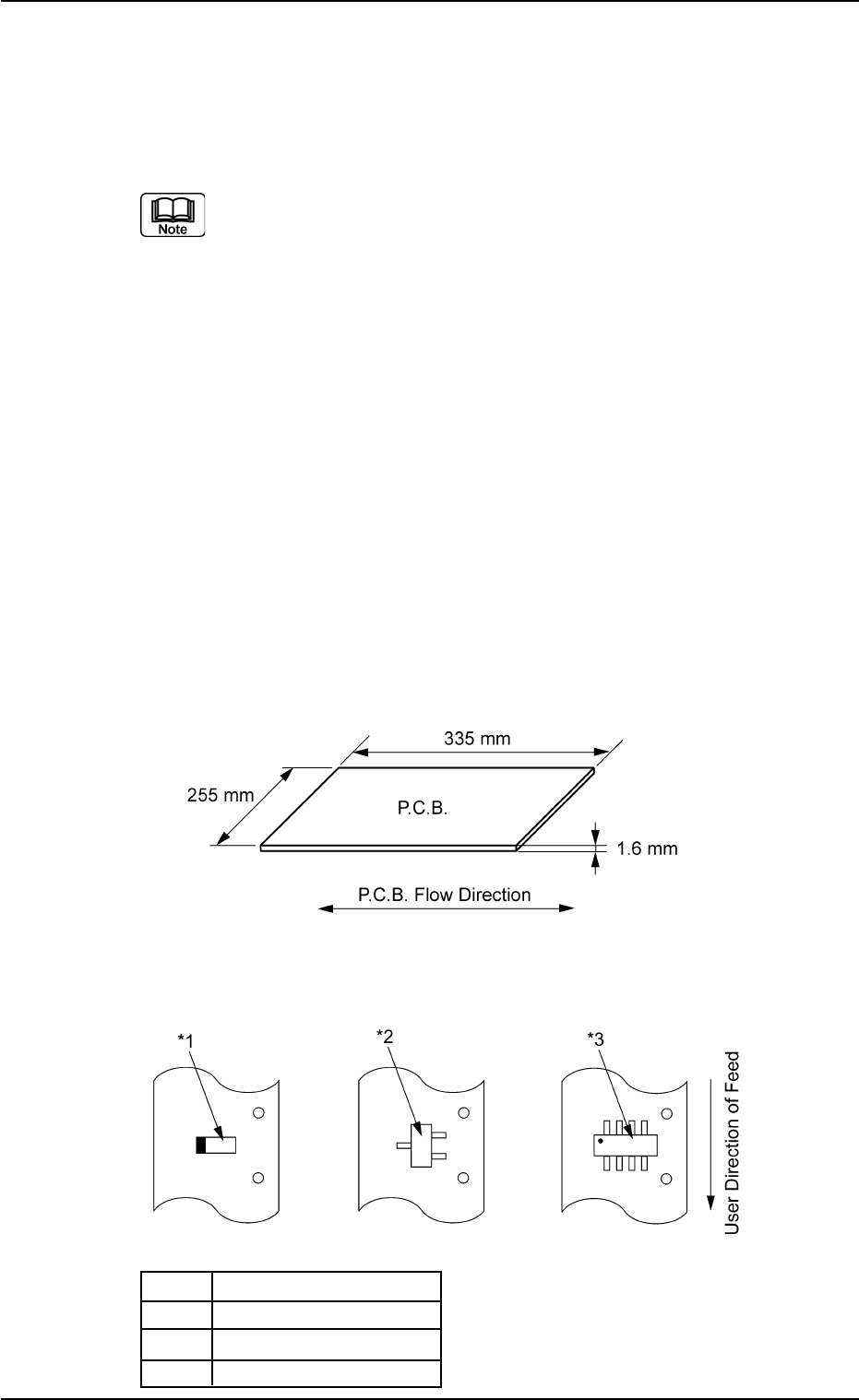

• P.C.B. Size
Fig. 3B126
••
••
• Packaged Posture and IDs of Components
Fig. 3B127
No. Component ID
*1 TANA3216B0---
*2 TR2012-3B0SANL2
*3 S0P008-B02SAN
0206-003 2-61
AHB01EDTP
3. Example of Pattern Program Creation
