4. "Pattern Program" Edit Window
4.1 Basic Operations
4.1.1 Window Layout
Described blow is how to open the "Pattern Program" edit window.
• Operation Procedure
(1) When the [DATA EDIT] button on the main menu bar is pressed, the
"EDIT SEL." menu opens.
(2) Press the [PATT. PRGM.] button. The "Pattern Program Edit" win-
dow opens.
Fig. 3B139 "Pattern Program Edit" Window
(3) Press the [Create New] button. The "Pattern Program" edit window
opens.
0308-004 2-78 AHB01EDTP
4. "Pattern Program" Edit Window

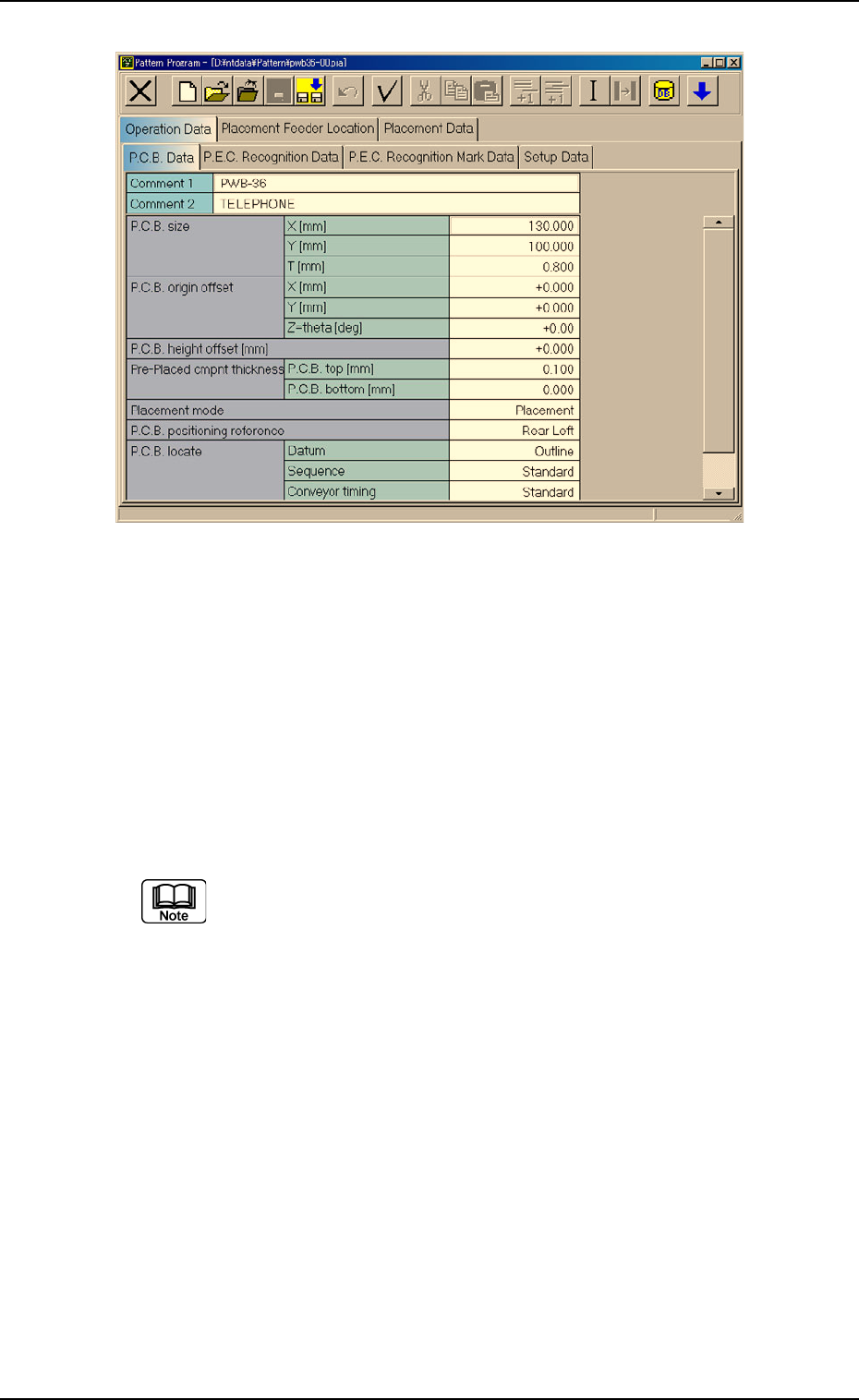

Fig. 3B140 "Pattern Program" Edit Window
••
••
• Use of Existing Pattern Program
(1) Press the [DATA EDIT] button on the main menu bar. An "EDIT SEL."
menu opens.
(2) Press the [PATT. PRGM.] button.
The "Pattern Program Edit" window opens.
(3) Select the pattern program to be edited and press the [Edit Prgm]
button.
The search function can be used to quickly find appropriate
pattern programs.
Enter characters in the text box under the [All] and [Search]
buttons and press the [Search] button. The program names
which start with the entered characters are displayed in the "Pro-
gram Name" pane.
"*" (asterisk) and "?" (question mark) can be used as wild cards.
abc* : The search function retrieves the program names which start
with "abc".
a?c : The search function retrieves the program names which start
with "a" and contain "c" as the third character.
When the [All] button is pressed, all pattern programs are displayed.
0308-004 2-79
AHB01EDTP
4.1 Basic Operations
4.1.2 Composition of "Pattern Program" Edit Window
This session describes the composition and the icons on the toolbars
of the "Pattern Program" edit window.

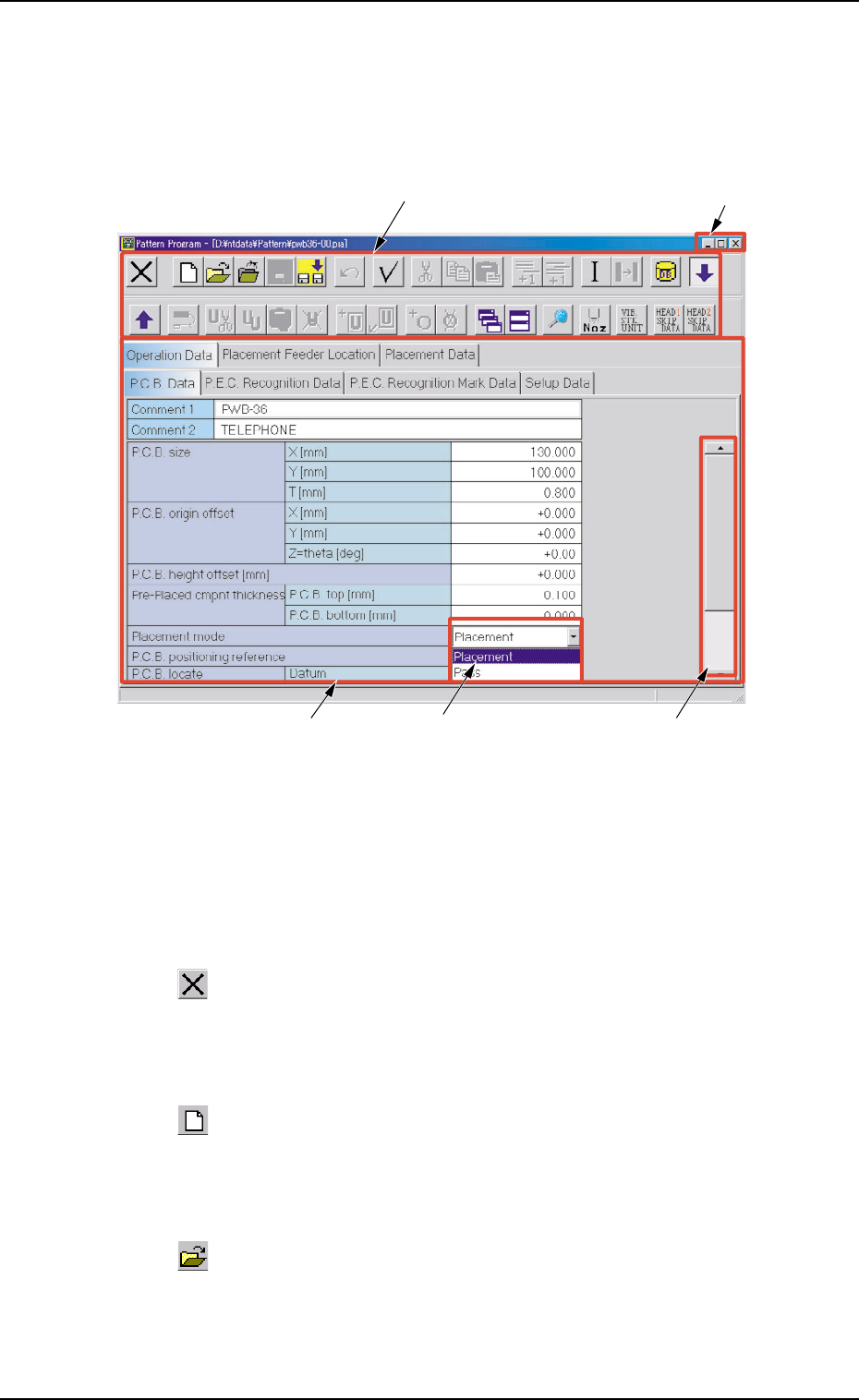

Fig. 3B141 "Pattern Program" Edit Window
*1 Toolbar
The "Pattern Program" edit window is provided with the operation
commands (the icons on the toolbars) that can be executed.
: Exit
When pressed, this closes the "Pattern Program Edit" win-
dow.
: New
When pressed, this opens a new "Pattern Program" win-
dow.
: Open File
When pressed, this opens an existing "Pattern Program" edit
window.
0308-004 2-80
AHB01EDTP
*1 Toolbar
*2
*5
*3 Edit Sheet
*4 Drop-Down List
4.1 Basic Operations
