Output mode
Select "Standard", "Interval", or "SMEMA" to determine how to
transfer a P.C.B. from the main machine to the output machine.
Standard
When the output machine is manufactured by us, set "Standard"
in the text box.
When the work request signal is received from the output ma-
chine, the P.C.B. transfer signal of the machine is turned ON and
a P.C.B. is transferred to the output machine by the output con-
veyor.
When the work request signal is not turned OFF within the speci-
fied time after a P.C.B. unloading action has started, the machine
stops in an error condition.
Interval
When the work request signal of the output machine is turned
ON, P.C.B.’s on the machine side are transferred to the output
machine.
The conveyor stops when the output conveyor timer has reached
the specified time.
The machine starts its unloading actions when the unloading con-
dition is fulfilled after the conveyor has stopped running and the
time specified in the "Output interval timer [sec]" text box has
elapsed.
No error detection is made.
SMEMA
P.C.B.’s are transferred according to the "SMEMA" standard.
Output interval timer [sec]
When "Interval" is set in the "Output mode" text box, set the time
as interval time for P.C.B. unloading actions.
The data input range is "0 to 99 seconds".
Fig. 3E73
2.2 "Auto Operation" Tab
Output Conveyor ON Unloading of Subsequent P.C.B.
Controlled by Output
Conveyor Timer #1
Output Interval Timer
This timer gives an interval
time until the subsequent P.C.B.
is unloaded.
0206-002 5-80 AHB01EDTP
0206-002 5-81 AHB01EDTP
2.2 "Auto Operation" Tab
Output conveyor Timer
Timer #1 [sec], Timer #2 [sec], and Buffer setup
Set the time to limit the operating time (P.C.B. reception by the
output machine) of the output conveyor.
(a) Add 2 seconds (approx.) to the time required for
P.C.B. reception by the output machine and set the
time in the text box.
(b) The data input range is "0 to 99 seconds".
Timer #2 [sec]
Set the time to limit the operating time of the output conveyor to
transfer a P.C.B. on the main machine side.
The data input range is "0 to 99 seconds".
Buffer setup
Determine whether or not the P.C.B.’s should be buffered on the
output conveyor.
Set "Enable" or "Disable" in the text box.
Simultaneous transfer setup
Determine whether or not the P.C.B. on the input conveyor should
be transferred to the positioning conveyor and the P.C.B. on the
positioning conveyor to the output conveyor at the same time.
Set "Enable" or "Disable" in the text box.
P.C.B. transfer direction
Set a P.C.B. transfer direction in the text box.
"L Æ R"
The P.C.B. flows from the left to the right.
"R Æ L"
The P.C.B. flows from the right to the left.
When the setting is changed, it is required to perform
the zeroing operation again.
2.2.3 "Transfer Conveyor" Tab
••
••
• Sheet Layout
When the "Transfer Conveyor" tab is pressed in the "Auto Operation"
tab sheet, the following tab sheet appears.

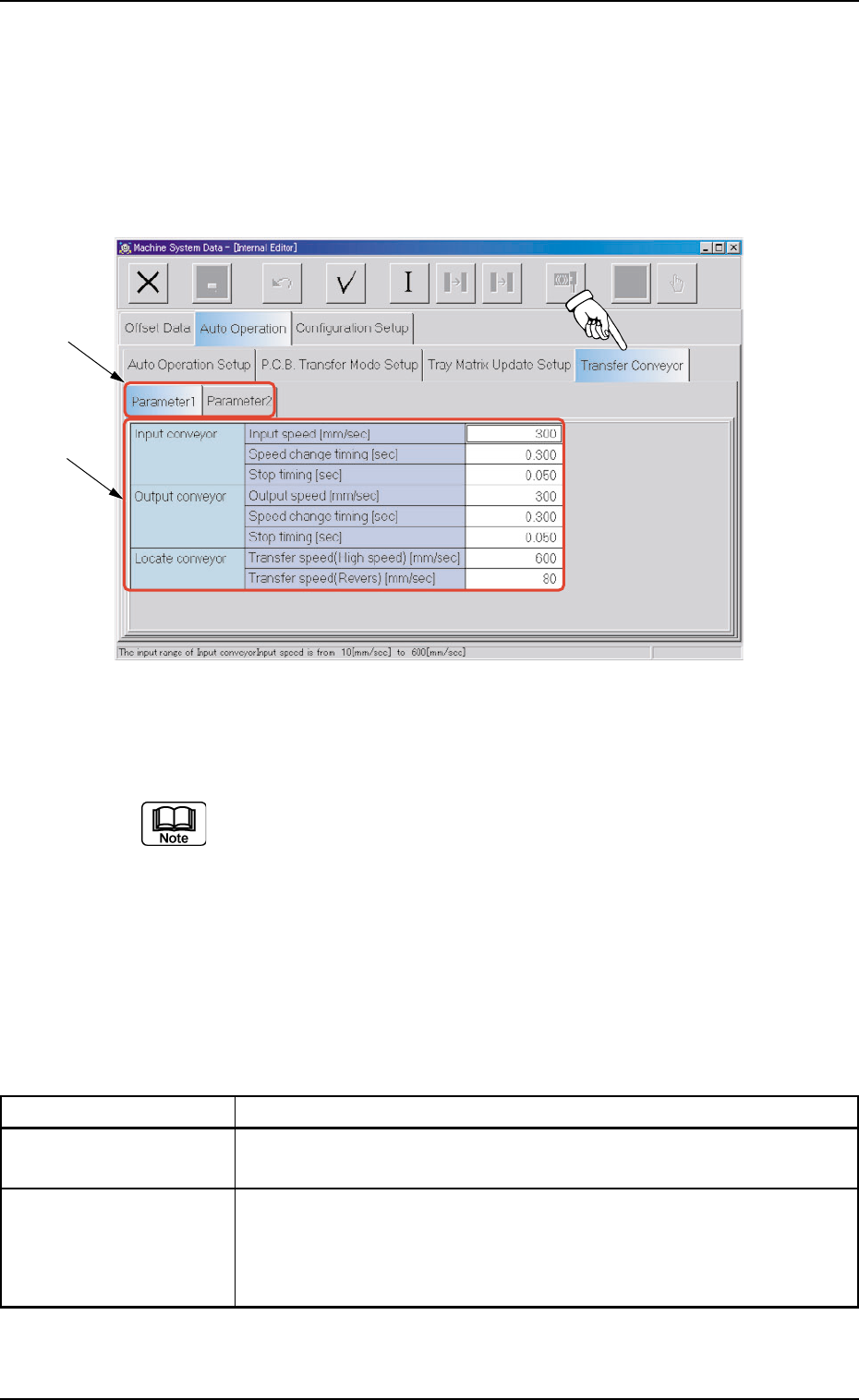

Fig. 3E74 "Transfer Conveyor" Tab Sheet
("Parameter 1" Tab Sheet)
(Provided with Multi-Layer Tray Feeder 2)
The tab sheet may look different, depending on which options are
selected.
••
••
• Sheet Composition
*1 Tabs and Tab Sheets
The "Transfer Conveyor" tab sheet is provided with the following
2 tab sheets. When a tab is pressed, the corresponding tab sheet
appears.
Table 3E12
Tabs Description
Parameter 1 The corresponding tab sheet enables the operator to set the transfer
speed and stop timing of each conveyor.
Parameter 2 The corresponding tab sheet enables the operator to set the P.C.B.
transfer timing of the locate conveyor.
10 kinds of parameters are prepared.
Parameters can be set for "Mode 5" through "Mode 9" (five modes).
