0206-002 5-100 AHB01EDTP
4. "MACH SETUP" Window
••
••
• Window Layout
When the [SYSTEM] button on the main menu bar is pressed, the "SYS-
TEM SEL." menu opens. When the [MACH SETUP] button is selected,
the following window opens.

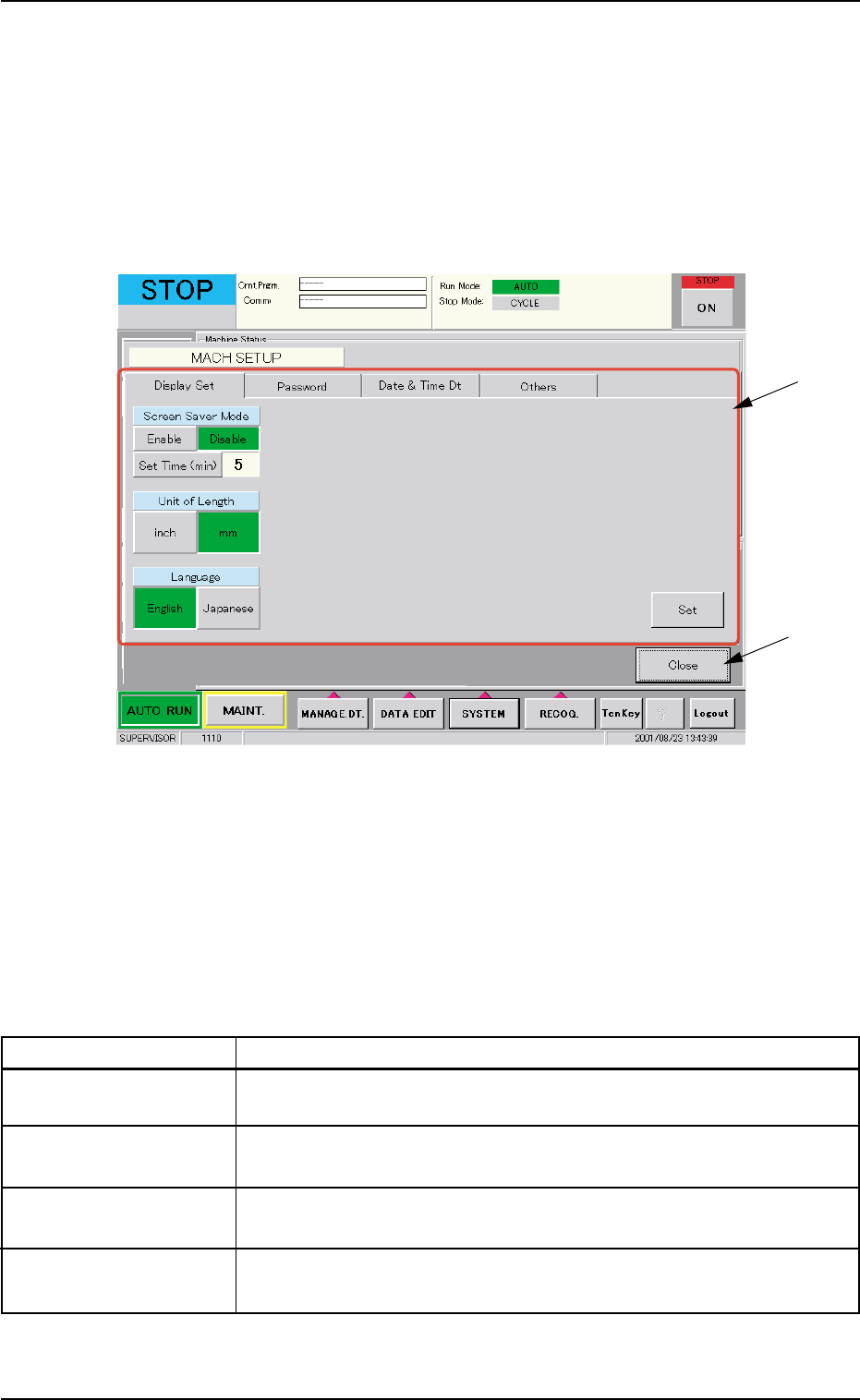

Fig. 3E90 "MACH SETUP" Window
••
••
• Window Composition
*1 Tabs and Tab Sheets
The "MACH SETUP" window is provided with the following 4 tab
sheets. When a tab is pressed, the corresponding tab sheet ap-
pears inside the window.
Table 3E14
Tabs Description
Display Set The corresponding tab sheet enables the operator to set the screen
saver function and specify the unit of length and a language.
Password The corresponding tab sheet enables the operator to set a password
and the scope of authority according to the given authority.
Date & Time Dt The corresponding tab sheet enables the operator to set the system
clock (year, month, day, hours, minutes, and seconds) of the machine.
Others The corresponding tab sheet enables the operator to connect the com-
puter system of the machine to the local network.
*2 [Close] Button
When this button is pressed, the "MACH SETUP" window closes.
4. "MACH SETUP" Window
*1
*2
0206-002 5-101 AHB01EDTP
4.1 "Display Set" Tab
4.1 "Display Set" Tab
The corresponding tab sheet enables the operator to set the screen
saver function and specify the unit of length and a language.
••
••
• Sheet Layout
When the "Display Set" tab is pressed in the "MACH SETUP" window,
the following tab sheet appears.
Fig. 3E91 "Display Set" Tab Sheet
••
••
• Sheet Composition
*1 Screen Saver Mode
When the touch screen is kept intact for the specified period of
time, the screen saver mode starts working to prevent a static
background from being burned into the screen phosphors.
(1) Press the [Enable] button to validate the screen saver mode.
Press the [Disable] button to cancel the screen saver mode.
*4
*1
*2
*3
0206-002 5-102 AHB01EDTP
4.1 "Display Set" Tab
(2) When the [Set Time (min)] button is pressed with the [Enable]
button being selected (the button turns green), the following "Set
Time (min)" edit window opens.
Fig. 3E92 "Set Time (min)" Edit Window
Enter the number of minutes (5 to 60 minutes) you want the screen
to be idle before the screen saver function is activated and press
the [Set] button.
*2 Unit of Length
Press either the [inch] or the [mm] button to select the US cus-
tomary system (inches) or the metric system for the dimensions
to be displayed on the screen.
The selected button turns green, indicating that it is selected.
*3 Language
Press either the [English] or the [Japanese] button to select the
language to be used on the screen.
The selected button turns green, indicating that it is selected.
*4 [Set] Button
The selections in "*1", "*2", and "*3" are determined.
