3 . 1 Basic Operations in "Management Data" Window 3.1.1 T oolbar and Icons The following table shows the functions of the icons on the toolbar . T able 3D4 Commands Icons Functions Close When pressed, this but…
3. "Management Data-[manage (Type #)]" Window
0206-002 4-9 AHB01EDTP
*2 Toolbar
A collection of icons that typically make the common tools for all the
tab sheets easily accessible.
Refer to "3.1 Basic Operations in "Management Data" Window" for
the detailed information on how to use the icons.
*3 Information on Active File
This section displays "Clear Date", "Comment", and "Machine
Name".
*4 Tabs and Tab Sheets
The "Management Data-[manage (Type#)]" window is provided with
the following six tab sheets. When a tab is pressed, the correspond-
ing tab sheet appears inside the window.
Table 3D3
Tabs Description
Machine Performance Data The corresponding tab sheet enables the operator to view
various counts (results of accumulated data) as machine
performance data.
Sub-System Error Counts The corresponding tab sheet enables the operator to view the
summed number of errors that occurred on each individual
devices during automatic operation.
Handling Errors Per Feeder The corresponding tab sheet enables the operator to view the
pick-up data of each individual feeders.
Head Management Data The corresponding tab sheet enables the operator to view
various counts (results of accumulated performance data) of
each individual heads.
Nozzle Management Data The corresponding tab sheet enables the operator to view
various counts (results of accumulated performance data) of
each individual nozzles.
Handling/Placement Data The corresponding tab sheet enables the operator to view the
component pick-up and placement data.
3.1 Basic Operations in "Management Data" Window
3.1.1 Toolbar and Icons
The following table shows the functions of the icons on the toolbar.
Table 3D4
Commands Icons Functions
Close When pressed, this button closes the "Management
Data" window.
Type1 When pressed, this button opens the "Management
Data - [manage (Type1)" window.
Type2 When pressed, this button opens the "Management
Data - [manage (Type2)" window.
Cascade When the "manage (Type1)" and "manage (Type2)"
windows are opened at the same time, cascading the
windows overlays them so that you can see each title
bar.
Tile Horizontally When the "manage (Type1)" and "manage (Type2)"
windows are opened at the same time, each window
is re-arranged up and down.
Tile Vertically When the "manage (Type1)" and "manage (Type2)"
windows are opened at the same time, each window
is re-arranged side by side.
Show Chart A chart appears.
3.1 Basic Operations in "Management Data" Window
0308-003 4-10 AHB01EDTP

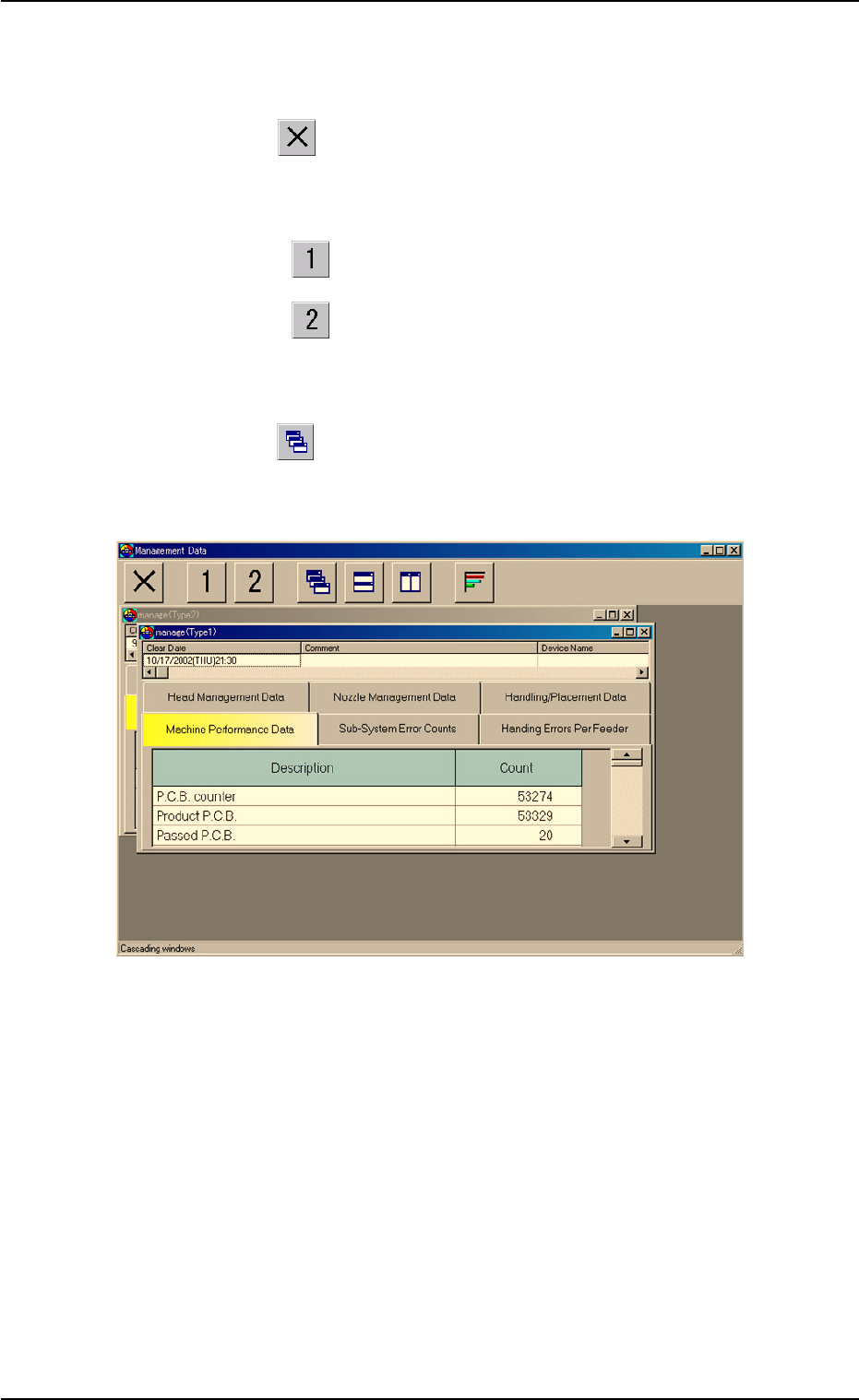

3.1.2 Navigations in "manage (Type #)" Windows
(1) How to close the "mange (Type #)" window
When the "
" icon is pressed, the "Management Data" window
closes.
(2) How to select a "manage (Type #)" window
When the " " icon is pressed, the "Management Data -
[manage(Type1)" window opens.
When the " " icon is pressed, the "Management Data -
[manage(Type2)" window opens.
(3) How to cascade two "manage (Type #)" windows
When the "
" icon is pressed, the "manage (Type1)" and "man-
age (Type2)" windows are cascaded (overlaid), making each title
bar visible.
Fig. 3D6 Cascaded Window
3.1 Basic Operations in "Management Data" Window
0308-003 4-11 AHB01EDTP
