Samsung Component Placer CP-45F(V)/FS Operations Manual
5-2
In case of using lift crane, the equipment should be performed as following procedure.
Insert two lifting steel bar through the hole in frame for lifting.
Install sling(clothing material) as following figure
Balance the center of gravity of equipment
Lift and move the equipment by using crane.

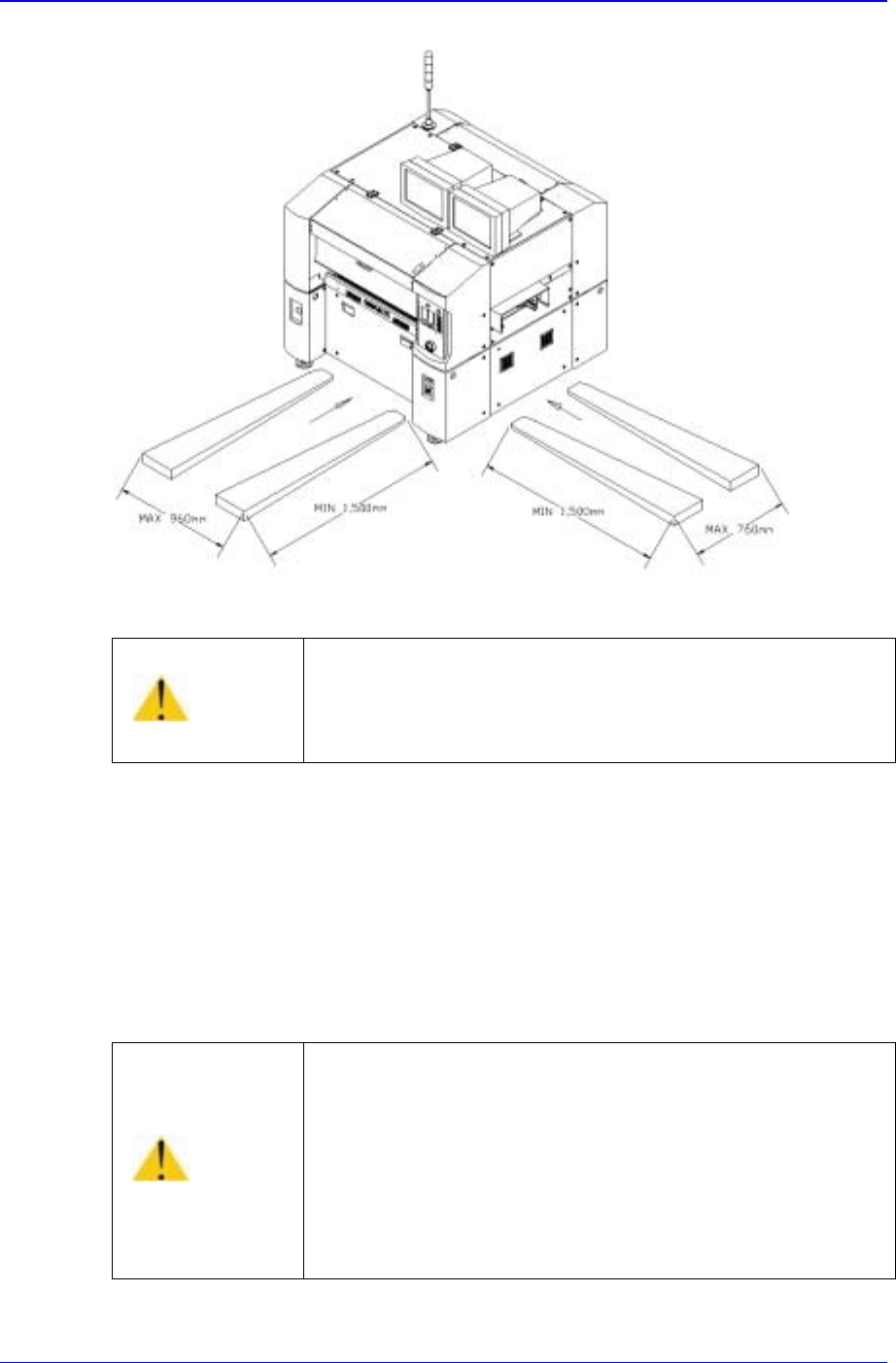

Caution
If the lift arm touches the bottom of the cover, the cover will
be damaged. The top surface of the lift arm must touch the
flat surface of the frame of the lower part of the machine.
Caution
When the machine is moved with a crane, it must be moved
with a crane that can handle twice the machine weight.
Otherwise, the machine might be damaged or injury could
occur. Be sure to use a crane that can handle twice the
machine weight. Be sure to use the specified bar for the
steel bar also.
Transfer & Installation Procedure
5-3
3. U
nwrap all packing materials covering the exterior of the main body of equipment, and
remove desiccants for preventing moisture buildup.
4. In case of in-line installation, adjust the height of the conveyors connecting the
equipment parts for the previous machine and next machine by turning the screws in
the foot.
Caution
If the machine is located on a surface that is not firm or
made of shock absorbent material such as wood, excessive
vibration could occur during operation of the machine.
Be sure to install the machine on a firm surface.
Samsung Component Placer CP-45F(V)/FS Operations Manual
5-4
Figure 5-1. Height Adjustment of Equipment - Use a spanner supplied
5. Ensure the level surface by placing a leveling device on top of the feeder base and
L/M guide of Y1 axis.
6. I
n
stall the keyboard, mouse, and mouse pad on the front upper cover after leveling the
surface, and then install the teaching box.
7. Install the monitor and signal tower.
Caution
If the machine is not level, the level of machine precision
could be affected.
Be sure to keep the machine level and check if the feet are
tightened properly.
Caution
If two monitors are placed side by side, the life span of
monitors could be affected.
Leave an interval of 30 cm or more between two monitors.
