Samsung Component Placer CP-45F(V)/FS Operations Manual
9-8

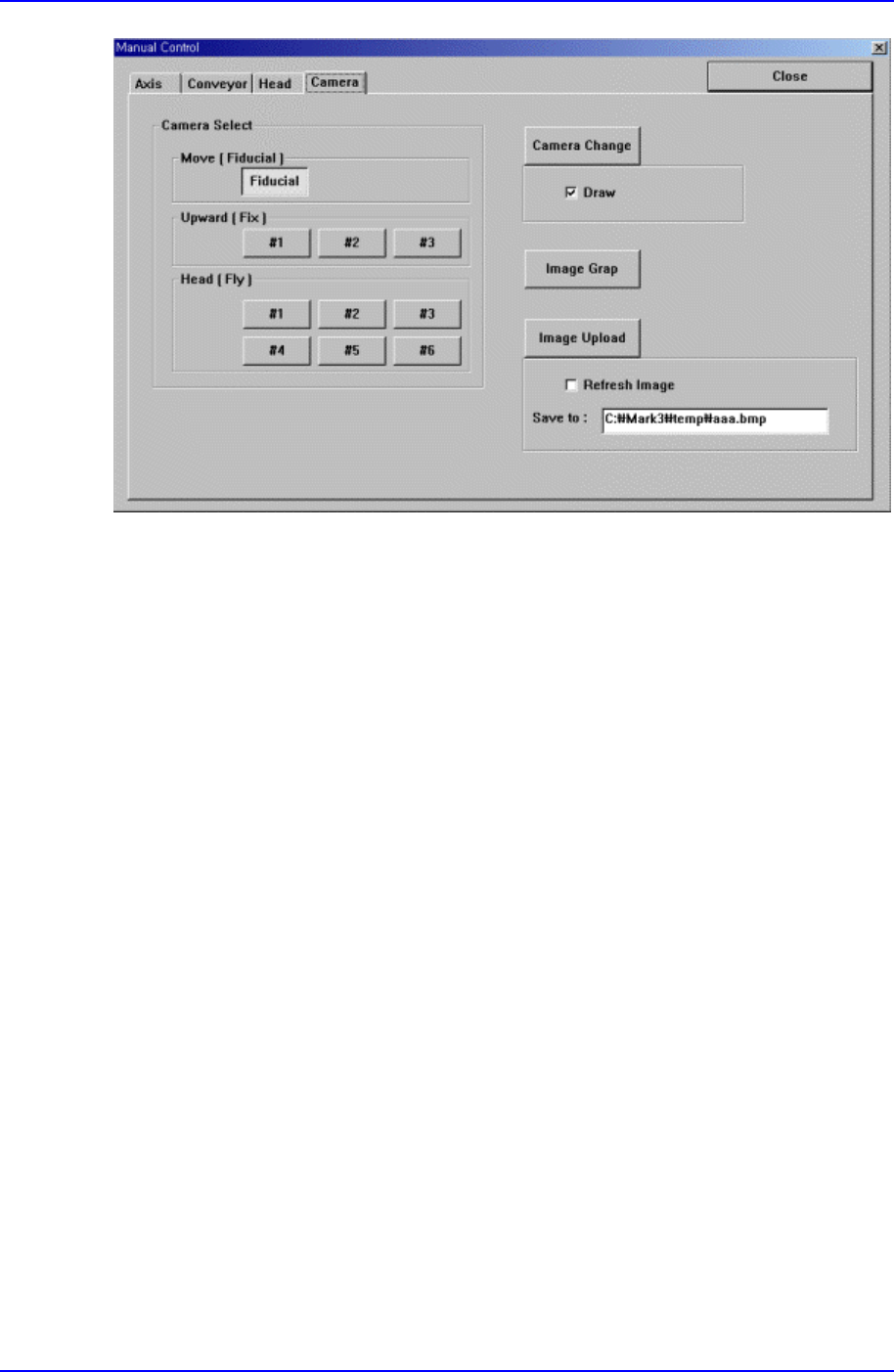

Figure 9-5. “Manual Tools – Camera” dialog
9.2. Current Position
<Position Window> command displays the current position of each axis and the name of
the nozzle installed on the head in real time. When this command is selected, the
following window is displayed on the MMI main screen.
View Commands
9-9

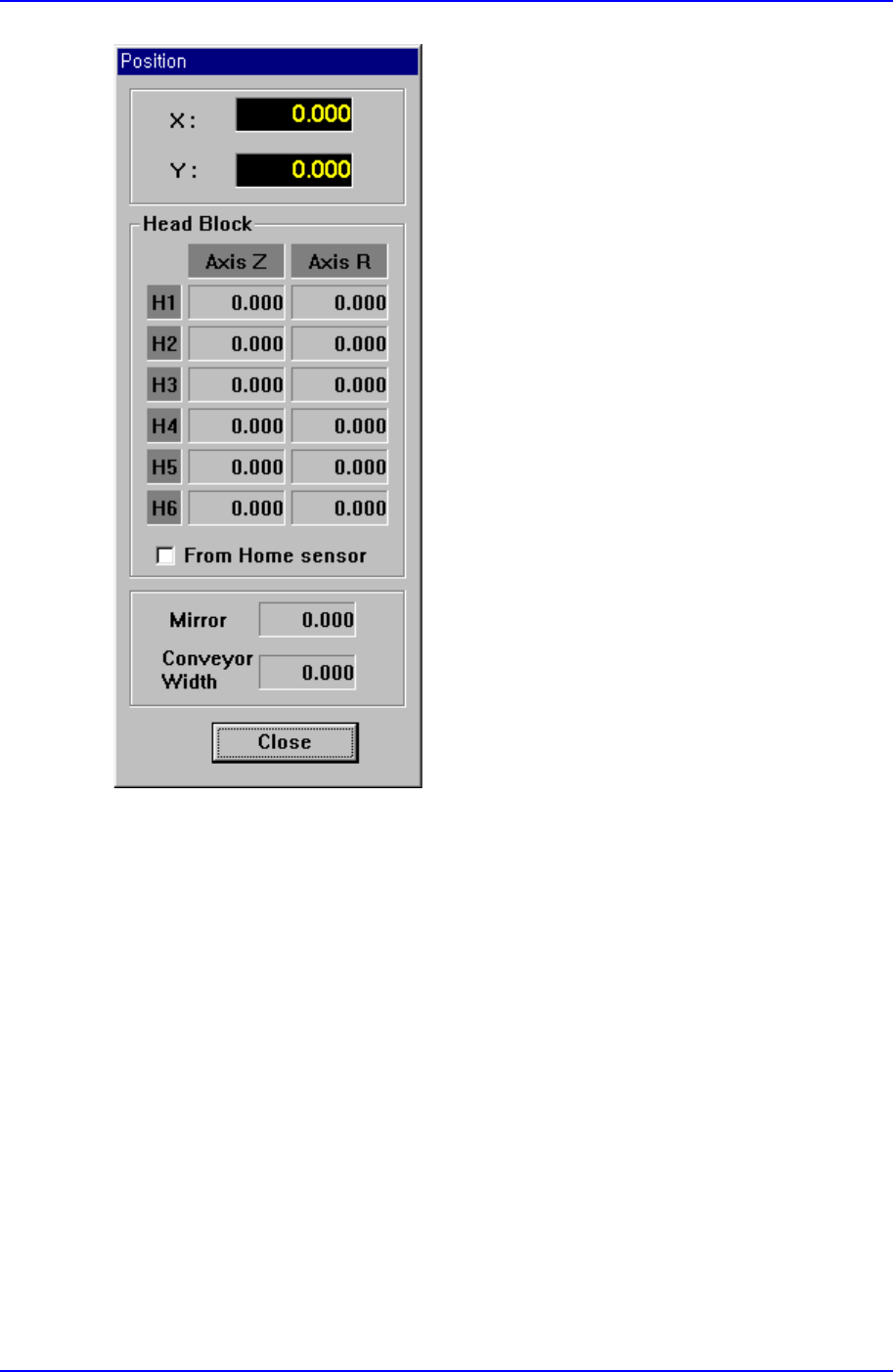

Figure 9-6. “Position” message box
X:
Displays the current position of Head1 in X-direction from the mechanical origin.
Y:
Displays the current position of Head1 in Y-direction from the mechanical origin.
Head Block Group
Head1/Axis Z
Displays the current height of Head1.
Head1/Axis R
Displays the current rotational angle of Head1.
Head2/Axis Z
Samsung Component Placer CP-45F(V)/FS Operations Manual
9-10
Displays the current height of Head2.
Head2/Axis R
Displays the current rotational angle of Head2.
Head3/Axis Z
Displays the current height of Head3.
Head3/Axis R
Displays the current rotational angle of Head3.
Head4/Axis Z
Displays the current height of Head4.
Head4/Axis R
Displays the current rotational angle of Head4.
Head5/Axis Z
Displays the current height of Head5.
Head5/Axis R
Displays the current rotational angle of Head5.
Head6/Axis Z
Displays the current height of Head6.
Head6/Axis R
Displays the current rotational angle of Head6.
Mirror
Displays the current location of the mirror for the fly camera.
Conveyor Width
Displays the current location of conveyor width.
<Close> button
Closes the “Position” message box and finish <Current Position> command.
9.3. System Error Message
The <System Error Message> command is used to check the error message window
which is displayed when there is an equipment error.
