Samsung Component Placer CP-45F(V)/FS Operations Manual
xii
Items in a dialog box or message box
Terms used in explaining the screen (dialog boxes, message boxes, etc.) of MMI are
shown below:

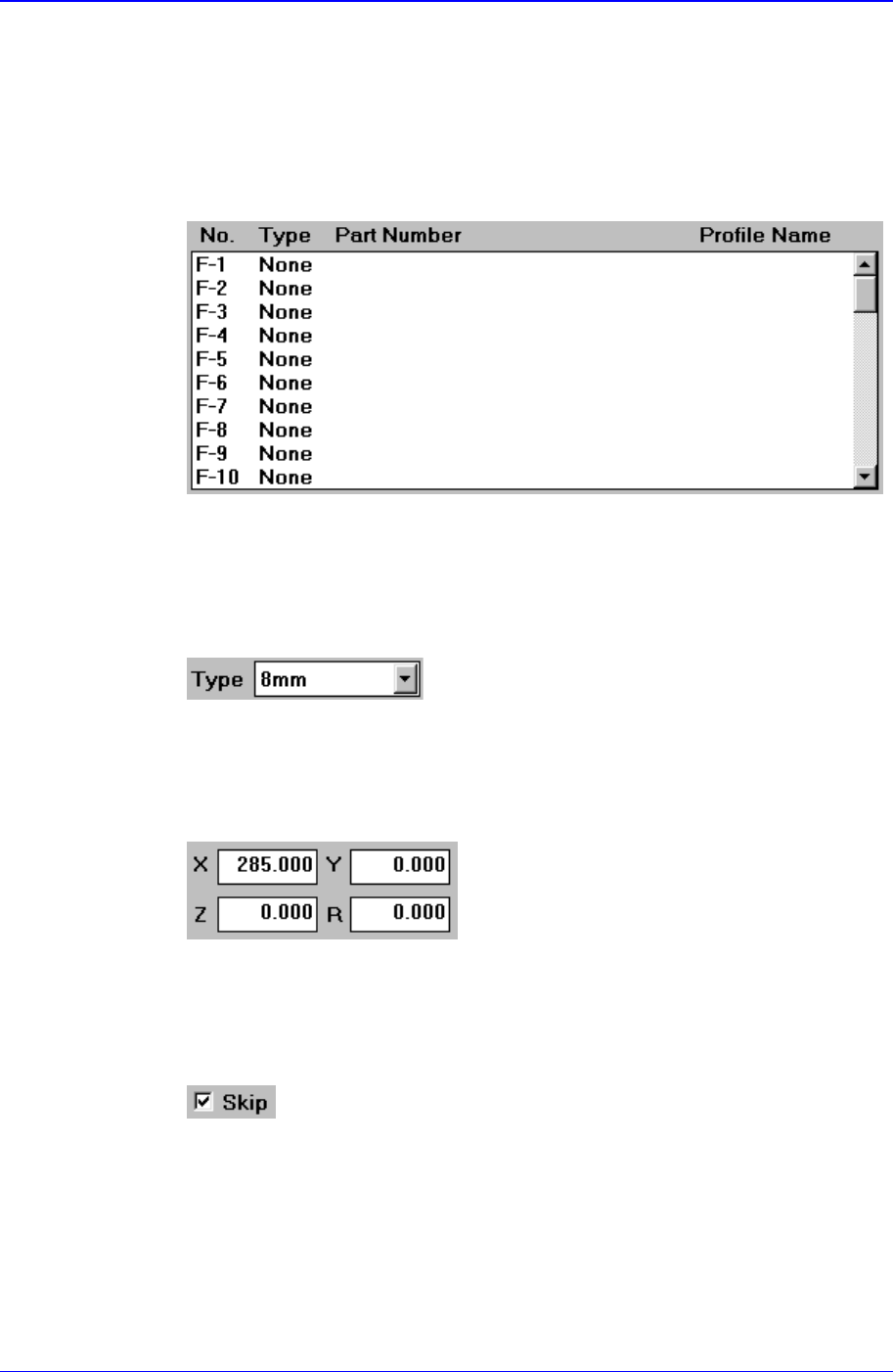

List box
This box selects one value from among several previously inputted values..
Combo box
This has the same function as the list box in that one of many inputted values can
be selected from this box. contrary to the list box, however, the entire values are
displayed by pressing an arrow button at lower right.
Edit box
Values can be inputted into this box. If a white portion is clicked on with a
mouse, it enters the state ready for inputting values.
Check box
This button enables determination of whether to use a function presented or to
select from multiple.

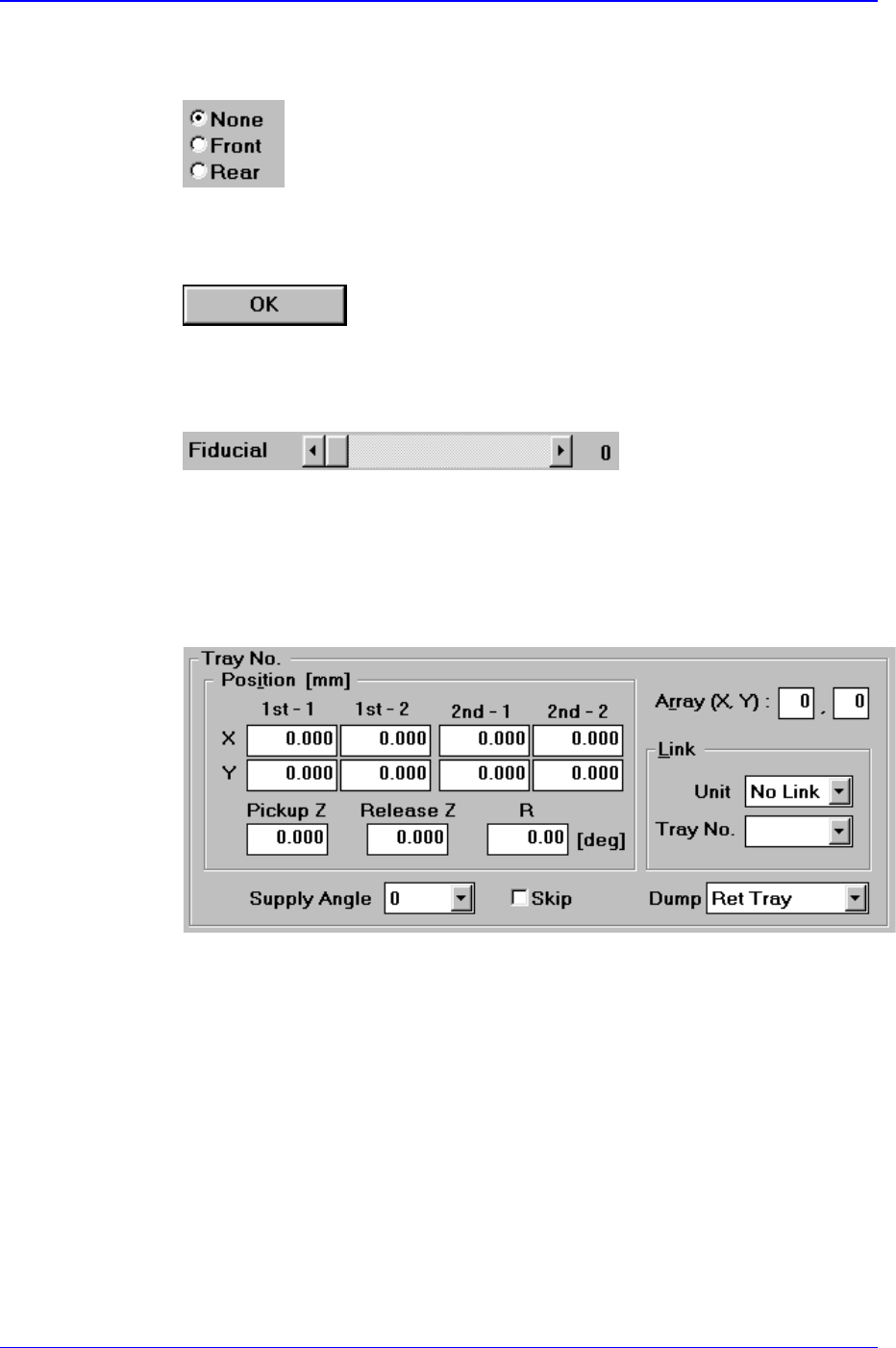

Option button
Preface
xiii
This button is used when selecting only one from among many options. If one
button is clicked on, selection of another button is disabled.
Other buttons
These buttons perform various prescribed operations when pressed.
Control box
This is a box for adjusting the set values by using a scroll bar.
Group
The above items are gathered into this area. In this manual, it is called “<XX>
group” based on the name XX above the group.
Example: <Tray No.> group
Mouse manipulation
The following terms are related to manipulating the mouse.
Click or select
Press once the corresponding item with the left button of the mouse by moving
the pointer of the mouse.
Double click
Press twice in rapid succession the corresponding item with the left button of the
mouse by moving the pointer of the mouse.
the pointer of the mouse.
Samsung Component Placer CP-45F(V)/FS Operations Manual
xiv
Screen display
The main screen of MMI of this equipment is shown below:
Pictures showing a dialog box or message box of MMI are inserted to produce this
manual. Therefore, the screens shown in the manual and various settings, values and
contents included within may vary depending on the machine installed or the operational
environment. The MMI screens shown in the manual are inserted for more detailed
reference and explanation. They are produced by enlarging or reducing the contents
appearing on the main screen of MMI.
In addition, pictures inserted in this manual are prepared based on the CP-45FV model,
and therefore, some discrepancies may exist depending on the model.
Memo
The states of nozzles ed on each head are indicated.
X, Y coordinates of the head
position based on head1 are
indicated.
A main menu tool-bar is shown.
Use a menu bar as in a general window
application program
A help message applicable to the
present state as well as the state
of the equipment (IDLE, RUN,
FREEZE, WAIT, PAUSE) is
indicated.
A sub menu tool-bar is shown.
