Sys.Setup Command 15-25 Figur e 15-14. “ Sys. Setup : System Pr efer ence - Option ” dialog box <System ANC Option> check box Set whether to use or not to use the ANC type available for the equipment. To use the …
Samsung Component Placer CP-45F(V)/FS Operations Manual
15-24

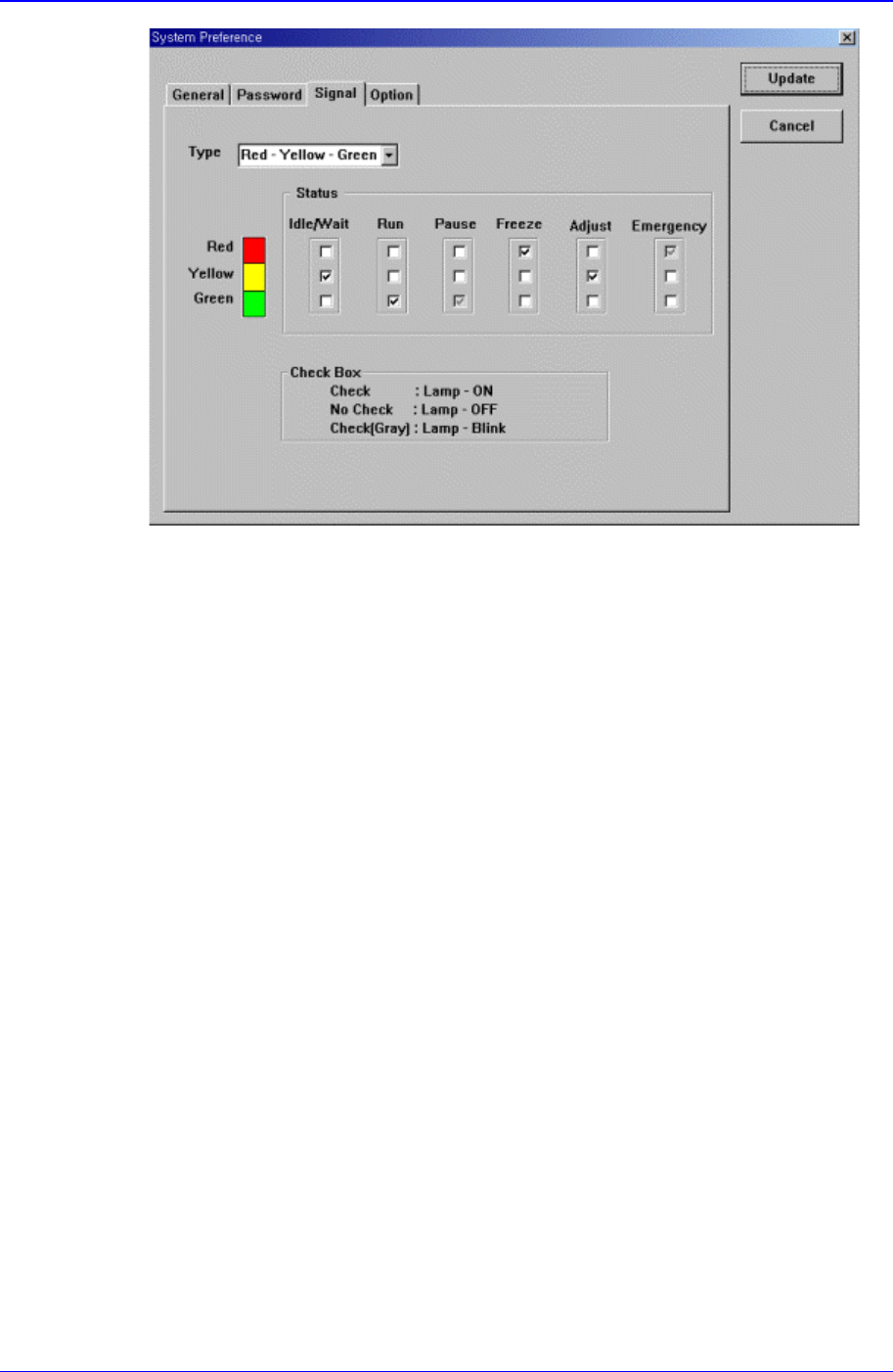

Figure 15-13. “Sys. Setup : System Preference - Signal” dialog box
<Type> combo box
Select the signal tower type. Available types are as follows.
Red – Yellow – Green: When the signal tower lamp consists of “Red – Yellow –
Green”.
Red – Blue – Green: When the signal tower lamp consists of “Red – Blue –
Green”.
<Status> group
Set the status of the signal tower lamp corresponding to the equipment status.
For example, if you want to turn on the “Yellow” lamp of the signal tower in the
idle/wait status, check the corresponding “Yellow” lamp check box among the 3
check boxes under the Idle/Wait.
The status and meanings of the check boxes are as follows.
Checked: Turns on the corresponding lamp.
Not checked: Turns off the corresponding lamp.
Checked in gray: Flickers the corresponding lamp.
<Option> option button
Set whether to use or not to use the ANC and camera and set the constant parameter
to be used for the vision system. When this button is selected, the following screen is
displayed.
Sys.Setup Command
15-25
Figure 15-14. “Sys. Setup : System Preference - Option” dialog box
<System ANC Option> check box
Set whether to use or not to use the ANC type available for the equipment. To
use the corresponding ANC type, check the check box.
<System Upward Camera> check box
Set whether to use or not to use the fix camera type available for the equipment.
To use the corresponding camera type, check the check box.
<Vis. Option Parameter> Grid group
Set the constant parameter available for the vision system. The number of
available parameters is 20.
<Use Non Stop > check box
사용자가 Non Stop Feeder 를 사용시에만 체크를 합니다. 피더의
공급방식에 따라 Feeder Base, Feeder Base Docking, Feeder Base
Docking+IQ 로 구분되어 있습니다.
<Buzzer> check box
이 체크박스를 체크하면, Non Stop Feeder 로 작업시 부품의 잔여량
기준값에 미달할 경우 신호음을 발생시킵니다.
<Update> button
Transmits the set option to the equipment and closes the dialog box.
<Cancel> button
Ignores the set option and closes the dialog box.
Samsung Component Placer CP-45F(V)/FS Operations Manual
15-26
15.10. Device [F10]
Controls the data related to the tape, stick, and nozzle. When this button is selected, the
following dialog box is displayed.
Figure 15-15. “Sys. Setup : Standard Device - Tape” dialog box
<1. Device List> list box
Select the device to set.
The above screen is the case where the “Tape” is selected in the Device list.
Set the data on the tape feeder.
<1. Tape Type> list box
Select the tape feeder type to set.
<2. Default Push Count> combo box
Select how many times the pusher should be operated to move forward the tape
feeder.
<3. Pusher [Front Side Referenced] – Left Pusher Number> combo box
Set the number of pushers to be operated to move forward the tape feeder.
Based on the slot in which the tape feeder is installed, select the number of pushers
on the left of the corresponding slot.
<3. Pusher [Front Side Referenced] – Right Pusher Number> combo box
Set the number of pushers to be operated to move forward the tape feeder.
Warning
Changing the set up status by an unauthorized user
could damage the machine or result in personal injury.
Unauthorized user must not change the set up status of
the machine.
