Chapter 11. PCB Edit Command

The <PCB Edit> Command is composed of the eight submenus: Board, Part, Feeder,

Step, ANC Cfg, Cycle, Opti, Cancel.

Used to edit data for the placement of components on a PCB (Printed Circuit Board ).

When a submenu of the <PCB Edit> command is selected, the corresponding dialog box

is displayed. While the dialog box corresponding to the submenu is displayed, if the menu

is selected again, the corresponding dialog box is activated. Click on the button on the top

right to close the dialog box.

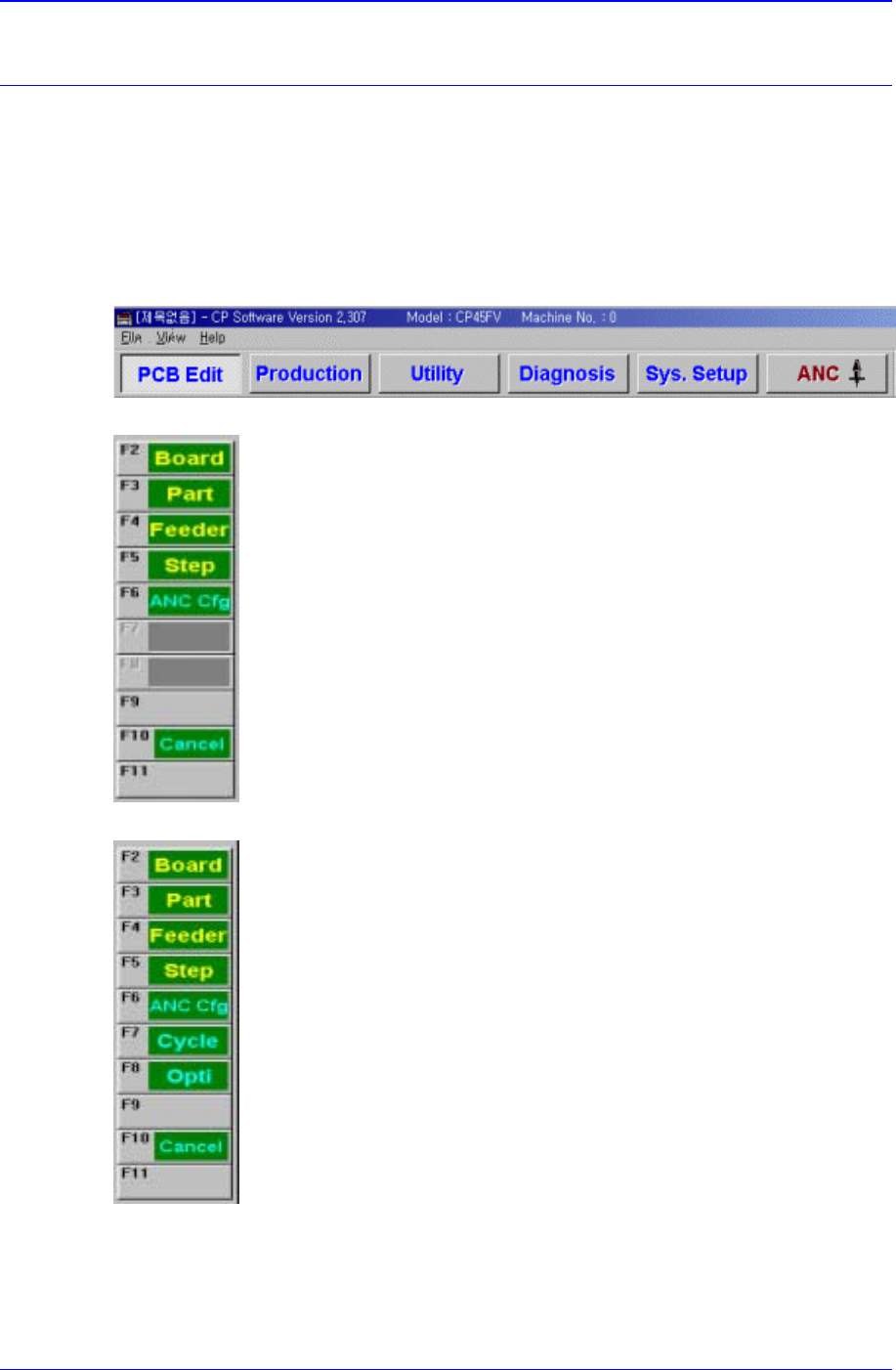

Figure 11-1. When the PCB Edit command is selected

Figure 11-2. Submenus of the PCB Edit command(Initial status)

Figure 11-3. Sub menus of the PCB Edit command(Activated status)

Use the <Board> command to edit the PCB (Printed Circuit Board) setup only. When this

button is selected, the following dialog box is displayed.

Samsung Component Placer CP-45F(V)/FS Operations Manual

11-2

Figure 11-4. “PCB Edit : Board Definition” dialog box

 <1. Customer Name> edit box

Enter the name of the customer who requested the PCB operation. Up to 64

characters can be entered.

 <2. Board Name> edit box

Enter the PCB name. Up to 64 characters can be entered.

 <3. Coordinate> combo box

Select the PCB coordinate system. Available coordinate systems are as follows.

Left-Up : Based on the front of equipment, it is a coordinate system in which

the X axis increases to the left and the Y axis increases to the top.

Right-Up : Based on the front of equipment, it is a coordinate system in which

the X axis increases to the left and the Y axis increases to the top.

Left-Down : Based on the front of equipment, it is a coordinate system in

which the X axis increases to the left and the Y axis increases to the top.

Right-Down : Based on the front of equipment, it is a coordinate system in

which the X axis increases to the left and the Y axis increases to the top.

 <4. Initial Theta >

Set the initial theta for board data editing. At this time, the PCB should be already

loaded in the operation area of the equipment.

 <Initial Theta - Teach> button
