Samsung Component Placer CP-45F(V)/FS Operations Manual 15-28 R2 R1 Sl o t L1 L2 피 더  <4. T iming – Open Tim e> edit box T ime needed to open the shutter of the tape feeder .  <4. T iming – Feeding Tim e> e…

Sys.Setup Command

15-27

Based on the slot in which the tape feeder is installed, select the number of pushers

on the right of the corresponding slot.

 <3. Pusher [Front Side Referenced] – Pusher Map> check box

Set the pusher to be operated to move forward the tape feeder.

When the check box is checked, operates the corresponding pusher.

Next is a figure showing the relationship between the pusher data and the actual

pusher to operate. The solid black circles in the figure indicate the pushers to operate.

1) When Left Pusher = 0 and Right Pusher = 0

R2R1SlotL1L2

피

더

2) When Left Pusher = 1 and Right Pusher = 1

R2R1SlotL1L2

피

더

3) When Left Pusher = 2, Right Pusher = 1

FEEDER

Samsung Component Placer CP-45F(V)/FS Operations Manual

15-28

R2R1SlotL1L2

피

더

 <4. Timing – Open Time> edit box

Time needed to open the shutter of the tape feeder.

 <4. Timing – Feeding Time> edit box

Time needed to feed the tape feeder.

 <5. Pickup Offset - X> edit box

Set the X offset value of the pickups point position of the tape feeder.

Based on the setting of the tape feeder in the front of the equipment, set the offset

value of the pickups point of other feeders against the pickups point of the 8mm tape

feeder.

 <5. Pickup Offset - Y> edit box

Set the Y offset value of the pickups point position of the tape feeder.

 <5. Pickup Offset - Z> edit box

Set the Z offset value of the pickups point position of the tape feeder.

 <6. Width - Left> edit box

Set the left width of the tape feeder.

 <6. Width - Right> edit box

Set the right width of the tape feeder.

Next screen is the case where the “Stick” is selected in the Device list.

Set the data on the stick feeder.

FEEDER

Sys.Setup Command

15-29

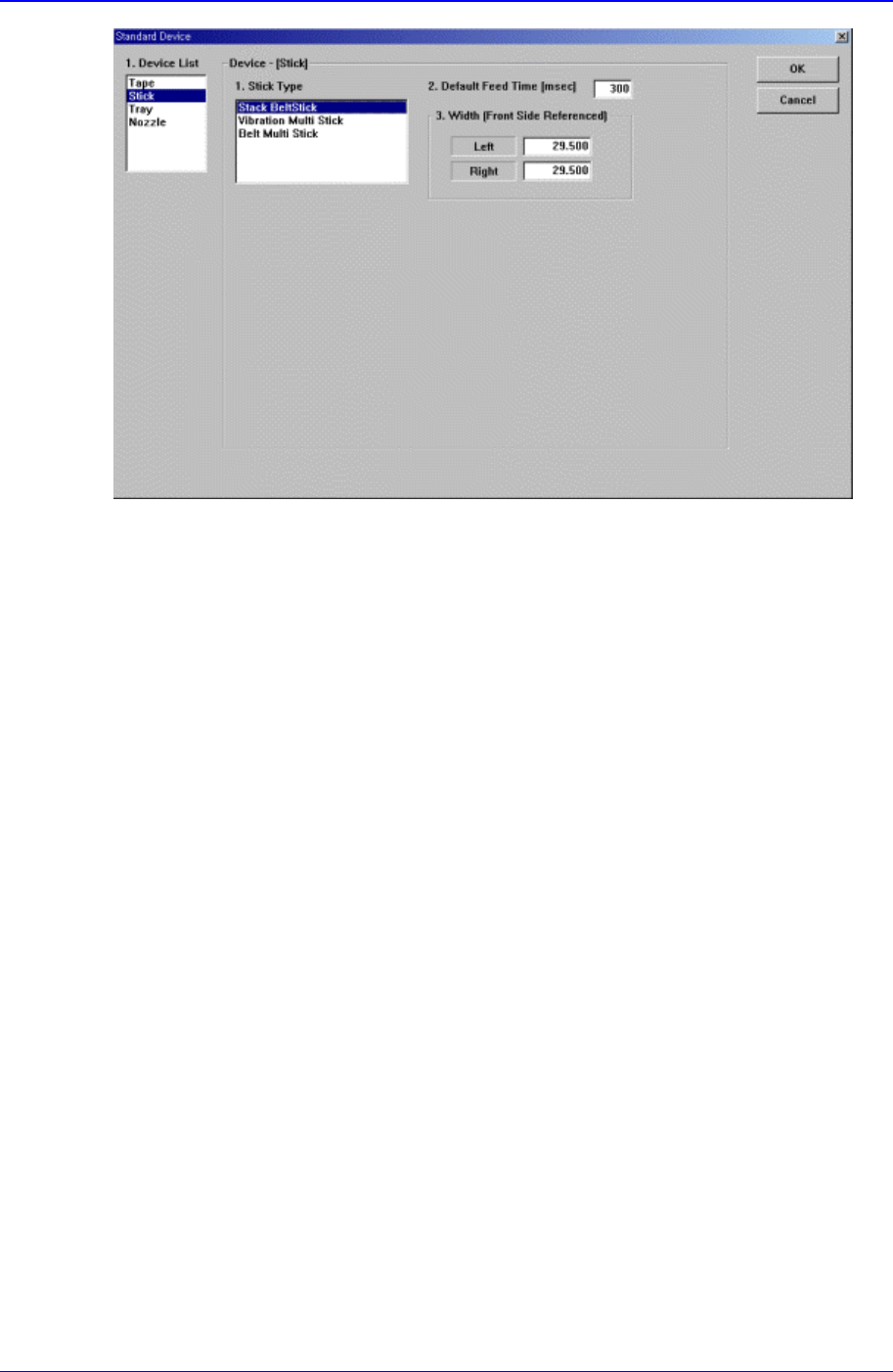

Figure 15-16. “Sys. Setup : Standard Device – Stick” dialog box

 <1. Stick Type> list box

Select the stick feeder type to set.

 <2. Default Feed Time> edit box

Set the feed time.

 <3. Width – Left> edit box

Set the left width of the stick feeder.

 <3. Width – Right> edit box

Set the right width of the stick feeder.

Next screen is the case where the “Tray” is selected in the Device list.

Set the data on the tray feeder.
