Samsung Component Placer CP-45F(V)/FS Operations Manual 11-68 11.1.16. BGA component data setting Set the align data for BGA components. Figur e 1 1-43. “ Align T ype = V ision, Package Gr oup = BGA ” di alog box <C…
PCB Edit Command
11-67

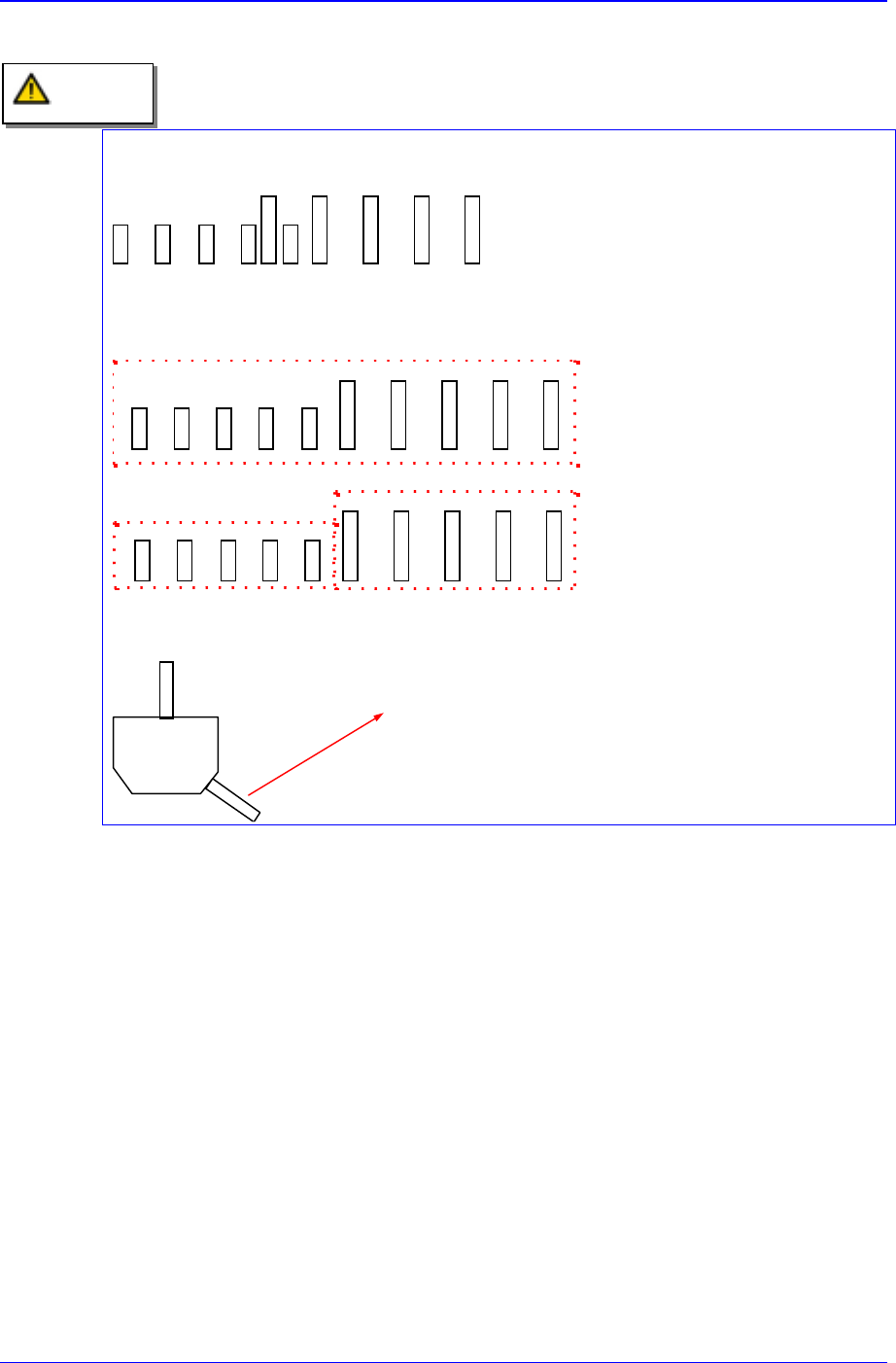

Restrictions
Adjacent lead groups cannot overlap.
Invalid. Because the two lead
groups are overlapped.
One lead group uses one lead parameter. In other words, a lead group should only
contain leads of the same type.
This lead group cannot be
registered as single lead group
because the lead parameters are
different.
These lead groups are registered
as separate lead group because
the lead parameters are different.
Leads groups are placed only at right angle directions.
In this case, this pin cannot be a lead.
Caution
Samsung Component Placer CP-45F(V)/FS Operations Manual
11-68
11.1.16. BGA component data setting
Set the align data for BGA components.

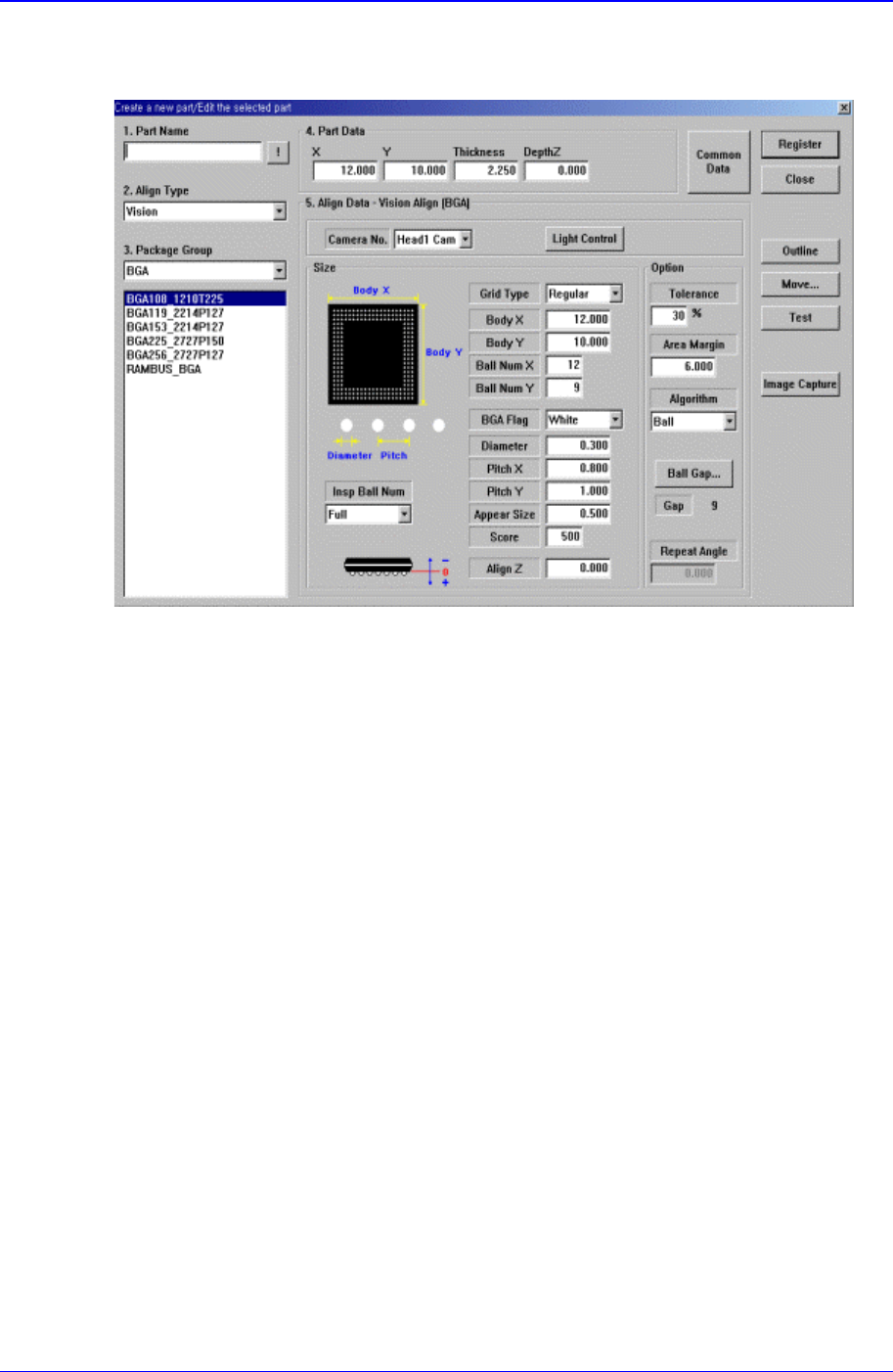

Figure 11-43. “Align Type = Vision, Package Group = BGA” dialog box
<Camera No.> combo box
Select the camera to recognize the component.
<Light Control> button
Set the light for the camera to recognize the component.
<Size> group
Set the align size.
<Grid Type> combo box
PCB Edit Command
11-69

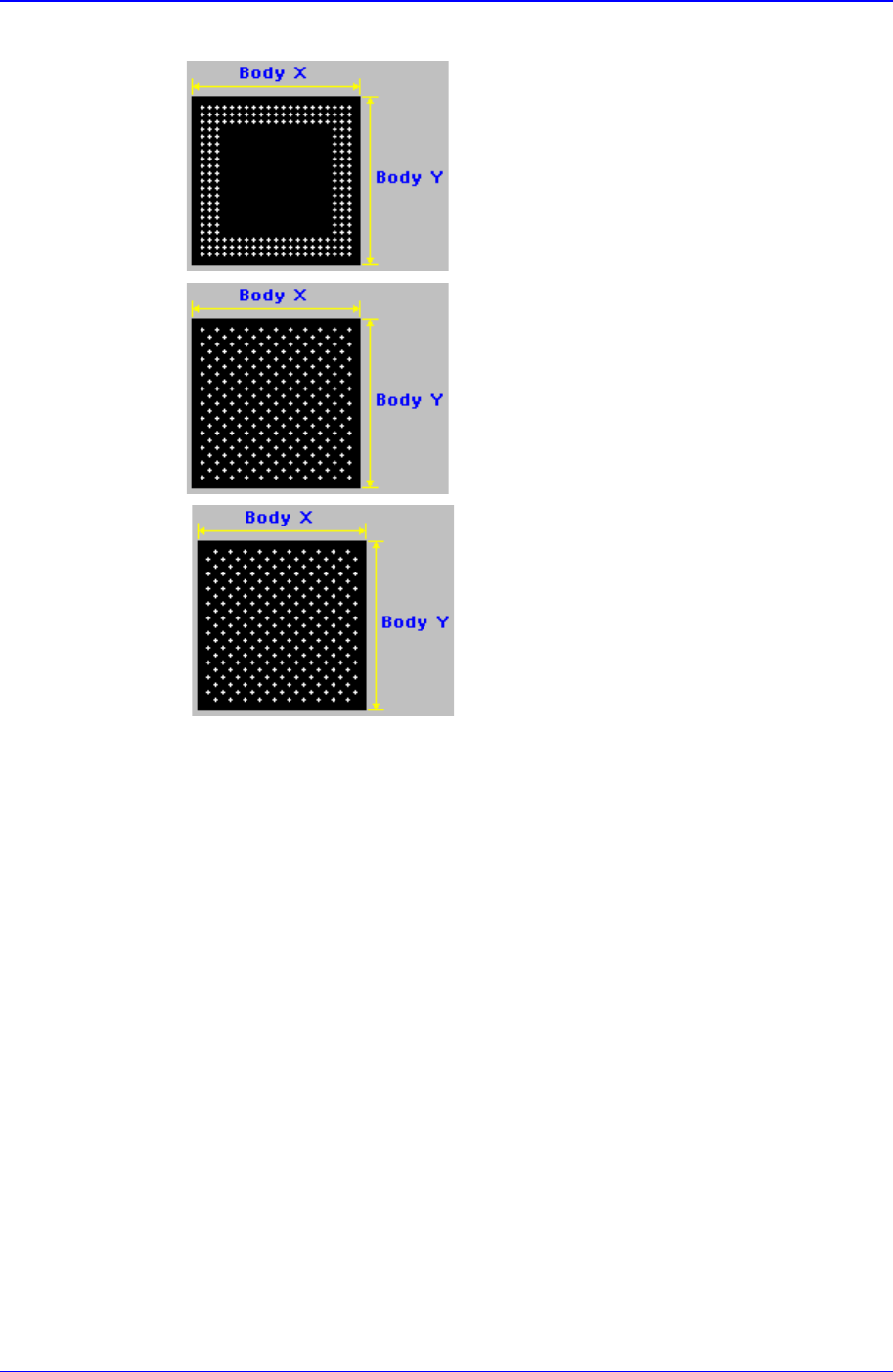

Select the ball array of BGA components. Available types are as follows.
Regular
Check
.
Rev. Check (Reverse Check)
<Body X> edit box
Set the size of component body in X direction.
<Body Y> edit box
Set the size of component body in Y direction.
<Ball Num X> edit box
Set the number of balls in X direction. In the case of “Check” or “Rev. Check”
type, the empty area is also included. Therefore, in the case of “Check” or “Rev.
Check” type, the number of balls is always an odd number.
<Ball Num Y> edit box
Set the number of balls in Y direction. In the case of “Check” or “Rev. Check”
type, the empty area is also included. Therefore, in the case of “Check” or “Rev.
Check” type, the number of balls is always an odd number.
<BGA Flag> combo box
