Preface
iii
Safety Precaution
Following labels described in each section are attached on specific position of this
machine. Follow the instructions on each label for operating this machine safely. If a label
has come off or has damaged, put a new one on a proper position referring to the
following figures. For ordering a new label or offering any comment, questions, please
contact to the business department or the C/S Company (STS) designated by Samsung
Techwin Co., Ltd..
Front View of the Machine
The following labels are attached on the front part of this machine.

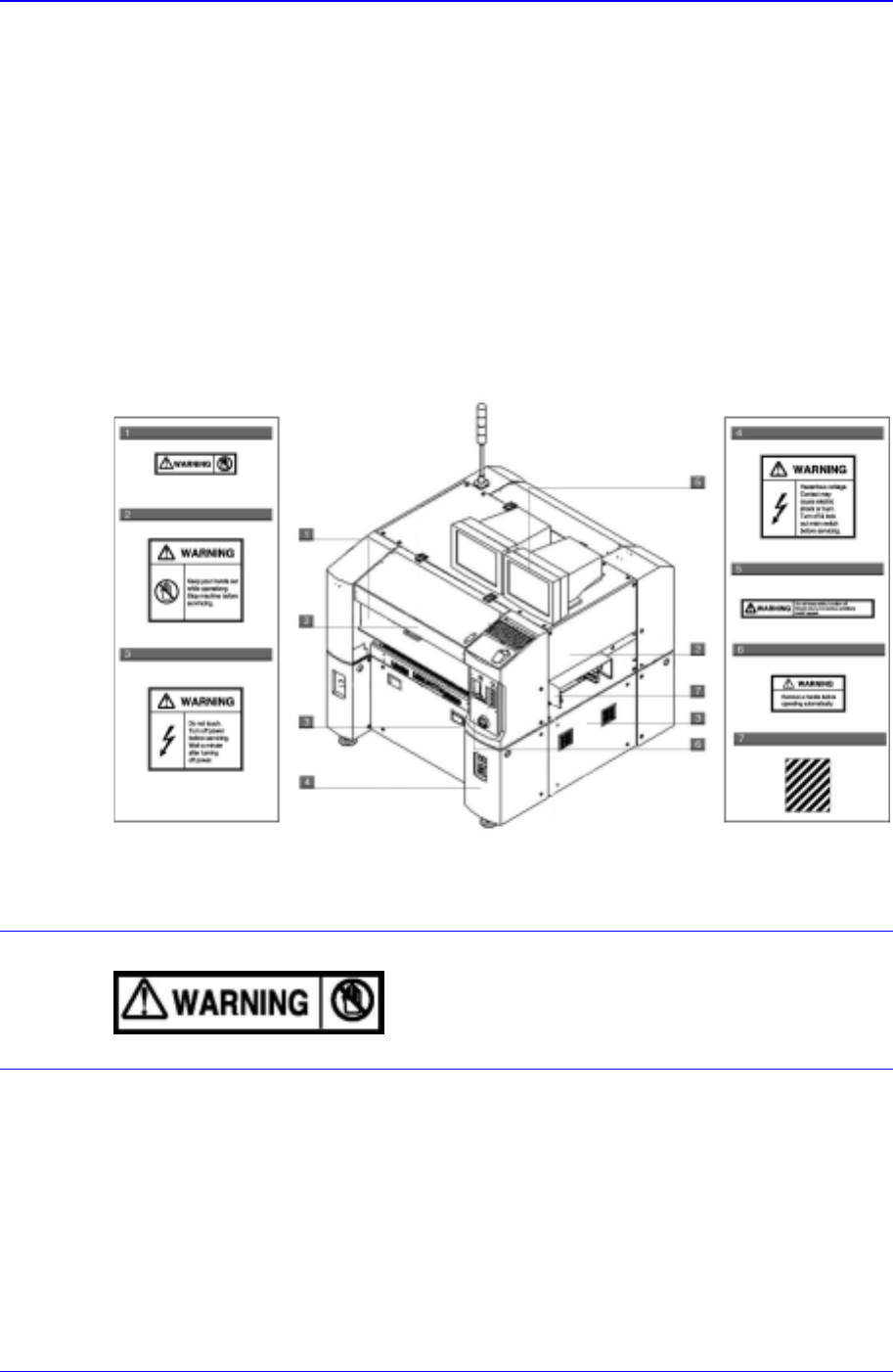

Figure 0-1. Safety labels attached on the front part of the machine
Do not dismantle the head area. It could cause
a serious damage to the head area.
Samsung Component Placer CP-45F(V)/FS Operations Manual
iv
Do not put a hand in during operation.
Part where this label is attached contains
moving parts, it is very dangerous if the use
r
disassembles any part or open the cover when
the moving part is maneuvering.
Stop the machine before servicing.
Stop the machine before repair or maintenance
or error troubleshooting.
If the cover is removed from the area
where this label is attached, it could
result in an electric shock.
When it is necessary to remove the
cover for repair or maintenance,
disconnect power, wait a little while, and
remove the cover.
A
s high voltage flows inside the cove
r
and in the area near the connector, take
precautions against electric shock. Be
sure to disconnect the main powe
r
source and install a lock before
maintenance or repair.
Do not remove the safety device. It could
cause personal injuries or serious
problems.
Remove the handler before automatic
operation.
Preface
v
Caution: Safety Colors and Contrast Colors
Combination of Safety yellow and black may be
used to indicate temporary or permanent risk
locations. – locations where there is moving
part(Conveyor).
