Basic Configuration and Name of Each Part

2-35

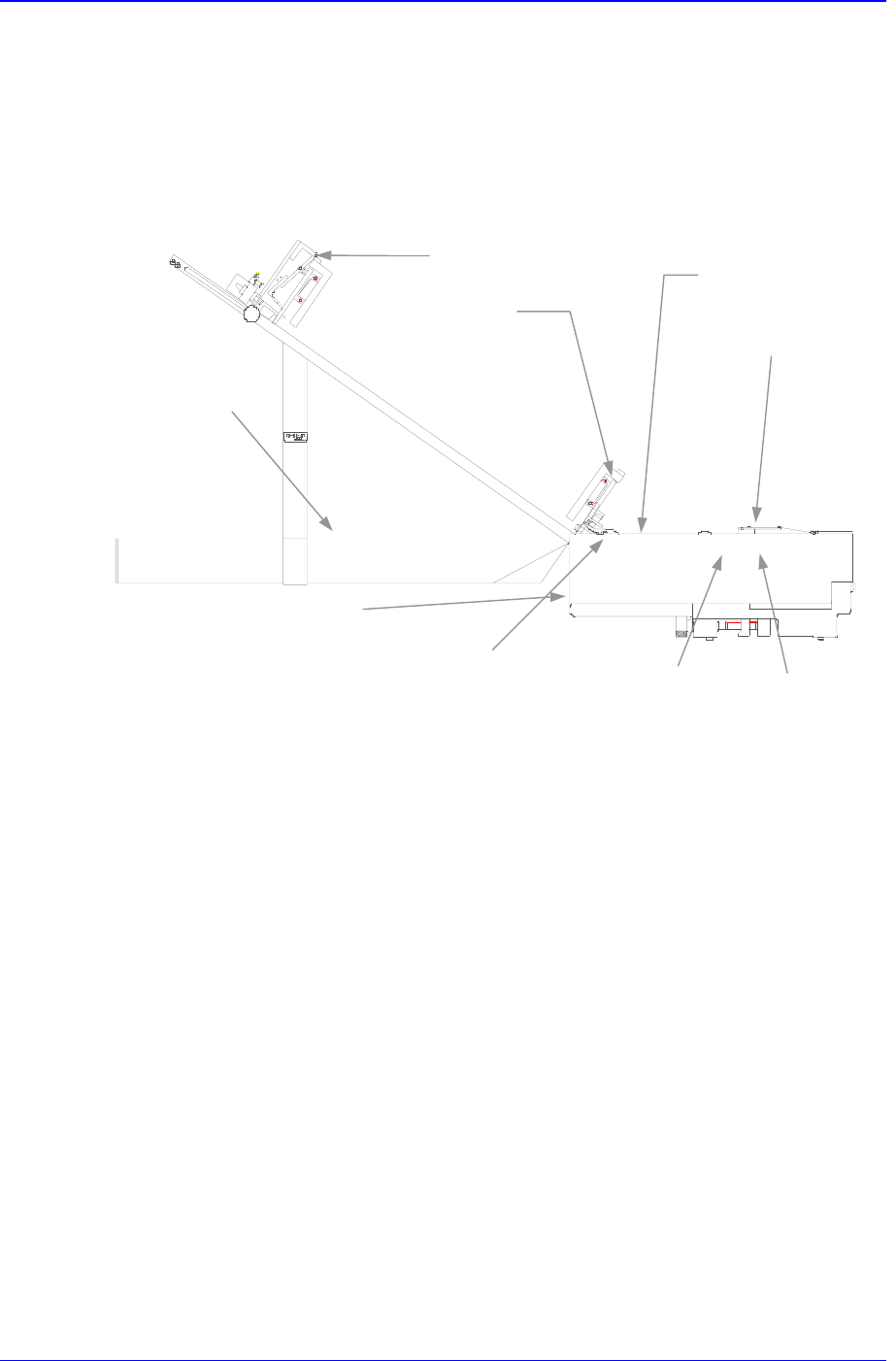

2.15.2. Stack stick feeder

A stack stick feeder is a device for directly transferring packages supplied to the stick

such as SOP, SOJ, PLCC, etc. by the vibration of a vibrator.

Up to 10 sticks (based on PLCC 84 pin) can be supplied continuously if the stack stick

feeder is loaded vertically.

Figure 2-22. Stack Stick Feeder

Component guide

and cover

Component Guide

Dump

Control panel

Stick senso

Motor/Bel

Componen

t sensor

Pickup

point

cover

Ejector

Samsung Component Placer CP-45F(V)/FS Operations Manual

2-36

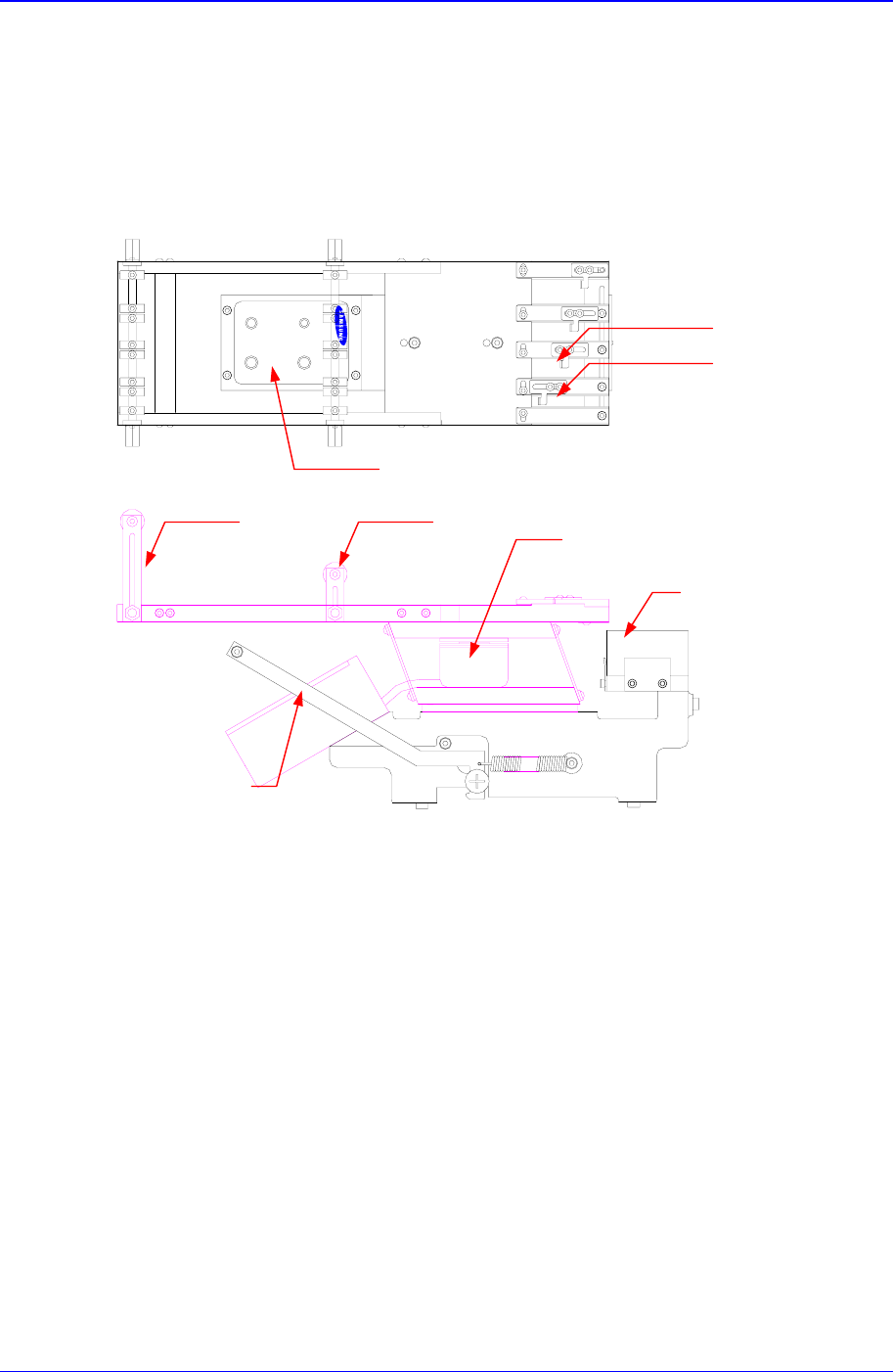

2.15.3. Vibration stick feeder

A multi-stage vibration stick feeder is a device for directly transferring components

supplied to the stick such as SOP, SOJ, PLCC, etc. along the inclined stick by the

vibration of a vibrator. Components are supplied with the stick aligned horizontally, and

up to four lanes are possible.

Figure 2-23. Vibration Stick Feeder

Y-Plate

X-Plate

Control Panel

Lever 2 Lever 1

Vibrator

Dump Box

Handle

Basic Configuration and Name of Each Part

2-37

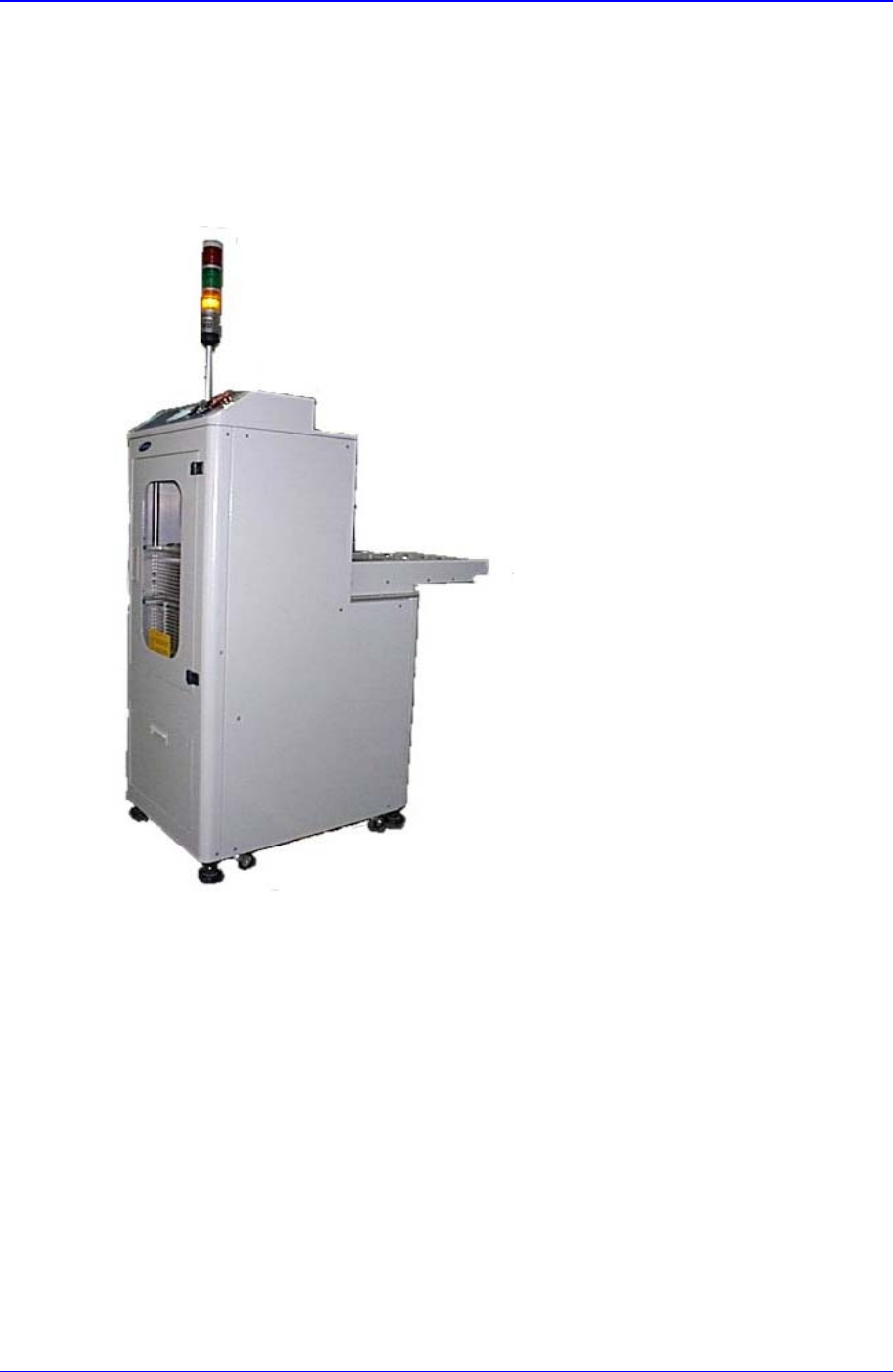

2.15.4. Multi-tray feeder

A 20-stage auto tray feeder is an auxiliary device of the component placer. Up to twenty

components (trays) can be loaded on the magazine rack. It is a device for automatically

supplying trays required by the component placer that ensures operational efficiency and

convenience.

Figure 2-24. Multi-Tray Feeder
