Samsung Component Placer CP-45F(V)/FS Operations Manual

11-98

 <Position Type> combo box

Select the number of fiducial marks. Available numbers of fiducial marks are as

follows.

None: No fiducial mark.

1 Part: 1 fiducial mark for placement point adjustment.

2 Part: 2 fiducial marks for placement point adjustment.

For the rest, please refer to the explanation of the <Fiducial Mark…> button in

<11.1 Board>.

 <Offset…> button

Adds the offset value to the position of placement point. Before executing this

function, the line to add the offset value must be selected in the grid. When this

button is clicked on, the following dialog box is displayed.

 <X> edit box

Set the X offset value.

 <Y> edit box

Set the Y offset value.

 <Z> edit box

Set the Z offset value.

 <R> edit box

Set the R offset value.

 <OK> button

Closes the dialog box and adds the set offset value to the selected line in the grid.

 <Cancel> button

Ignores the set offset value and closes the dialog box

 <Adjust…> button

It is a function used to change the PCB step coordinate or to check and adjust the gap

between the previous fiducial mark coordinate and the current fiducial mark

coordinate to use the previous step coordinate when the backup table is down

accidentally.

 <Insert 1Line> button

PCB Edit Command

11-99

Inserts a new placement point before the currently selected line in the grid.

 <Delete> button

Deletes the placement point in the selected area in the grid.

 <Import…> button

Converts externally created ASCII data into step data for this equipment. When this

button is clicked on, the following dialog box is displayed.

When the “open” button is clicked on after the file containing the data to convert has

been selected, the data in the selected file is displayed as follows.

Figure 11-56 “Import SSA File” dialog box

When the <Import> button is clicked on, the corresponding data is converted into

step data..

 <Export…> button

Samsung Component Placer CP-45F(V)/FS Operations Manual

11-100

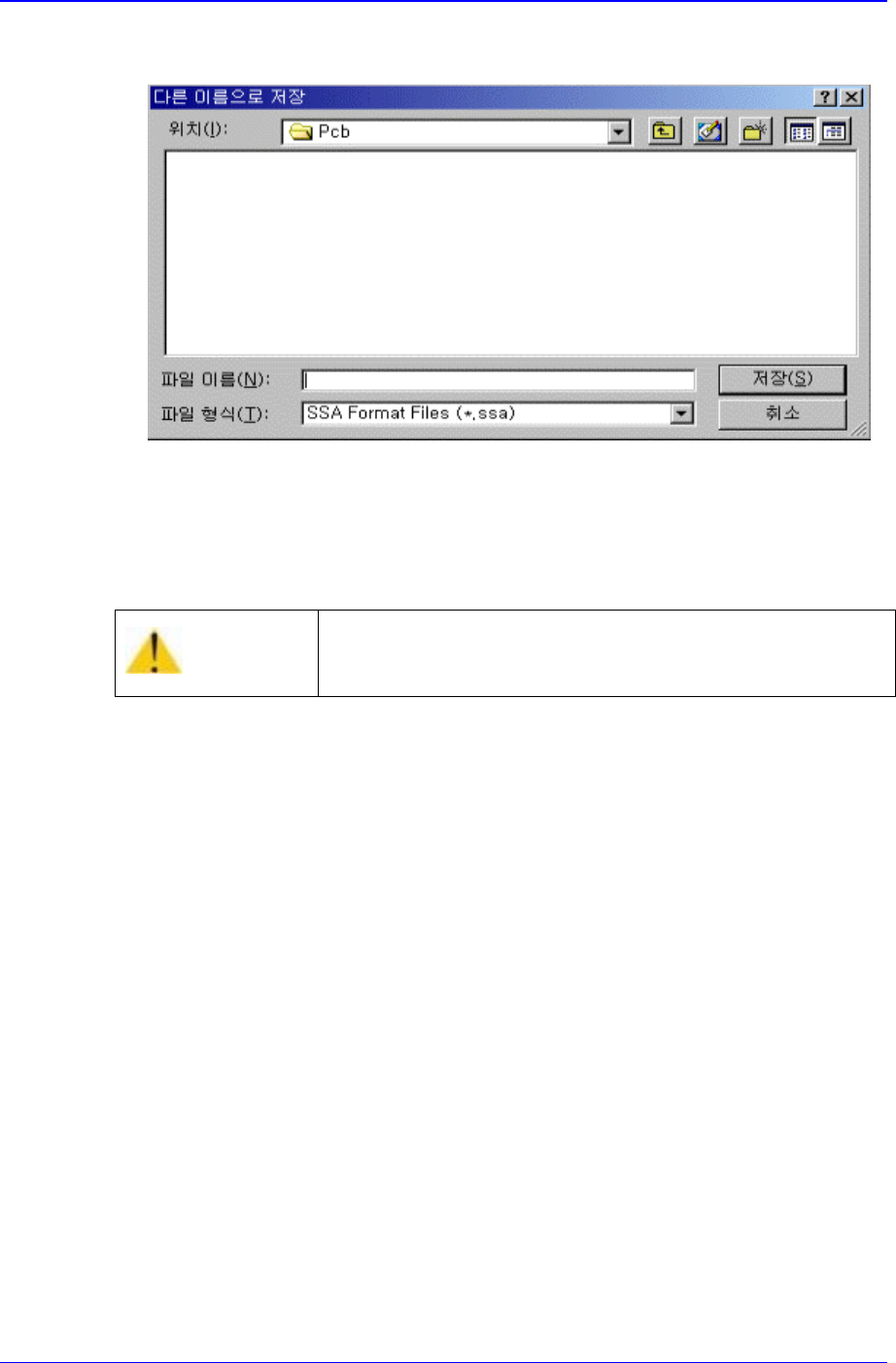

Converts the step data created by this equipment into other format(SSA Format)

ASCII File. When this button is clicked on, the following dialog box is displayed.

When the “Save” button is clicked on after the ASCII File name has been set, converts

the step data into SSA format and saves the data under the set file name.

 <Cancel> button

Cancels the edited data.

Caution

If you move to another screen while editing the “ Step”

dialog box, the edited content is saved automatically.
